LED40W-036-C1100-XX datasheet, PDF

Datasheet> All Categories > LED40W-036-C1100-XX

Preview

LED40W-036-C1100-XX: DescriptionSwitch Mode LED Drivers; File Size760KB，4 Pages; ManufacturerETC2

Download Datasheet View All

LED40W-036-C1100-XX Overview

Switch Mode LED Drivers

Preview

Download Datasheet

View All

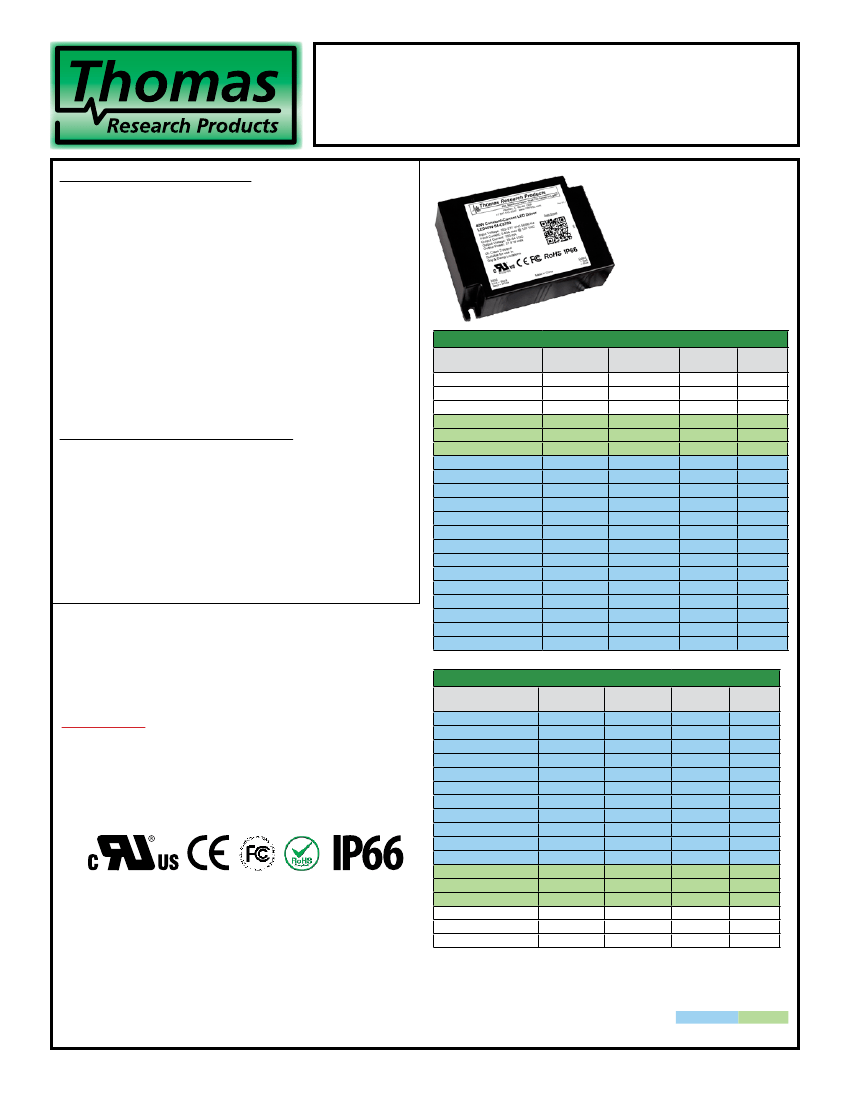

LED-40W Series– Fixed Output and Dimmable

Switch Mode LED Drivers

Constant Current & Constant Voltage with Isolation

Black Magic Thermal Advantage™ Plastic Housing

Electrical Specifications

Input Voltage Range:

Input Over-Voltage:

Frequency:

Power Factor:

Inrush Current:

Input Current:

Maximum Power:

Current Accuracy:

Load Regulation:

THD:

Leakage Current:

Hold Up Time:

Output Protection:

100-277 Vac Nom. (90-305 V Min/Max)

Can endure 320Vac for 48 Hrs, 350Vac for 2 Hrs

50/60 Hz Nom. (47-63 Hz Min/Max)

>0.90 @ full load, 100V through 277V

<20.0 Amps max @ 230 Vac, cold start 25ºC

0.40 Amps max

40W

± 1% Over input line variation

± 3%

< 20% @ full load

400 µA Typical

Half Cycle

Over-Voltage, Over-Current, and

Short Circuit Protection with Auto Recovery

• Total Power: 40 Watts

• Input Voltage: 100-277 Vac

• UL Dry & Damp Location Rated

• IP66 & NEMA4

• High Power Factor

• UL Sign Components

Manual (S.A.M. Models)

Constant Current - Product Specifications

Model Number

LED40W-114-C0350-XX

LED40W-100-C0400-XX

LED40W-089-C0450-XX

LED40W-054-C0700-XX

LED40W-048-C0830-XX

LED40W-045-C0900-XX

LED40W-040-C1000-XX

LED40W-036-C1100-XX

LED40W-030-C1300-XX

LED40W-030-C1400-XX

LED40W-024-C1300-XX

LED40W-024-C1400-XX

LED40W-024-C1670-XX

LED40W-022-C1820-XX

LED40W-018-C2220-XX

LED40W-015-C2680-XX

LED40W-013-C3080-XX

LED40W-012-C3330-XX

LED40W-010-C4000-XX

LED40W-009-C4450-XX

Output Current

(mA ±5%)

350

400

450

700

830

900

1000

1100

1300

1400

1300

1400

1670

1820

2200

2680

3080

3330

4000

4450

Output Voltage

Range

(Vdc)

38-114

33-100

30-89

18-54

16-48

15-45

20-40

12-36

10-30

8-24

7-22

6-18

5-15

4-13

4-12

3-10

3-9

Max Output

Power

(W)

37.8

39.0

31.2

33.6

Max

Efficiency

87%

86%

85%

86%

85%

86%

85%

84%

83%

Environmental Specifications

Maximum Case Temp.

Minimum Starting Temp:

Storage Temperature:

Humidity:

Cooling:

Vibration Frequency:

Sound Rating:

MTBF:

EMC:

90°C

-30ºC

-40ºC to +85ºC

5% to 95%

Convection

5 to 55 Hz/2g, 30 minutes

Class A

482,000 Hours at full load and 40ºC ambient conditions

per MIL-217F Notice 2

FCC 47CFR Part 15 Class B compliant

-XX

indicates dimming options are available. See options below. Blank = fixed current output

Constant Voltage - Product Specifications

Model Number

Output Voltage Output Current

(Vdc ±5%)

Range

(mA)

1113-4450

1000-4000

833-3330

770-3080

670-2680

550-2200

455-1820

418-1670

350-1400

275-1100

250-100

225-900

208-830

175-700

113-450

100-400

88-350

100

114

Max Output

Power

(W)

Max

Efficiency

83%

84%

85%

86%

85%

86%

85%

86%

87%

Ordering Options:

-D:

2-wire dimmable model dims 100% to 10%. Two extra wires included on the output side:

+Purple/-Gray. This model is offers 0-10V & Resistance dimming, compatible with most

quality 0-10V dimmers. See page 3.

3-wire dimmable model dims 100% to 10%. Three extra wires included on the output side:

Yellow/Purple/Gray. This model is suitable for potentiometer dimming. See page 3.

LED40W-009

LED40W-010

LED40W-012

LED40W-013

LED40W-015

LED40W-018

LED40W-022

LED40W-024

LED40W-030

LED40W-036

LED40W-040

•

-D3:

-PD: PWM dimmable version dims 100% to 10%. Two extra wires included on the output side:

+Purple/-Gray. This model is PWM Dimmable via a positive duty cycle, 200Hz to 1KHz,

0-10V Pulse. See page 4.

Sign Components Manual

•

E332160

LED40W-045

LED40W-048

LED40W-054

LED40W-089

LED40W-100

LED40W-114

Note:

LED drivers are designed and intended to operate LED loads only.

Non-LED loading may be outside the specified design limits of our

LED drivers, and therefore cannot be covered by any warranty.

If you desire to use our LED drivers to operate non-LED loads

please contact us to discuss compatibility.

Specifications subject to change without notice.

•

Indicates S.A.M.

Class 2:

US/Canada

US Only

Rev 9-11-15

Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
