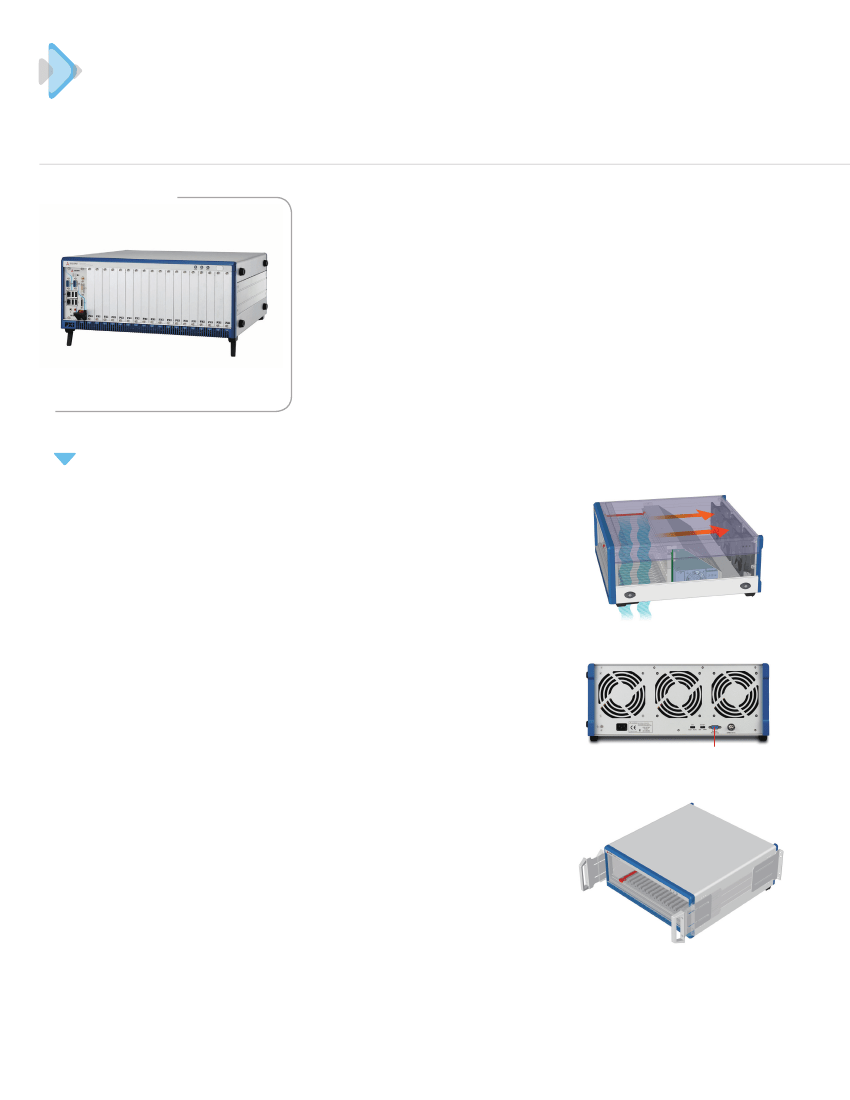

PXIS-2719A
19-Slot 3U PXI Chassis with AC
Introduction
The ADLINK PXIS-2719A is a 3U PXI chassis with advanced features, including:
• Innovative
cooling solution, delivering efficient and uniform heat dissipation
• Superior
stability within an extended temperature range
• Intelligent
chassis management providing dynamic monitoring and management of fan speed, system voltage,
and internal temperature
• Remote
management via standard RS-232 monitoring port
The PXIS-2719A is compliant with PXI and CompactPCI specifications and provides one system slot and eighteen
peripheral slots. It is designed to meet or exceed application requirements with maximum slot capacity, extended oper-
ating temperature range, and superior heat dissipation in a lightweight and robust design.
The PXIS-2719A includes an Industrial-grade 600 W AC power supply to provide ample reliable power to the entire
system. The PXIS-2719A is designed with an external 10 MHz reference clock input, front panel LED indicators, and
easy-access PXI/CompactPCI slots with card guides for convenient installation and use. With innovative features and
robust design, the PXIS-2719A is a clear leader for PXI platform-based test and measurement applications.
Features
PXI Hardware Specification Rev. 2.2 compliant
Rack-mountable 19-slot PXI chassis with one system slot
and eighteen PXI/CompactPCI peripheral slots
■
Advanced forced-cooling mechanism for efficient and
uniform heat dissipation
■
External 10 MHz reference clock input via BNC connector
■
0°C to 55°C extended operating temperature range
■
Intelligent chassis monitoring/control
• Automatic fan speed control
• Chassis status monitoring and exporting
• Remote chassis power on/off control
■
600 W industrial-grade AC power supply
■
Power, temperature and fan monitoring LEDs
■
■
Highlights
■ Innovative
Cooling Mechanism
The ADLINK PXIS-2719A features an innovative design
for heat dissipation. The cooling fans are placed in the rear
section of the chassis where cool air is drawn in through
apertures on the bottom and exhausted through the back.
This new design provides uniform airflow for each PXI slot
and exceptional cooling capability. When the chassis is in-
stalled, the design minimizes intake of hot air from the rear
where other devices exhaust, while maintaining a steady
temperature inside the chassis.
■ Intelligent
Chassis Management
The PXIS-2719A has a built-in control board monitors and
manages chassis status, including internal temperature, fan
speed, and voltages. Using the RS-232 monitoring port,
the chassis status information can be exported to another
computer for remote management. The control board can
also accept commands from the remote system to allow
remote power on/off and fan speed control of the PXIS-
2719A chassis.
■ Flexible
Rack-mount Design
An optional rack-mount kit provides flexible installation of
the PXIS-2719A. By adjusting the position of rack-mount
bracket, the PXIS-2719A can be recessed in a cabinet rack
up to 10 centimeters to accommodate external mechanical
parts on the front side, such as complicated connectors/
wires and mass interconnect modules.
Remote Monitoring Port
PXI Chassis
Specifications
Power Supply
■
Recommended System Controller
Physical
■
AC Input
Number of slots: 19
(1 system slot + 18 peripheral slots)
Dimensions: 444 mm (W) x 178 mm (H) x 455 mm (D)
(17.3” x 6.9” x 17.7”)
Weight: 13.4 kg (29.5 lbs)
PXI-3980/3950/3920
PXIS-2719A
√
• Input
voltage range: 85 to 264 V
AC
full range
• Input
voltage frequency: 47 to 63 Hz
■
■
Ordering Information
■
PXIS-2719A
3U 19-Slot Smart PXI Chassis with 600 W AC
Power Supply
■ PXIS-2719A Rack-mount Kit
Flexible Rack-mount Kit for PXIS-2719A
DC Output
■
• Maximum
total usable power is 600 W
VDC
Maximum
Load
Maximum Ripple
Regulation
& Noise
Operating Environment
■
■
Ambient temperature: 0˚C to 55˚C (32˚F to 131˚F)
Relative humidity: 10% to 90%, non-condensing
+5 V
+12 V
+3.3 V
-12 V*
45.0 A
15.0 A
42.0 A
4.75 A
±3%
±3%
±3%
±3%
20 mV
50 mV
20 mV
50 mV
Storage Environment
■
■
Ambient temperature: -20˚C to 70˚C (-4˚F to 158˚F)
Relative humidity: 10% to 90%, non-condensing
Cooling
■
■
Shock and Vibration
■
■
Fans: 3 sets of 185.9 CFM fans
Per-slot cooling capacity: 25 W
(verified by 55°C chamber test)
Functional shock: 30 G, half-sine, 11 ms pulse duration
Random Vibration
• Operating:
5 to 500 Hz, 0.31 G
RMS
, 3 axes
• Non-operating:
5 to 500 Hz, 2.46 G
RMS
, 3 axes
Emissions Compliance
■
■
EN 61326-1
FCC Class A
CE Compliance
■
■
Safety: EN 61010-1
Immunity: EN 61326-1
Updated January 29, 2013.
©2013
ADLINK Technology, Inc. All Rights Reserved. All specifications are subject to change without further notice.
