O-10.000000M-AQOE5032-50-5.0-C-3/T/TR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> O-10.000000M-AQOE5032-50-5.0-C-3/T/TR

O-10.000000M-AQOE5032-50-5.0-C-3/T/TR: DescriptionCMOS Output Clock Oscillator, 10MHz Nom, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size261KB，1 Pages; ManufacturerAuris; Environmental Compliance

Download Datasheet Parametric View All

O-10.000000M-AQOE5032-50-5.0-C-3/T/TR Overview

CMOS Output Clock Oscillator, 10MHz Nom, ROHS COMPLIANT, SMD, 4 PIN

O-10.000000M-AQOE5032-50-5.0-C-3/T/TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1272759889
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	8 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	AQOE7050
Installation features	SURFACE MOUNT
Nominal operating frequency	10 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	30 pF
physical size	7.0mm x 5.0mm x 1.1mm
longest rise time	8 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	60/40 %

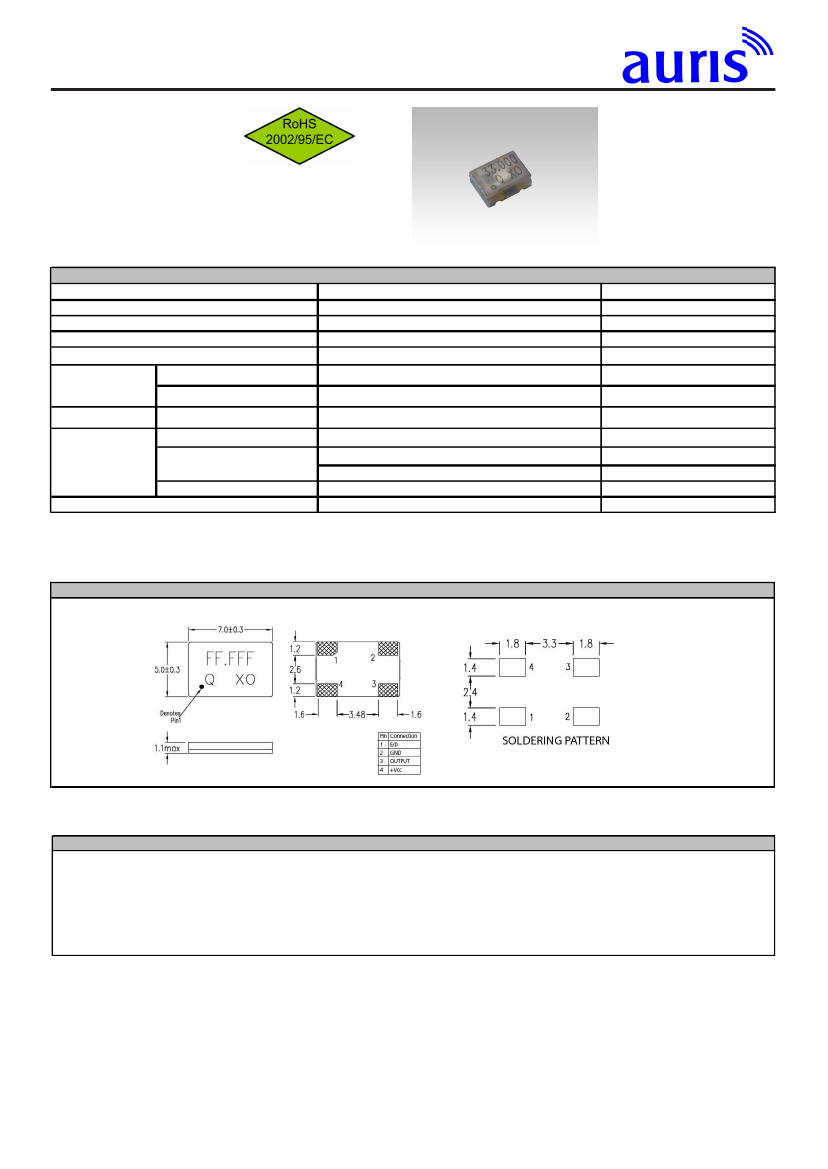

O-10.000000M-AQOE5032-50-5.0-C-3/T/TR Preview

Oscillator SMD, clock-type

AQOE7050

Features:

- all Quartz

- Low cost to performance

- Excellent in portable PC and telecommunication

- Tristate or power down available

Specifications

Frequency range

Frequency stability *

Operating temperature

Storage temperature

Input

Voltage

Current

Output symmetry

Output

Rise and fall time

Logic "0" level

Logic "1" level

Output load

AQOE7050

2MHz ~ 48MHz

±50ppm ~ ±100ppm

0°C ~ +70°C - -20°C ~ +70°C

-55°C ~ +125°C

3.3V (+/-10%), 5.0V (+/-10%)

25mA Typ.

40% ~ 60%

8 ns

CMOS, HCMOS, TTL,CMOS/TTL compatable

10%VDD

90%VDD

CMOS, 15 pF

Remarks

Please specify

Max

Please specify

Max

Min

Please specify

* Inclusive of ini tial frequency tolerance at 25°C, operating temperature range, supply voltage change, load variation and 1st year aging.

Drawing

AQOE7050

Dimensions in mm

Order key

Part

O=Oscillator

- 10.000000M - AQOE7050

Frequency

M=MHz

Type/Package

AQOE=Quartz Oscillator all Quartz

AQOE5032=SMD 7,0x5,0

- 50

Tolerance

±ppm

- 3.3

Voltage

3.3=3.3Volt

5.0=5.0Volt

-D

Temperature

0°C ~ +70°C

Load

blank = 15pF

3 = 30pF

5 = 50pF

Option

T=Tristate

P = Power down

Packaging

TR = tape + reeled

B= -10°C ~ +60°C

C= -10°C ~ +70°C

D= -20°C ~ +70°C

auris-GmbH

office@auris-gmbh.de www.auris-gmbh.de

All specifications are subject to change without notice.

4.7

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
