144896: DescriptionTMC-S 37-SMD-6,3-BA8; File Size109KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet View All

144896 Overview

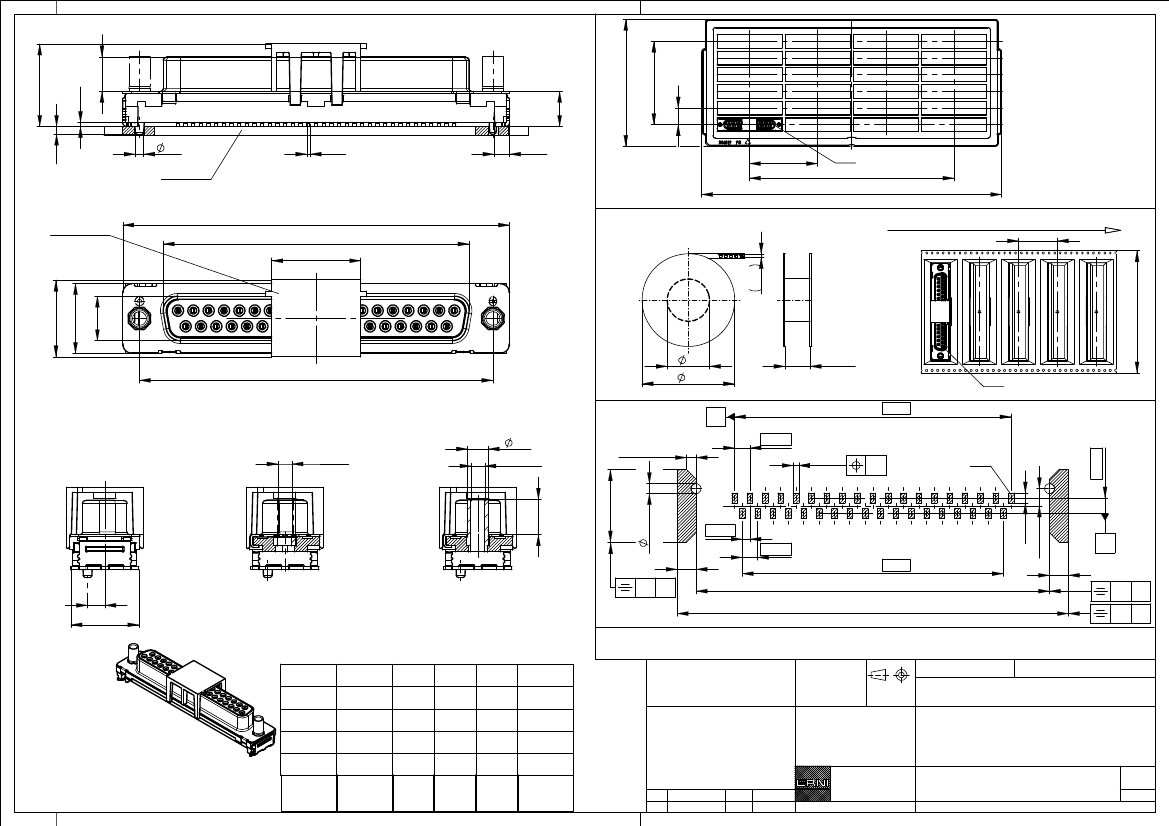

TMC-S 37-SMD-6,3-BA8

Preview

Download Datasheet

View All

Verpackt in Tray

Verpackungseinheit 24 St.

6,3

-0,25

5 x 18 = 90

max. 138

tray packaging

packaging unit 24 pcs

14,8

0,7

6,3

1,4

1,5

0,6

2,8

73,5

pcb

Leiterplatte

Pin 1

3 x 73,5 = 220,5

hood

Ansaughaube

69,5

-0,4

+0,2

max. 325

Sonstige Angaben siehe Zeichnung 204628 /

Additional indications according to drawing 204628

54,95

-0,2

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 120 Stück -

Packaging unit: 120 pcs

Abspulrichtung -

Reel off Direction

12,6

±0,3

17,1

-0,2

13,8

150

63,5

±0,1

88,5

ohne /

without

thread depth max. 5,0 mm

max. Einschraubtiefe 5,0 mm

Gewinde

/ thread

/ #4-40

Mutter /

nut

max. Einschraubtiefe 5,5 mm

Bolzen /

bolt

thread depth max. 5,5 mm

3,7

Pin 1

Sonstige Angaben siehe Zeichnung 204654 /

Additional indications according to drawing 204654

18 x 2,76 = 49,68

Layoutvorschlag:

330

recommended layout:

1,7 x 45° (4x)

2,76

(37x)

0,1

2,84

3,1

±0,05

1,8

3,4

0,1

Pin 1

Gewinde

/ thread

/ #4-40

1,8

±0,05

Bohrung

/ hole

6,4

1,38

2,76

3,4

17 x 2,76 = 46,92

63,5

±0,05

70,3

±0,2

3,1

12,2

Beschriftung nach Bedruckungsvorschrift 174538

0,1

Part marking according to specification 174538

M 1:1

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications please see the production documentation

Proprietary notice pursuant to ISO 16016 to be observed.

194285

194286

194287

194288

194289

Ident-Nr.

part-no.

tape &reel

174392

164032

164028

164024

164020

Ident.-Nr.

#4-40

ohne

without

Mutter

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

Anschlussbereich verzinnt

terminal area tin plating

coplanarity area of termination

≤

0,1 mm

Anforderungsstufe: 2

Koplanarität der Anschlüsse

≤

0,1 mm

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

12.04.2010

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-S 37-SMD-6,3-BA8

TMC-S 37-SMD-6,3-type 8

class: 2

part-no.

tray

thread

Bolzen Bemerkung

www.ERNI.com

Class

bolt

remark

144896

TMCS
