52-PV3H2H0NN311_15 datasheet, PDF

Datasheet> All Categories > 52-PV3H2H0NN311_15

Preview

52-PV3H2H0NN311_15: DescriptionALL DIMENSIONS IN MM [INCH]; File Size214KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

52-PV3H2H0NN311_15 Overview

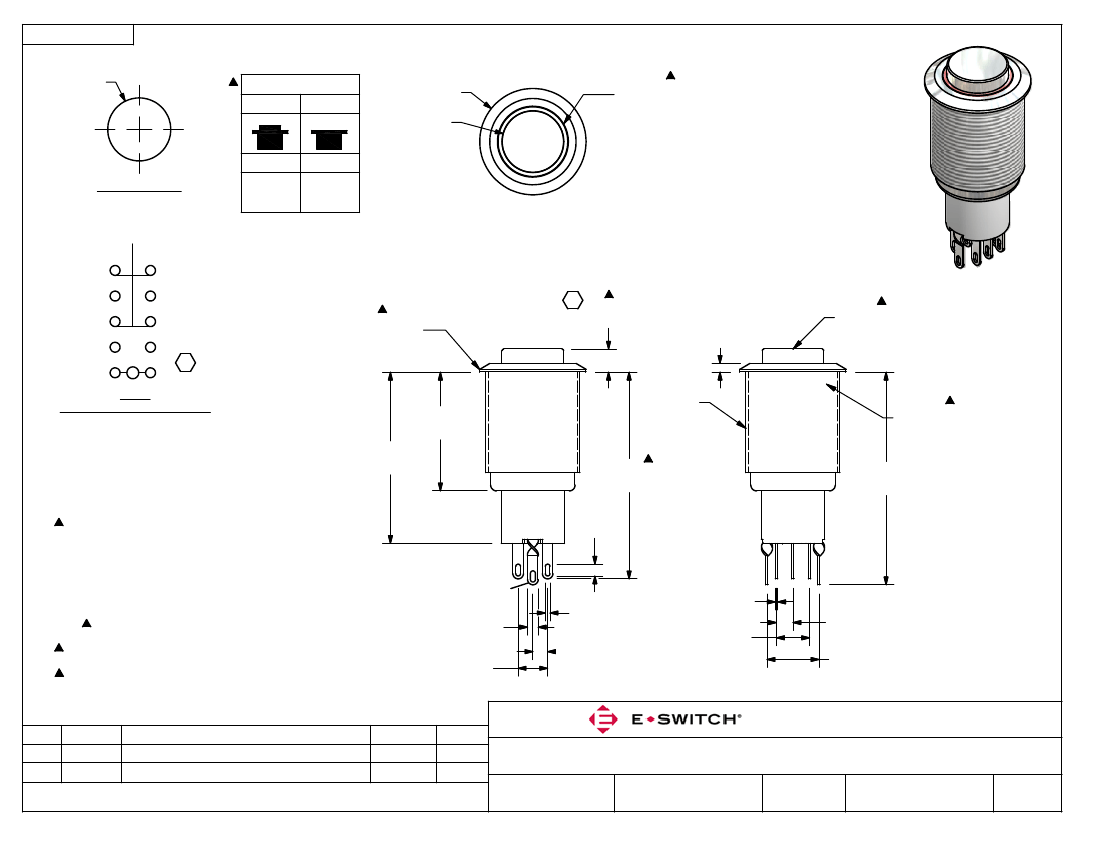

ALL DIMENSIONS IN MM [INCH]

Preview

Download Datasheet

View All

SHEET 1 OF 1

16.00

[.630 in]

SWITCH FUNCTION

POS. 1

POS. 2

18.00

[.709 in]

RING ILLUMINATION

COLOR: RED

[.409 in]

PANEL CUTOUT

MAX. PANEL THICKNESS

14.0mm [.551]

1-3, 4-6

(ON)

1-2, 4-5

10.40

(ON) = MOMENTARY

BODY FINISH

NICKEL

3.90

.50

[.154

.020

in]

1.50

[.059 in]

ACTUATOR FINISH

NICKEL

DPDT

CONTACT CONFIGURATION

M16x1.0

[.791

.039

in]

20.10

1.00

NOTE 14

HARDWARE SUPPLIED

29.00

1.00

NOTE:

[1.142

.039

in]

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. CONTACT MATERIAL: SILVER

5. RATING: 2A 48VDC

6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES

AT FULL LOAD.

7. INSULATION RESISTANCE: 1,000 MΩ MIN.

8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE

(+)

9. CONTACT RESISTANCE: 50mΩ MAX. @ 1A 12VDC

10. OPERATING TEMP.: -20°C to 55°C

1.80

11. DENOTES CRITICAL PARAMETER.

[.071 in]

12. LAMP VOLTAGE: 1.8V

13. ILLUMINATION COLOR: RED

14. HARDWARE SUPPLIED: O-RING AND HEXNUT

5.00

15. INGRESS RATING: IP40

[.197 in]

16. 2002/95/EC (ROHS) COMPLIANT

35.00

1.00

[1.378

.039

in]

2.00

[.079 in]

(-)

36.00

1.00

[1.417

.039

in]

.80

[.031 in]

2.50

[.098 in]

(+)

.40

[.016 in]

5.60

[.220 in]

2.80

[.110 in]

8.80

[.346 in]

REV

20445

20433

PCR NO

CORRECT CONTACT CONFIG./ADD TOL.

UPDATE AND CONVERT

DESCRIPTION

02/01/12

01/27/12

DATE

BMA

TITLE

SCALE

PV3H2H0NN-311

1.5:1

DATE

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

1/27/2012

BMA

DWG

52-PV3H2H0NN311

REV
