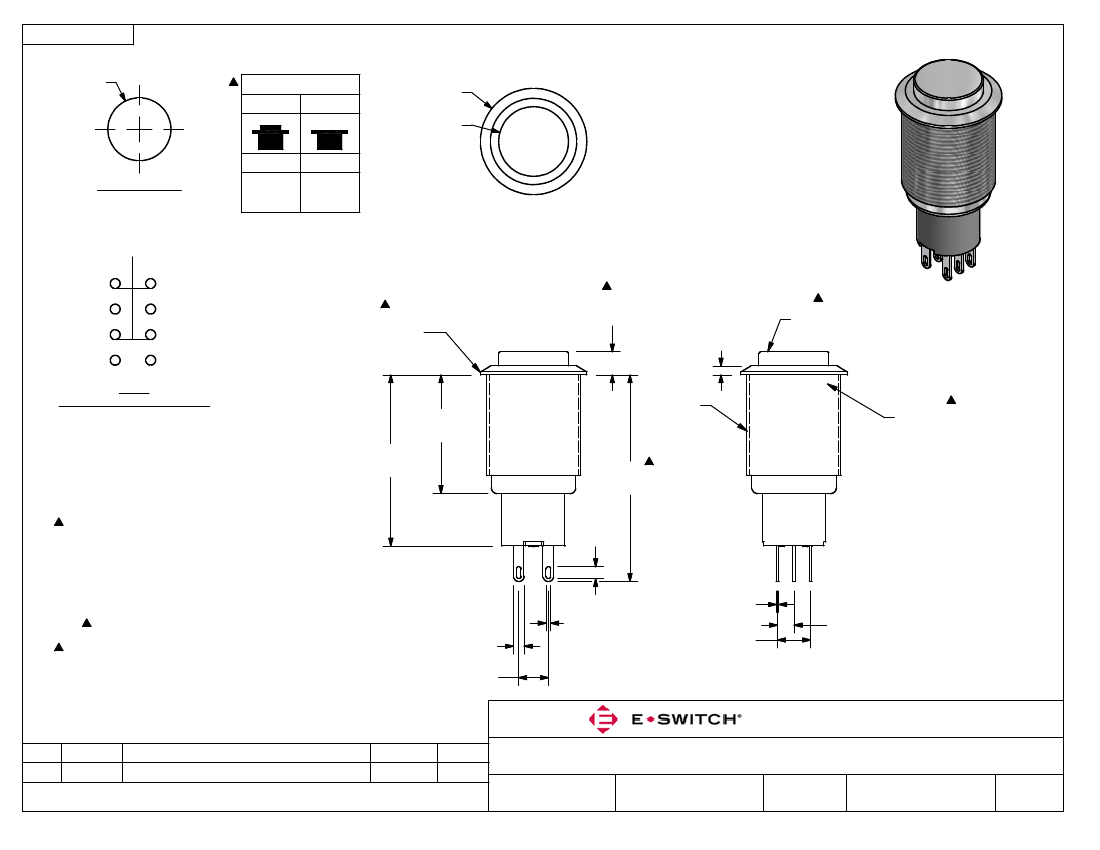

SHEET 1 OF 1
n
16.00
n
18.00
[.709 in]
n
11.80
[.465 in]
[.630 in]
SWITCH FUNCTION
POS. 1
POS. 2
ON
PANEL CUTOUT
MAX. PANEL THICKNESS
14.0mm [.551]
1-3, 4-6
(ON)
1-2, 4-5
(ON) = MOMENTARY
1
1
4
4
3
2
6
5
BODY FINISH
NICKEL
3.90
`
.50
[.154
`
.020
in]
1.50
[.059 in]
ACTUATOR FINISH
NICKEL
DPDT
CONTACT CONFIGURATION
20.10
`
1.00
[.791
`
.039
in]
29.00
`
1.00
NOTE:
[1.142
`
.039
in]
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: SILVER
5. RATING: 2A 48VDC
6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 M MIN.
8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE
9. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC
10. OPERATING TEMP.: -20°C to 55°C
11. DENOTES CRITICAL PARAMETER.
12. HARDWARE SUPPLIED: O-RING AND HEXNUT
13. INGRESS RATING: IP40
14. 2002/95/EC (ROHS) COMPLIANT
M16x1.0
NOTE 12
HARDWARE SUPPLIED
35.00
`
1.00
[1.378
`
.039
in]
2.00
[.079 in]
3
6
.40
[.016 in]
5.60
[.220 in]
5
4
6
.80
[.031 in]
1.80
[.071 in]
5.00
[.197 in]
2.80
[.110 in]
A
REV
20944
PCR NO
RELEASE FOR PRODUCTION
DESCRIPTION
12/27/12
DATE
EBP
BY
TITLE
SCALE
PV3H2H0NN
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
12/27/2012
DR
EBP
DWG
52-PV3H2H0NN
REV
A
