Only One Name Means ProTek’Tion™

PMMAD Series

ultRA low cAPAcitAnce Multi-line SteeRing DioDe ARRAy

DeScRiPtion

The PMMAD Series are a low distortion steering diodes. These devices are intended for use in high frequency analog

or digital data I/O ports for protection against Electrostatic Discharge (ESD) and Electrical Fast Transients (EFT). The

PMMAD Series is connected between rail-to-rail voltage bus or rail-to-ground for clamping and diverting overvoltage

transients for the protection of sensitive network interface circuits.

This series provides low capacitance, which insures signal integrity up to 900MHz, while complete isolation between

adjacent diodes keeps cross-talk to a minimum. The PMMAD Series is available in a SO-14 package and meets the IEC

61000-4-2, IEC 61000-4-4 and IEC 61000-4-5 requirements.

So-14 PAckAge

FeAtuReS

• Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV

• Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns

• Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2(Line-

Gnd) & Level 3(Line-Line)

• 500 Milliwatt Continuous Power Dissipation

• Low Insertion Loss & Cross-Talk

• ESD Protection > 25 kilovolts

• Protects 8 I/O Lines

• Working Voltage > 50 Volts

• Low Leakage Current < 0.1µA

• Ultra Low Capacitance: 5pF per Diode

• RoHS Compliant

• REACH Compliant

APPlicAtionS

•

High Frequency Data Lines

RS-232 & RS-422 Interface Networks

Ethernet 10/100 Base T

Computer I/O Ports

MechAnicAl chARActeRiSticS

•

Molded JEDEC SO-14 Package

Approximate Weight: 0.15 grams

Lead-Free Pure-Tin Plating (Annealed)

Solder Reflow Temperature:

Pure-Tin - Sn, 100: 260-270°C

• 16mm Tape and Reel Per EIA Standard 481

• Flammability Rating UL 94V-0

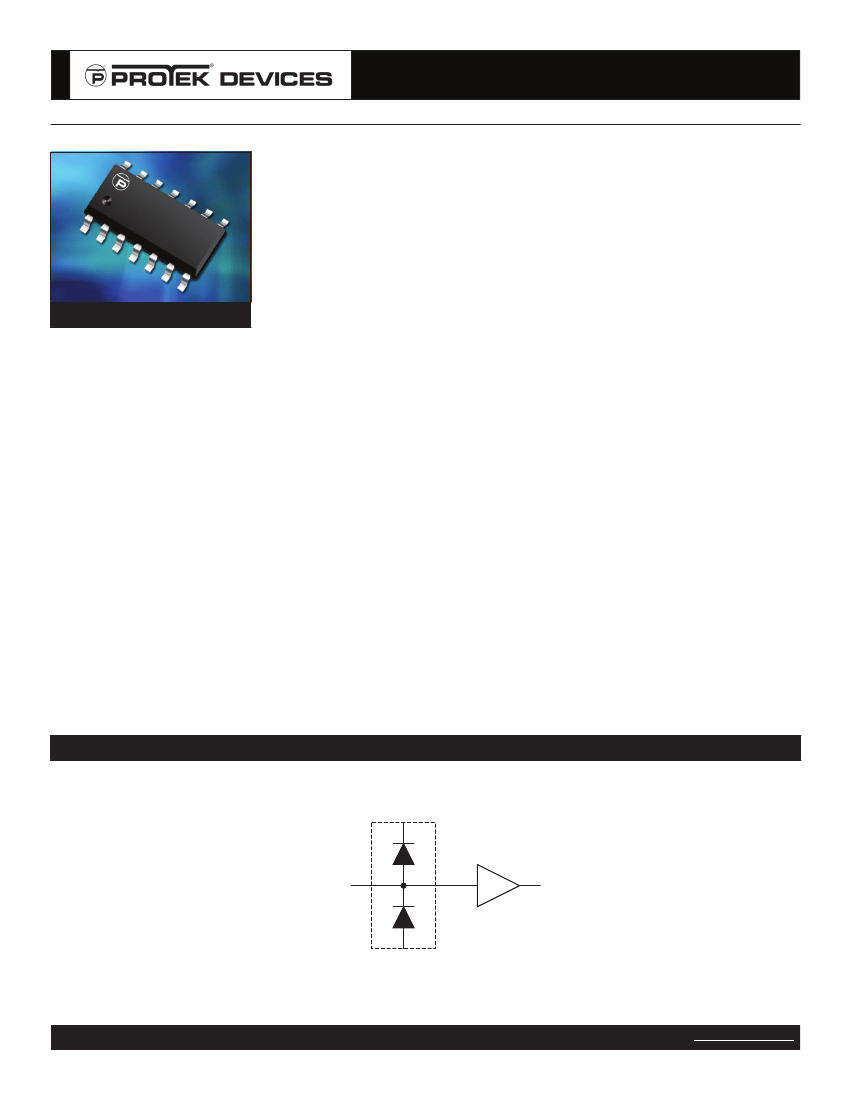

ciRcuit DiAgRAM

I/O PORT

GND OR (-)

05089.R12 9/12

Page 1

www.protekdevices.com

PMMAD_12 Related Products

	PMMAD_12	PMMAD1103	PMMAD1106	PMMAD1109
Description	UNIDIRECTIONAL, 8 ELEMENT, SILICON, TVS DIODE	UNIDIRECTIONAL, 8 ELEMENT, SILICON, TVS DIODE	UNIDIRECTIONAL, 8 ELEMENT, SILICON, TVS DIODE	UNIDIRECTIONAL, 8 ELEMENT, SILICON, TVS DIODE
Is it lead-free?	-	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	-	incompatible	incompatible	incompatible
Maker	-	ProTek Devices	ProTek Devices	ProTek Devices
Parts packaging code	-	SOD	SOD	SOD
package instruction	-	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
Contacts	-	14	14	14
Reach Compliance Code	-	compli	compli	compli
ECCN code	-	EAR99	EAR99	EAR99
Other features	-	ULTRA LOW CAPACITANCE	ULTRA LOW CAPACITANCE	ULTRA LOW CAPACITANCE
Configuration	-	COMPLEX	COMMON ANODE, 8 ELEMENTS	SEPARATE, 7 ELEMENTS
Diode component materials	-	SILICON	SILICON	SILICON
Diode type	-	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
Maximum forward voltage (VF)	-	1.2 V	1.2 V	1.2 V
JESD-30 code	-	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
JESD-609 code	-	e0	e0	e0
Humidity sensitivity level	-	1	1	1
Number of components	-	16	8	7
Number of terminals	-	14	14	14
Maximum operating temperature	-	150 °C	150 °C	150 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	-	245	245	245
polarity	-	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	-	0.5 W	0.5 W	0.5 W
Certification status	-	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	-	50 V	50 V	50 V
Maximum reverse current	-	0.0001 µA	0.0001 µA	0.0001 µA
Reverse test voltage	-	40 V	40 V	40 V
surface mount	-	YES	YES	YES
technology	-	AVALANCHE	AVALANCHE	AVALANCHE
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	-	GULL WING	GULL WING	GULL WING
Terminal location	-	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
