Power line chokes
Current-compensated D core double chokes
250 V AC, 0.4 … 2.2 A, 3.3 … 100 mH, +40 °C
Series/Type:
Date:
B82732R/W
June 2013
a~í~=pÜÉÉí
EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
Power line chokes
Current-compensated D core double chokes
Rated voltage 250 V AC
Rated current 0.4 ... 2.2 A (+40 °C)
Rated inductance 3.3 ... 100 mH

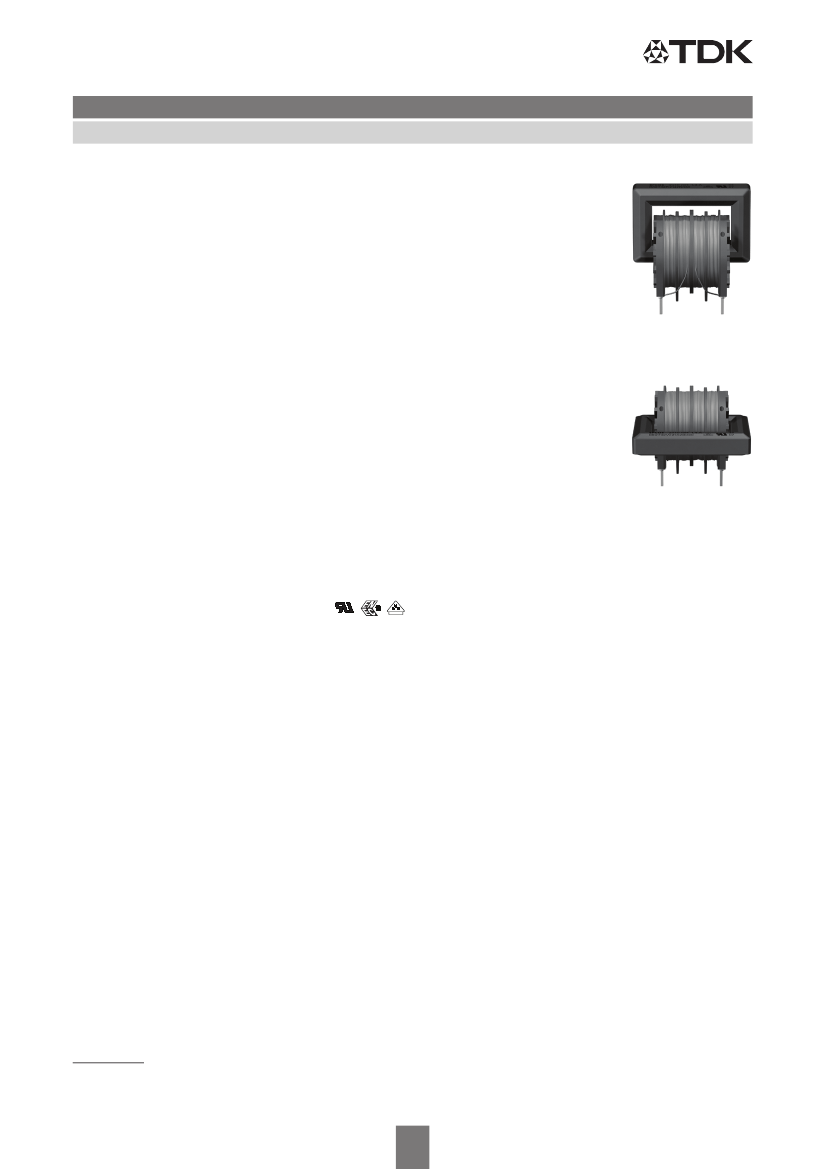

Construction
■
■
■
■
■
■
B82732R/W
Current-compensated double choke
Closed rectangular ferrite core
Closed polycarbonate coil former (UL 94 V-0)
Without encapsulation
2-section winding
Clearance and creepage distances
t
3 mm
B82732R
Features
■
High resonance frequency due to 2-section winding
■
Approx. 1% stray inductance for symmetrical
■
■
■
■
■
■
■
■
interference suppression
Low leakage due to closed core shape
High pulse strength
Low whirring noise
Suitable for wave soldering
Design complies with EN 60938-2 (VDE 0565-2) and UL 1283
UL
1)
and ENEC (VDE) approvals
Recyclable owing to omission of encapsulation and glue
RoHS-compatible
B82732W
Applications
■
Suppression of common-mode interferences
■
Switch-mode power applications
■
Electronic ballasts in lamps
Terminals
■
■
■
■
■
Base material CuNi18Zn20
Layer composition Ni, Sn
Hot-dipped
Pins 0.6
u
0.6 (mm)
Lead spacing 10
u
12.5 (mm)
Marking
Manufacturer, rated inductance, rated current,
ordering code, approval symbols, date of manufacture (WWYY)
Delivery mode
Blister tray in cardboard box
1) UL approval with 300 V AC.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
06/13
Power line chokes
Current-compensated D core double chokes

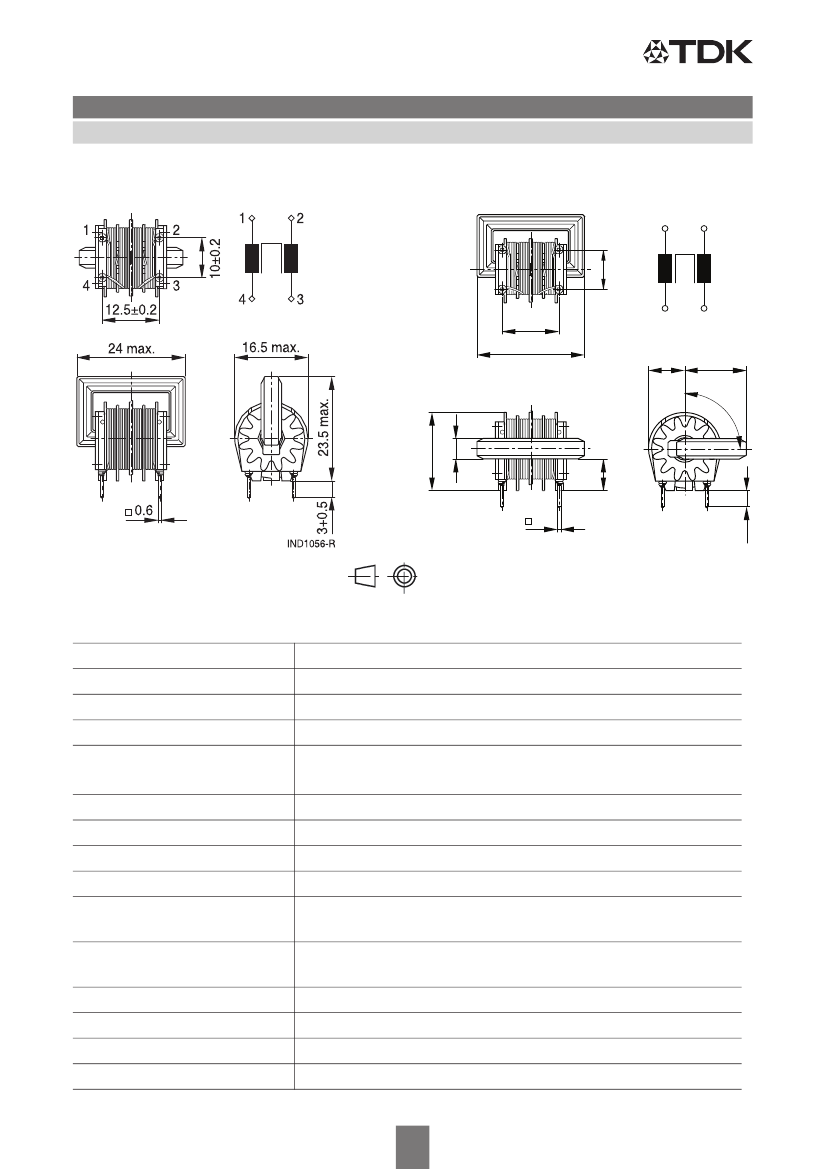

Dimensional drawings and pin configuration
Vertical version (B82732R)
Horizontal version (B82732W)
1
2
B82732R/W
1
2
4
12.5±0.2
24 max.
3
10±0.2
4
3
8.3 max. 14.8 max.
90
17.3 max.
˚
±5
˚
5 max.
4.8 min.
0.6
IND0287-U
Tolerances to ISO 2768-cL unless
otherwise noted. Dimensions in mm.
Technical data and measuring conditions
Rated voltage V
R
Test voltage V
test
Rated temperature T
R
Rated current I
R
Rated inductance L
R
Inductance tolerance
Inductance decrease
'L/L
0
Stray inductance L
stray,typ
DC resistance R
typ
Solderability (lead-free)
Resistance to soldering heat
(wave soldering)
Climatic category
Weight
Approvals
250 V AC (50/60 Hz)
1500 V AC, 2 s (line/line)
+40
qC
Referred to 50 Hz and rated temperature
Measured with Agilent 4284A at 0.1 mA, +20 °C, 10 kHz.
Inductance is specified per winding.
–30/+50% at +20 °C
< 10% at DC magnetic bias with I
R
, +20 °C
Measured with Agilent 4284A at 10 kHz, 5 mA, +20 °C, typ. val.
Measured at +20 °C, typical values, specified per winding
Sn96.5Ag3.0Cu0.5: +(245
r5)
°C, (3
r0.3)
s
Wetting of soldering area
t
95% (to IEC 60068-2-20, test Ta)
+(260
r5)
°C, (10
r1)
s
(to IEC 60068-2-20, test Tb)
40/125/56 (to IEC 60068-1)
Approx. 11 g
EN 60938-2, UL 1283
Storage conditions (packaged) –25 °C … +40 °C,
d
75% RH
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
06/13
3+0.5
Power line chokes
Current-compensated D core double chokes
Characteristics and ordering codes
I
R
A
0.4
0.6
0.7
0.9
1.0
1.1
1.4
1.7
2.2
L
R
mH
100
47
39
27
22
15
10
6.8
3.3
L
stray,typ
PH
850
400
330
230
165
125
85
55
27
R
typ
m:
3000
1400
1100
750
580
440
300
190
110
Ordering code
Vertical version
B82732R2401B030
B82732R2601B030
B82732R2701B030
B82732R2901B030
B82732R2102B030
B82732R2112B030
B82732R2142B030
B82732R2172B030
B82732R2222B030
Horizontal version
B82732R/W
Approvals
B82732W2401B030
u
B82732W2601B030
u
B82732W2701B030
u
B82732W2901B030
u
B82732W2102B030
u
B82732W2112B030
u
B82732W2142B030
u
B82732W2172B030
u
B82732W2222B030
u
u
u
u
u
u
u
u
u
u
u
= approval granted

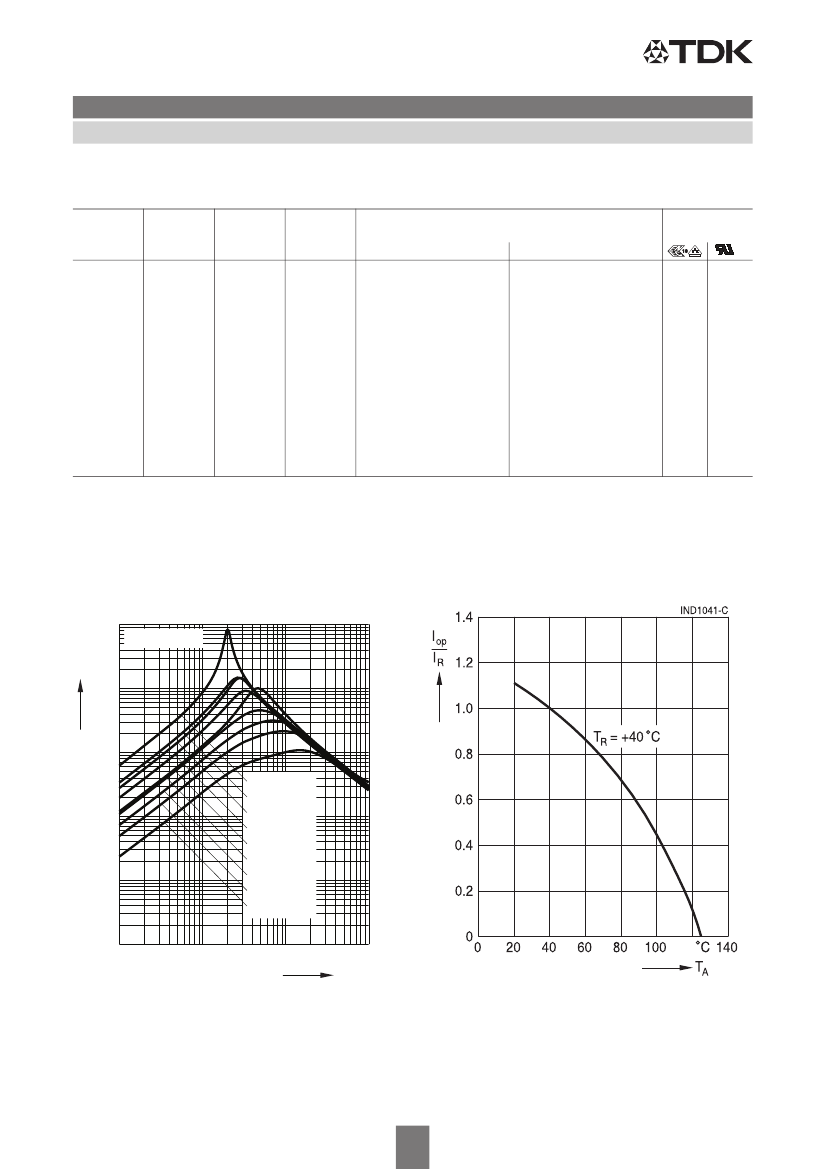

Impedance |Z| versus frequency f
measured with windings in parallel at +20 °C
typical values
10
6
IND0291-4-E
Current derating I
op
/I
R
versus ambient temperature T
A
Ω
|Z |
10
5
B82732R/W
10
4
2401B030
2601B030
2701B030
2901B030
2102B030
2112B030
2142B030
2172B030
2222B030
10
5
10
6
Hz 10
7
f
10
3
10
2
10
1 4
10
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
06/13
Cautions and warnings
Current-compensated ring core double chokes
■
Please note the recommendations in our Inductors data book (latest edition) and in the data
sheets.
– Particular attention should be paid to the derating curves given there. Derating must be applied
in case the ambient temperature in the application exceeds the rated temperature of the
component.
– Ensure the operation temperature (which is the sum of the ambient temperature and the
temperature rise caused by losses / self-heating) of the component in the application does not
exceed the maximum value specified in the climatic category.
– The soldering conditions should also be observed. Temperatures quoted in relation to wave
soldering refer to the pin, not the housing.
■
If the components are to be washed varnished it is necessary to check whether the washing
varnish agent that is used has a negative effect on the wire insulation, any plastics that are used,
or on glued joints. In particular, it is possible for washing varnish agent residues to have a
negative effect in the long-term on wire insulation.
Washing processes may damage the product due to the possible static or cyclic mechanical
loads (e.g. ultrasonic cleaning). They may cause cracks to develop on the product and its parts,
which might lead to reduced reliability or lifetime.
■
The following points must be observed if the components are potted in customer applications:
– Many potting materials shrink as they harden. They therefore exert a pressure on the plastic
housing or core. This pressure can have a deleterious effect on electrical properties, and in
extreme cases can damage the core or plastic housing mechanically.
– It is necessary to check whether the potting material used attacks or destroys the wire
insulation, plastics or glue.
– The effect of the potting material can change the high-frequency behaviour of the components.
■
Ferrites are sensitive to direct impact. This can cause the core material to flake, or lead to
breakage of the core.
■
Even for customer-specific products, conclusive validation of the component in the circuit can
only be carried out by the customer.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
5
06/13
