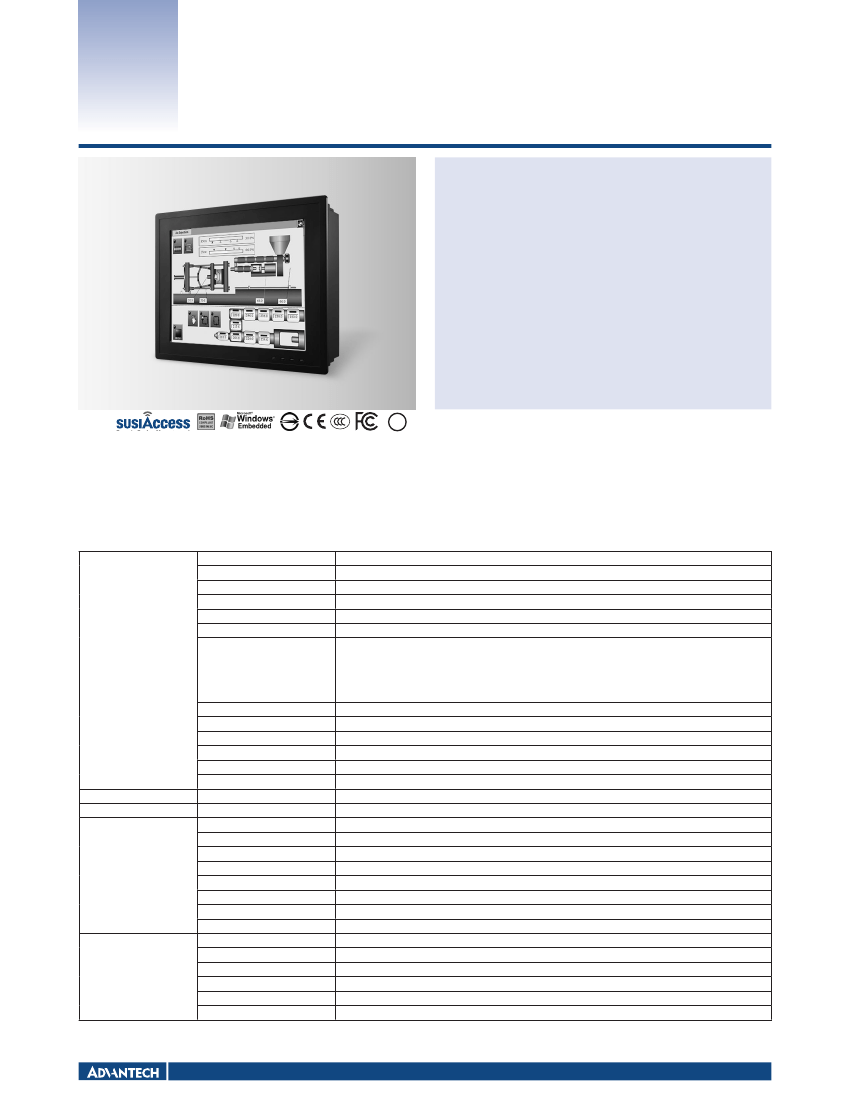

PPC-3100
10.4" Fanless Panel PC with Intel
®
Atom™ D2550 Processor
Features
10.4" TFT SVGA LED Panel with resistive touchscreen
Embedded Intel
®
Atom™ processor D2550 1.86 GHz
System memory up to 4 GB DDR3 1066 SDRAM
Supports one internal SATA 2.5" HDD and 1 x mSATA socket
Fanless design and low power consumption
Automatic data flow control over RS-485
Adjust RS-232/422/485 through BIOS
COM1/COM2 pin9 RI/5V/12V adjustable through BIOS
LED backlight Auto dimming
C
UL
®
US
Introduction
PPC-3100 is a new 10.4" Panel PC equipped with an Intel Atom processor D2550. Meeting high demands of harsh environments, the fanless design makes PPC-3100 more reliable
in different kinds of applications for the machine building industry. In addition, the dual GbE LAN, 4 x serial ports, 4 x USB ports, and GPIO connector make it easier to connect to
devices and be integrated into specific solutions. With a user friendly design it comes with an LED indicator on the front panel for power on/off, storage access, and LAN active status.
Specifications
CPU
Memory
2nd Cache Memory
Chipset
Storage
HDD
Processor System
I/O Ports
Bus Expansion
Network (LAN)
Speaker
Watchdog Timer
Dimensions (W x H x D)
Weight
OS Support
Input Voltage
Display Type
Max. Resolution
Colors
Dot Size (mm)
Viewing Angle
Luminance(cd/m2)
Brightness Control
Backlight Lifetime
Touch Type
Resolution
Light Transmission
Controller
Software Driver Support
Durability (Touches)
Intel Atom D2550 1.86 GHz 10W Dual Core CPU on board
SODIMM x 1, DDR3 1066, Max 4 GB
1 MB
Intel NM10
mSATA*1
1 x 2.5" SATA HDD Bay (Internal)
4 x Serial ports: 3 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS)
4 x USB 2.0 ports
1 x Line-out, 1x MIC-in
1 x DB15 VGA
1 x DB9 GPIO port (8 pin programmable)
1x MINI PCIe
2 x 10/100/1000 Mbps Ethernet
2 x 1W speakers
255 timer levels; setup by software
275 x 220 x 64.3 mm (10.83" x 8.74" x 2.53")
2.5 kg (5.51 lb)
Win XPE, Win XP Pro, WES7 32 bit, Win CE 7.0, Win 7
DC 12 ~ 30 V
10.4" TFT LCD (LED Backlight)
800 x 600
16.2 M
0.264 x 0.264
80 (left), 80 (right), 70 (up), 70 (down)
400
Yes
30, 000 hrs (typical)
Analog Resistive 5-wire
2048 x 2048
81+/-3%
RS-232 interface
Windows 7, XP, CE
36 million
OS Support
Power Supply
LCD Display
Touchscreen
Panel PCs
All product specifications are subject to change without notice
Last updated : 5-May-2015
PPC-3100

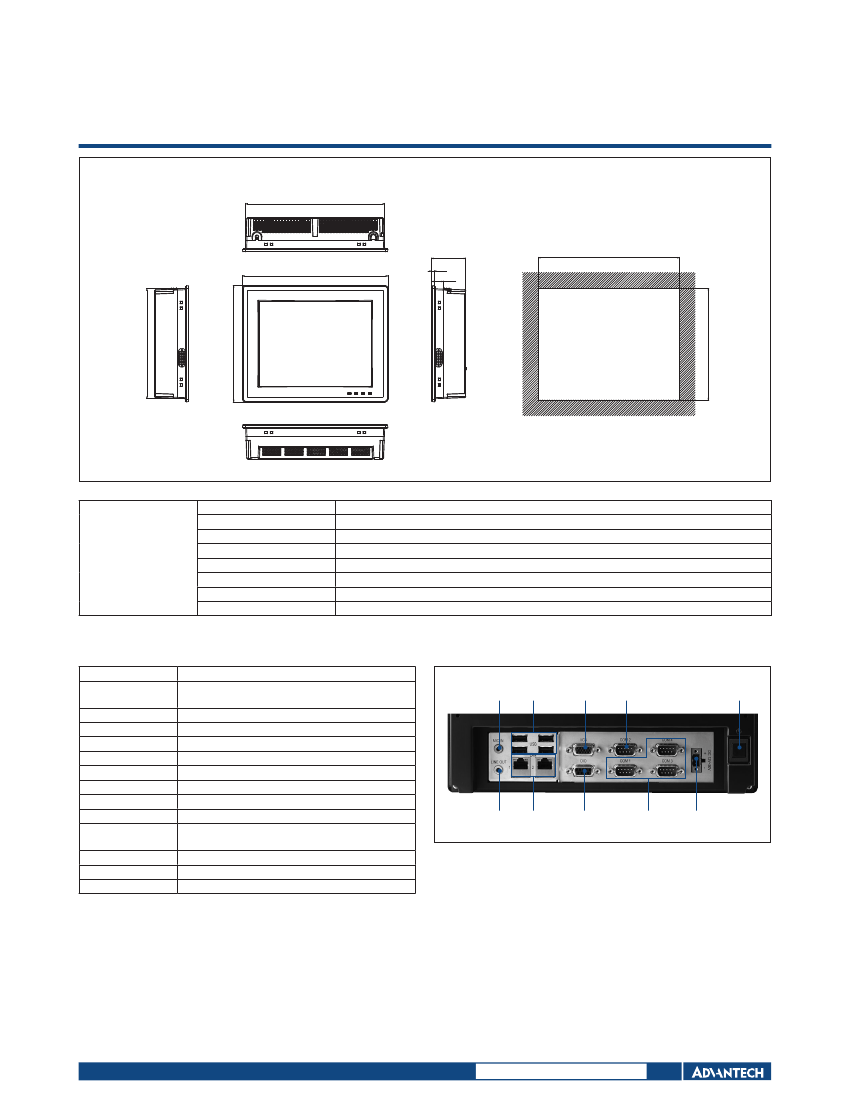

Dimensions
Unit: mm
262.86
275.00
64.30
4.50
21.50
266.00
207.86
220.00
CUT OUT
Environment
Operating Temperature
Storage Temperature
Relative Humidity
Shock
Vibration
EMC
Safety
Front Panel Protection
0 ~ 50°C (32 ~ 122°F)
-20 ~ 60°C (-4 ~ 140°F)
10 ~ 95% @ 40°C (non-condensing)
Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64
BSMI, CE, FCC Class B
CB, CCC, BSMI, UL
IP65 compliant
Ordering Information
Part No.
PPC-3100-RAE
PS-DC19-L157E
1700001524
170203183C
1700008921
* PPC-174T-WL-MTE
* PPC-ARM-A03
PPC-3100-VESAE
PPC-WLAN-A1E
2070011747
2070012891
2070012470
* PPC-STAND-A1E
Description
Atom D2550 Fanless Panel PC with 10.4" SVGA LED
backlight, touch, without memory
19V power adapter module
Power cord 3P UL 10A 125V 1.8m
Power cord 3P Europe (WS-010+083)183cm
Power cord 3P/3P Power supply 1.8M PSE
Wall mount kit for PPC series
PPC ARM VESA Standard
PPC-3100 VESA bracket
WiFi Module with Antenna Cable 28cm for PPC
Image XPE WES2009 PPC-3100 V4.3.1 24
multi-languages with SUSI Access
Image WES7P 32-bit Multi V4.12 PPC-3120/3100
Image WEC7 PPC-3100 V1.0 Eng
Stand For PPC Series (single acting hinge)
I/O
A
B
C
D
E
J
I
H
G
F
* if you order the Wall mount kit / ARM / Desktop stand , please also order PPC-3100-
VESAE at the same time.
A. MIC in
B. 4 x USB
C. VGA
D. RS-232/422/485
E. Power S/W
F. DC-in
G. 3 x RS-232
H. GPIO
I. 2 x GbE
J. LINE out
Online Download
www.advantech.com/products
211.00
