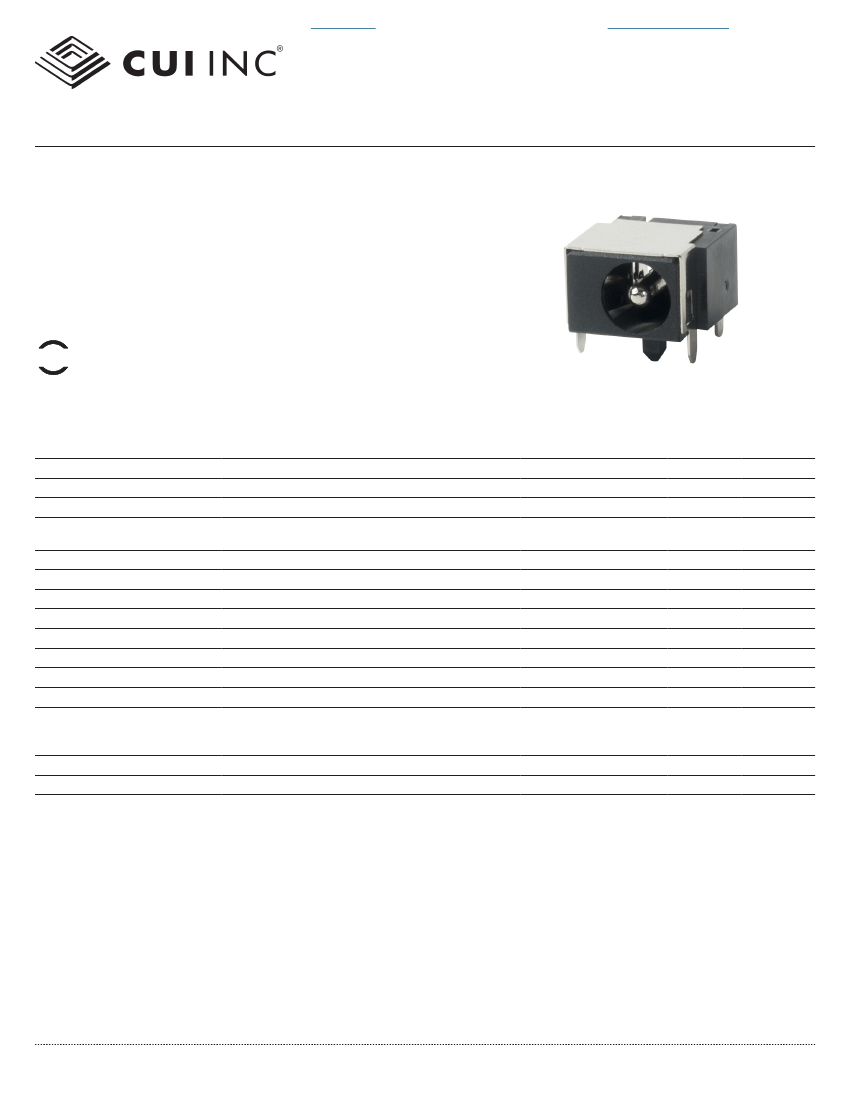

MODEL: PJ-076A
│
DESCRIPTION: DC POWER JACK
FEATURES
• low profile
• shielded
• internal switch
RoHS
SPECIFICATIONS
parameter
rated input voltage
rated input current
contact resistance
1
insulation resistance
voltage withstand
insertion/withdrawal force
terminal strength
operating temperature
life
flammability rating
RoHS
Notes:
conditions/description
min
typ
24
max
2.5
units
Vdc
A
mΩ
mΩ
MΩ
Vac
kg
g
°C
cycles
between terminal and mating plug
between terminal in a closed circuit
at 500 Vdc
at 50/60Hz for 1 minute
0.3
any direction for 10 seconds
-25
5,000
UL94V-0
2011/65/EU
100
50
30
500
3
500
85
1. When measured at a current of less than 100 mA / 1 kHz
SOLDERABILITY
parameter
wave soldering
conditions/description
dipped in solder pot for 5 ±0.5 seconds at
min
255
typ
260
max
265
units
°C
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-076A
│
DESCRIPTION:
DC POWER JACK
date
05/18/2016
│
page
2 of 3

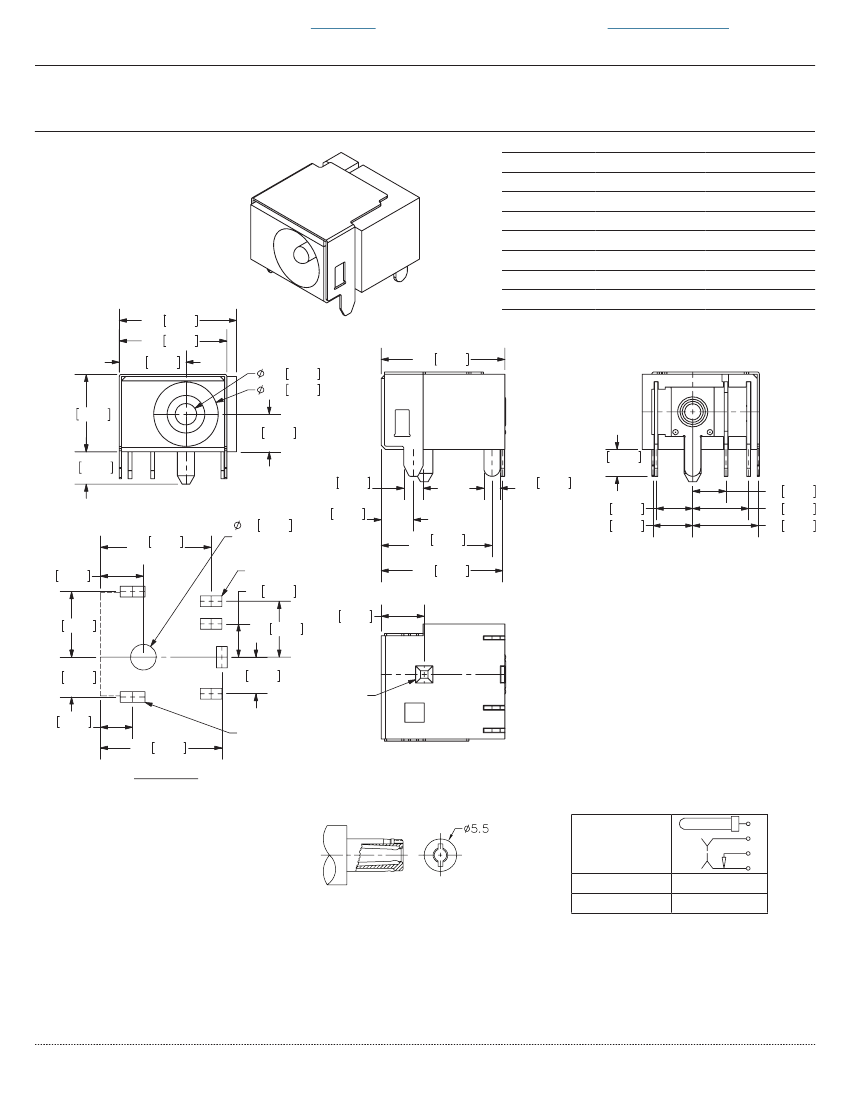

MECHANICAL DRAWING
units: mm[inches]
TOLERANCE:
X.X ±0.2mm
X.XX ±0.1mm
X.XXX ±0.05mm
center pin
terminal 1
terminal 2
terminal 3
terminal 4
shield
plastic
10.9 0.429
10.0 0.394
6.20 0.244
11.5 0.453
2.00 0.079
6.00 0.236
7.2 0.283
3.50 0.138
3.00 0.118
1.80 0.071
(2 PLCS)
2.4 0.094
+0.1
-0.0
2.00X1.00
(4 PLCS)
2
6.1 0.240
3
1
3.7 0.146
4
3.0 0.118
(2 PLCS)
2.30X1.00
(2 PLCS)
3.4 0.134
1.60x1.60
3
2
1
3.1 0.122
5.2 0.205
4.00 0.157
4
3.0 0.118
(2 PLCS)
1.50 0.059
(4 PLCS)
2.5 0.098
(6 PLCS)
3.1 0.122
3.4 0.134
3.7 0.146
10.3 0.406
(3 PLCS)
11.3 0.445
5.2 0.205
6.1 0.240
MATERIAL
copper
brass
copper alloy
brass
copper alloy
brass
PBT
PLATING
nickel
tin
tin
tin
tin
nickel
10.3 0.406
(3 PLCS)
4.00 0.157
11.3 0.445
PCB LAYOUT
TOP VIEW
Schematic
Model
MATING PLUG
Jack Insertion Depth: 8.2mm
PJ-076A
Center Pin
Ø2.00 mm
1
4
3
2
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-076A
│
DESCRIPTION:
DC POWER JACK
date
05/18/2016
│
page
3 of 3
REVISION HISTORY
rev.
1.0
1.01
description
initial release
increased voltage rating
date
02/06/2013
05/18/2016
The revision history provided is for informational purposes only and is believed to be accurate.
