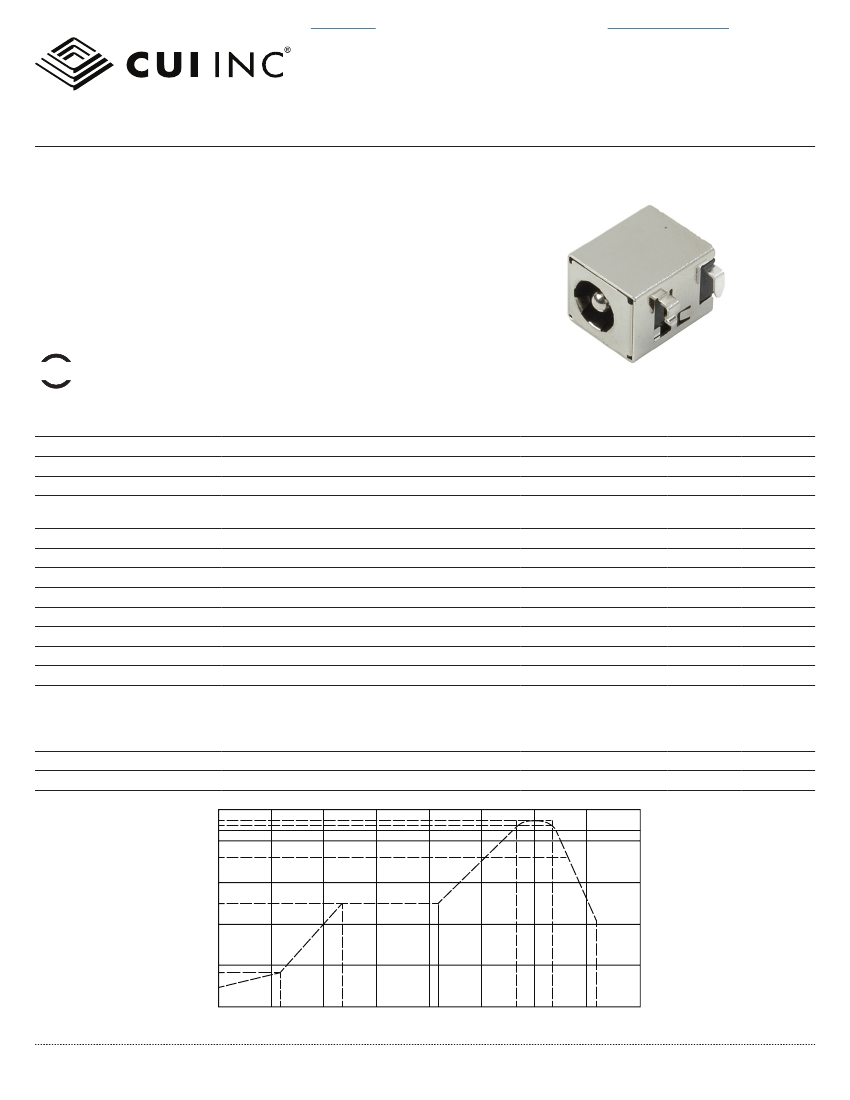

MODEL:
PJ-069B-SMT
│
DESCRIPTION:
MID MOUNT DC POWER JACK
FEATURES
•mid mount for low profile applications
•fully shielded
•high current rating
RoHS
SPECIFICATIONS
parameter
rated input voltage
rated input current
contact resistance
1
insulation resistance
voltage withstand
insertion/withdrawal force
terminal strength
operating temperature
life
flammability rating
RoHS
Notes:
conditions/description
min
typ
24
max
5
units
Vdc
A
mΩ
mΩ
MΩ
Vac
kg
g
°C
cycles
between terminal and mating plug
between terminal in a closed circuit
at 500 Vdc
at 50/60Hz for 1 minute
0.3
any direction for 10 seconds
-25
5,000
UL94V-0
2011/65/EU
100
50
30
500
3
500
85
1.When measured at a current of less than 100 mA / 1 kHz
2. Add suffix “-TR” to the model number for tape & reel packaging
SOLDERABILITY
parameter
reflow soldering
270
260
250
240
217
180
120
120
conditions/description
see reflow profile
min
255
typ
260
max
265
units
°C
60
50
°C
60
Time (second)
70
120
140
180
240
250
300
340
360
380
420
430
480
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-069B-SMT
│
DESCRIPTION:
MID MOUNT DC POWER JACK
date
05/09/2016
│
page
2 of 3

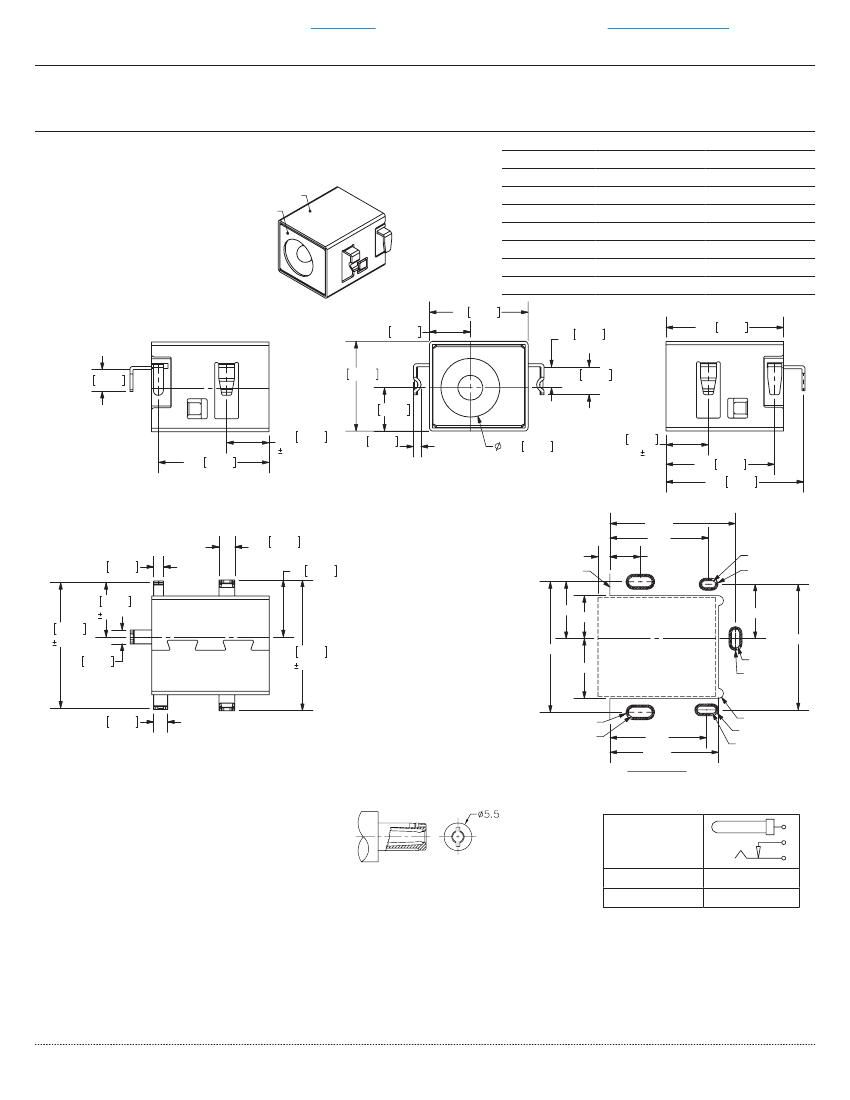

MECHANICAL DRAWING
units: mm[inches]
TOLERANCE:
X.X ±0.2mm
X.XX ±0.1mm
X.XXX ±0.05mm
center pin
SHIELD A
SHIELD B
MATERIAL
brass
brass
copper alloy
brass
brass
stainless steel
PA6T
PLATING
nickel
silver
silver
silver
nickel
terminal 1
terminal 2
terminal 3
shield-A
shield-B
plastic
9.9 0.390
4.10 0.161
2.1 0.083
(5 PLCS)
2.8 0.110
(4 PLCS)
11.8 0.465
2.2 0.087
9.0 0.354
4.35 0.171
4.25 0.167
0.2
11.1 0.437
0.75 0.030
(2 PLCS)
5.90 0.232
4.25 0.167
0.2
10.9 0.429
13.8 0.543
12.6
1.60 0.063
(2 PLCS)
1.00 0.039
3
5.45 0.215
0.2
12.6 0.496
0.3
1.40 0.055
1
13.1 0.516
0.3
13.1
6.0
5.7
4.3
5.7 0.224
1.2
PCB EDGE
9.9
3.05
(2 PLCS)
3
5.45
12.6
0.80X1.90
1.30X2.40
2
1.50X2.90 (2 PLCS)
1.00X2.40 (2 PLCS)
9.7
10.9
PCB LAYOUT
TOP VIEW
0.70X1.40
1.20X1.90
1
2
1.40 0.055
R0.50 (2 PLCS)
1.20X2.40
0.70X1.90
Schematic
MATING PLUG
Jack Insertion Depth: 8.2 mm
1
3
2
Model
PJ-069B-SMT
Center Pin
Ø2.5 mm
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-069B-SMT
│
DESCRIPTION:
MID MOUNT DC POWER JACK
date
05/09/2016
│
page
3 of 3
REVISION HISTORY
rev.
1.0
1.01
1.02
1.03
description
initial release
updated spec, added jack insertion depth
added TR package option
increased voltage rating
date
05/04/2011
10/23/2012
11/28/2012
05/09/2016
The revision history provided is for informational purposes only and is believed to be accurate.
