50 Ohm 2 Way N Wilkinson Power Divider From
690 MHz to 2.7 GHz Rated at 10 Watts
TECHNICAL DATA SHEET
50 Ohm 2 Way N Wilkinson Power Divider From 690 MHz to 2.7 GHz Rated at 10 Watts
Configuration
Input Connector
Input Connector Specification
Output Connectors
Output Connectors Specification
Frequency Range, GHz
Design
Number of Output Ports
Housing Material and Plating
N Female
MIL-STD-348
N Female
MIL-STD-348
0.69 to 2.7
Wilkinson
2
Aluminum
PE2092
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Insertion Loss, dB
Maximum Input Power, Watts
Maximum Input VSWR
Maximum Output VSWR
Minimum Isolation, dB
Phase Balance, Degrees
Flatness, dB
0.69 to 2.7
50
0.5
10
1.25:1
1.2:1
22
±
3
0.2

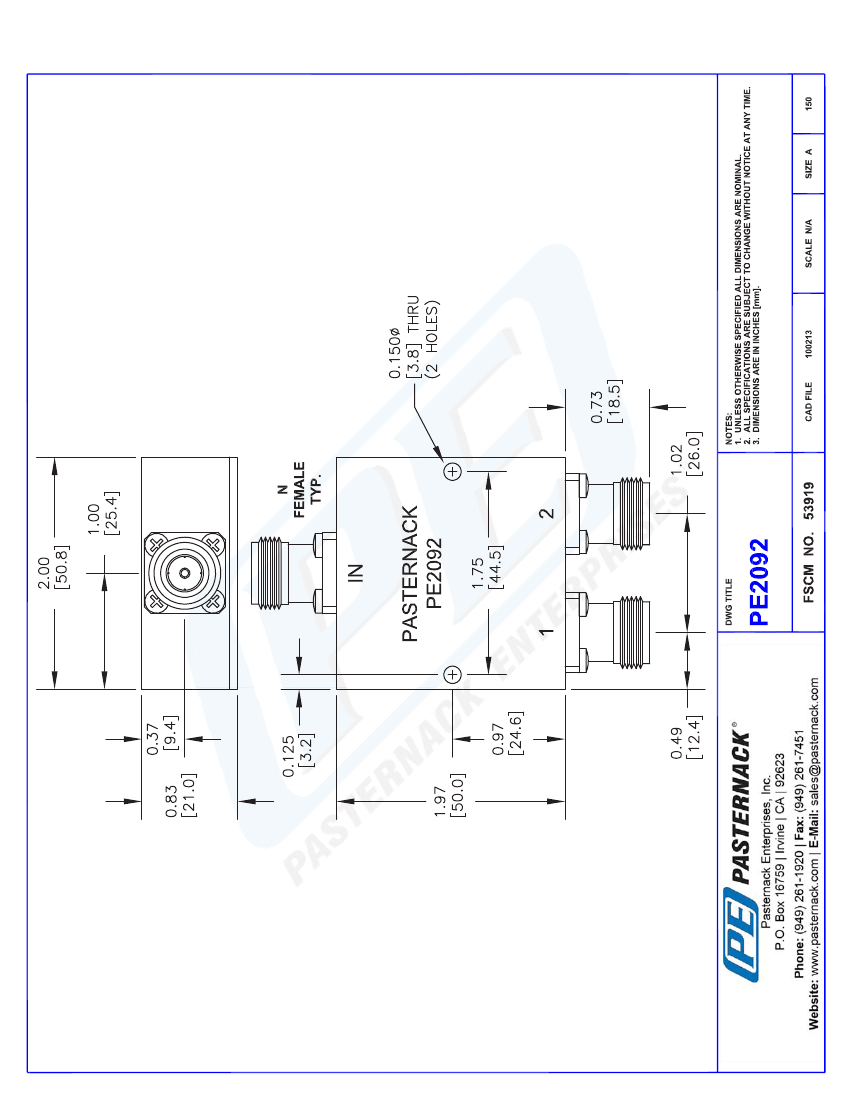

Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width, in [mm]
Height, in [mm]
.
-55 to +85
3.4 [86.36]
2 [50.8]
0.8 [20.32]
Blue
Beryllium Copper, Gold
Brass
Brass
Beryllium Copper, Gold
Brass
Brass
Color
Input Connector
Contact Material and Plating
Connector Material and Plating
Body Material and Plating
Output Connectors
Contact Material and Plating
Connector Material and Plating
Body Material and Plating
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm 2 Way N Wilkinson Power Divider From 690 MHz to 2.7 GHz Rated at 10 Watts
PE2092
PE2092 REV 1.0
1
50 Ohm 2 Way N Wilkinson Power Divider From
690 MHz to 2.7 GHz Rated at 10 Watts
TECHNICAL DATA SHEET
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
PE2092
Plotted and Other Data
Notes:
Values at 25 °C, sea level
50 Ohm 2 Way N Wilkinson Power Divider From 690 MHz to 2.7 GHz Rated at 10 Watts from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% avail-
ability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm 2 Way N Wilkinson Power Divider From 690 MHz to 2.7 GHz Rated at 10 Watts PE2092
URL:
http://www.pasternack.com/2-way-n-wilkinson-power-divider-690-mhz-2.7-ghz-10-watts-pe2092-p.aspx
PE2092 REV 1.0
