50 Ohm 2 Way SMA Wilkinson Power Divider From
690 MHz to 2.7 GHz Rated at 10 Watts
TECHNICAL DATA SHEET
50 Ohm 2 Way SMA Wilkinson Power Divider From 690 MHz to 2.7 GHz Rated at 10 Watts
Configuration
Input Connector
Input Connector Specification
Output Connectors
Output Connectors Specification
Frequency Range, GHz
Design
Number of Output Ports
Housing Material and Plating
SMA Female
MIL-STD-348
SMA Female
MIL-STD-348
0.69 to 2.7
Wilkinson
2
Aluminum
PE2088
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Insertion Loss, dB
Maximum Input Power, Watts
Maximum Input VSWR
Maximum Output VSWR
Minimum Isolation, dB
Phase Balance, Degrees
Flatness, dB
0.69 to 2.7
50
0.5
10
1.25:1
1.2:1
22
±
3
0.2

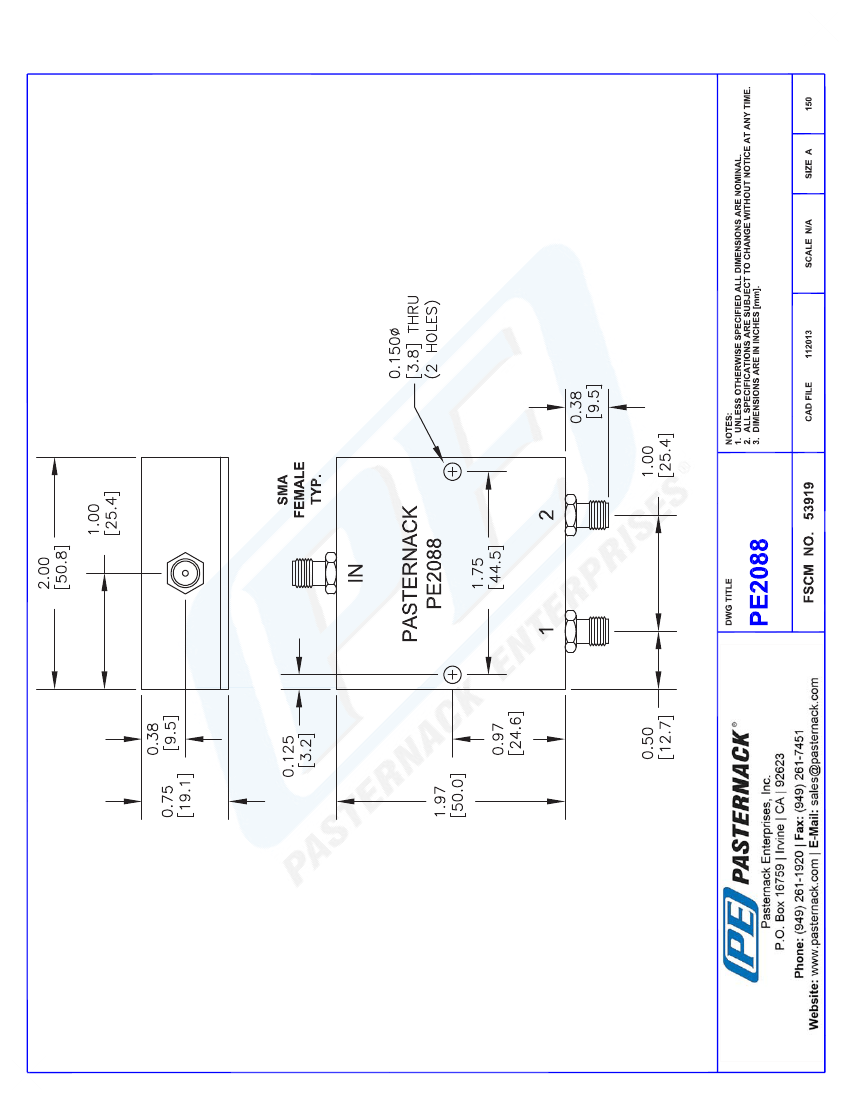

Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width, in [mm]
Height, in [mm]
.
-55 to +85
2.7 [68.58]
2 [50.8]
0.75 [19.05]
Input Connector
Contact Material and Plating
Connector Material and Plating
Body Material and Plating
Output Connectors
Contact Material and Plating
Connector Material and Plating
Body Material and Plating
Beryllium Copper, Gold
Passivated Stainless Steel
Passivated Stainless Steel
Beryllium Copper, Gold
Passivated Stainless Steel
Passivated Stainless Steel
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm 2 Way SMA Wilkinson Power Divider From 690 MHz to 2.7 GHz Rated at 10 Watts
PE2088
PE2088 REV 1.0
1
50 Ohm 2 Way SMA Wilkinson Power Divider From
690 MHz to 2.7 GHz Rated at 10 Watts
TECHNICAL DATA SHEET
Compliance Certifications
(visit www.Pasternack.com for current document)
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE2088
50 Ohm 2 Way SMA Wilkinson Power Divider From 690 MHz to 2.7 GHz Rated at 10 Watts from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm 2 Way SMA Wilkinson Power Divider From 690 MHz to 2.7 GHz Rated at 10 Watts
PE2088
URL:
http://www.pasternack.com/2-way-sma-wilkinson-power-divider-690-mhz-2.7-ghz-10-watts-pe2088-p.aspx
PE2088 REV 1.0
