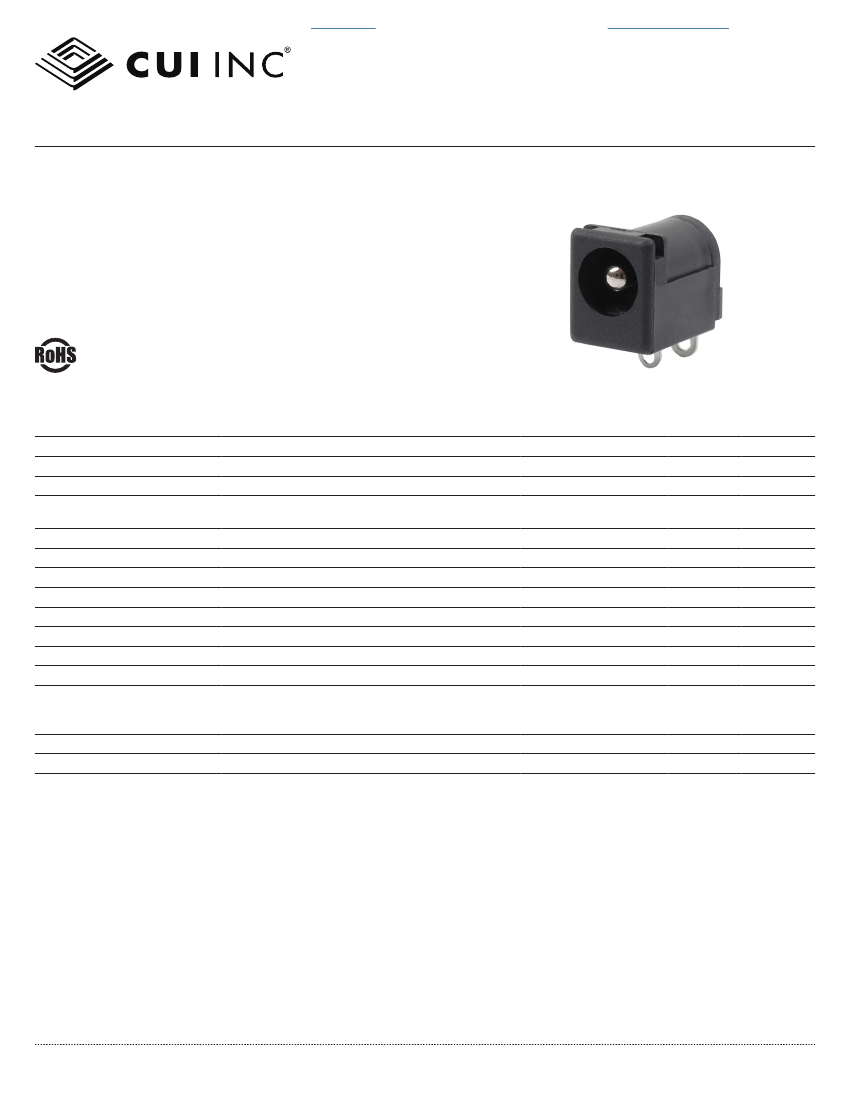

1. When measured at a current of less than 100 mA/1 kHz
SOLDERABILITY
parameter
wave soldering
conditions/description
dipped in solder pot for 5 ±0.5 seconds
min
255
typ
260
max
265
units
°C
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-037A
│
DESCRIPTION:
DC POWER JACK
date
04/08/2016│
page
2 of 3

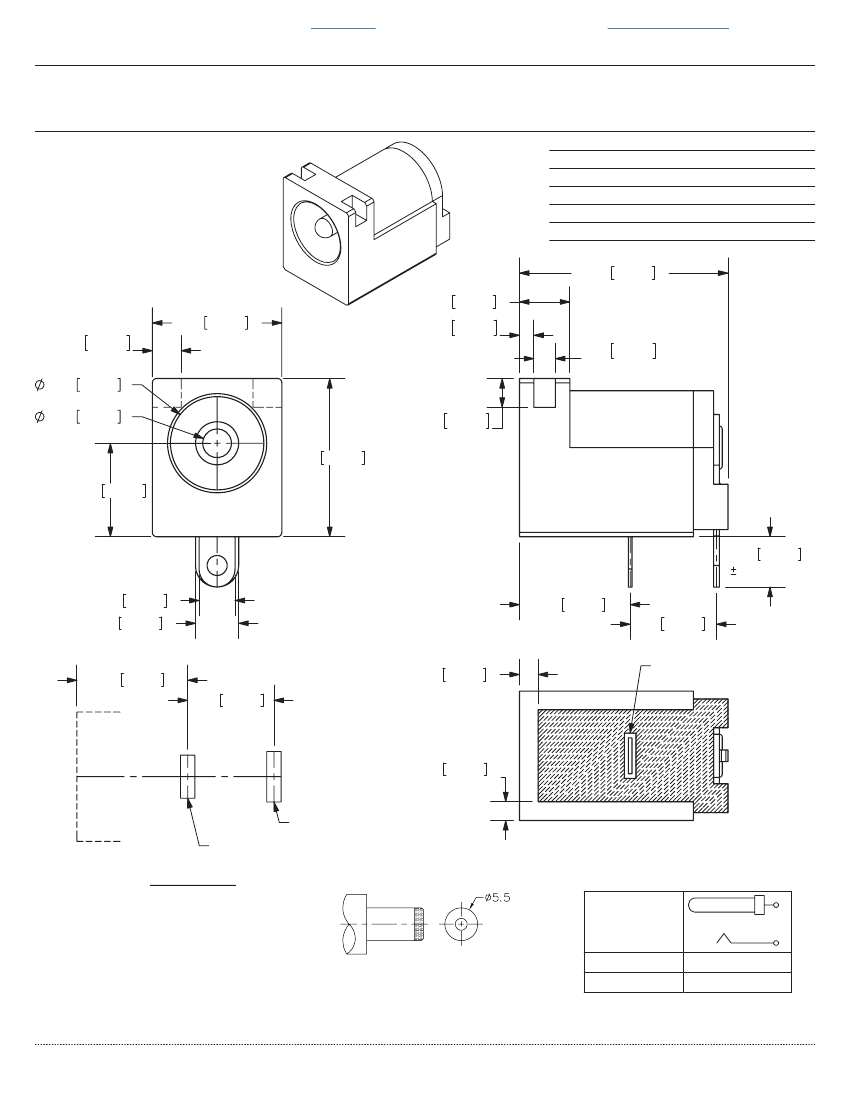

MECHANICAL DRAWING
units: mm[inches]
tolerance:
X.X ±0.2mm
X.XX ±0.1mm
X.XXX ±0.05mm
MATERIAL
center pin
terminal 1
terminal 2
plastic
copper
brass
copper alloy
PBT
PLATING
nickel
tin
tin
14.5 0.571
3.50 0.138
9.0 0.354
2.00 0.079
(2 PLCS)
6.50 0.256
2.00 0.079
11.0 0.433
6.50 0.256
2.00 0.079
(2 PLCS)
1.00 0.039
(2 PLCS)
1.50 0.059
(2 PLCS)
2
2.50 0.098
3.00 0.118
1.30 0.051
6.0 0.236
7.7 0.303
1
6.0 0.236
3.5 0.138
0.3 (2 PLCS)
7.7 0.303
Cut Away Area
0.5 deep
2
1
1.30 0.051
(TYP)
1.00X3.50
1.00X3.00
PCB LAYOUT
TOP VIEW
SCHEMATIC
1
2
MATING PLUG
Jack Insertion Depth: 9.0 mm
Model
Center Pin
PJ-037A
Ø2.0 mm
Note:
1. All specifications measured at 10~35°C, humidity at 45~85%, under standard atmospheric pressure, unless otherwise noted.
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-037A
│
DESCRIPTION:
DC POWER JACK
date
04/08/2016│
page
3 of 3
REVISION HISTORY
rev.
1.0
1.01
1.02
1.03
1.04
description
initial release
cut away area modified
added dimensions
applied new spec template
increased voltage rating
date
07/30/2007
08/28/2008
06/23/2011
01/17/2014
04/08/2016
The revision history provided is for informational purposes only and is believed to be accurate.
