374461: DescriptionMale Connector RD 128; File Size72KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet View All

374461 Overview

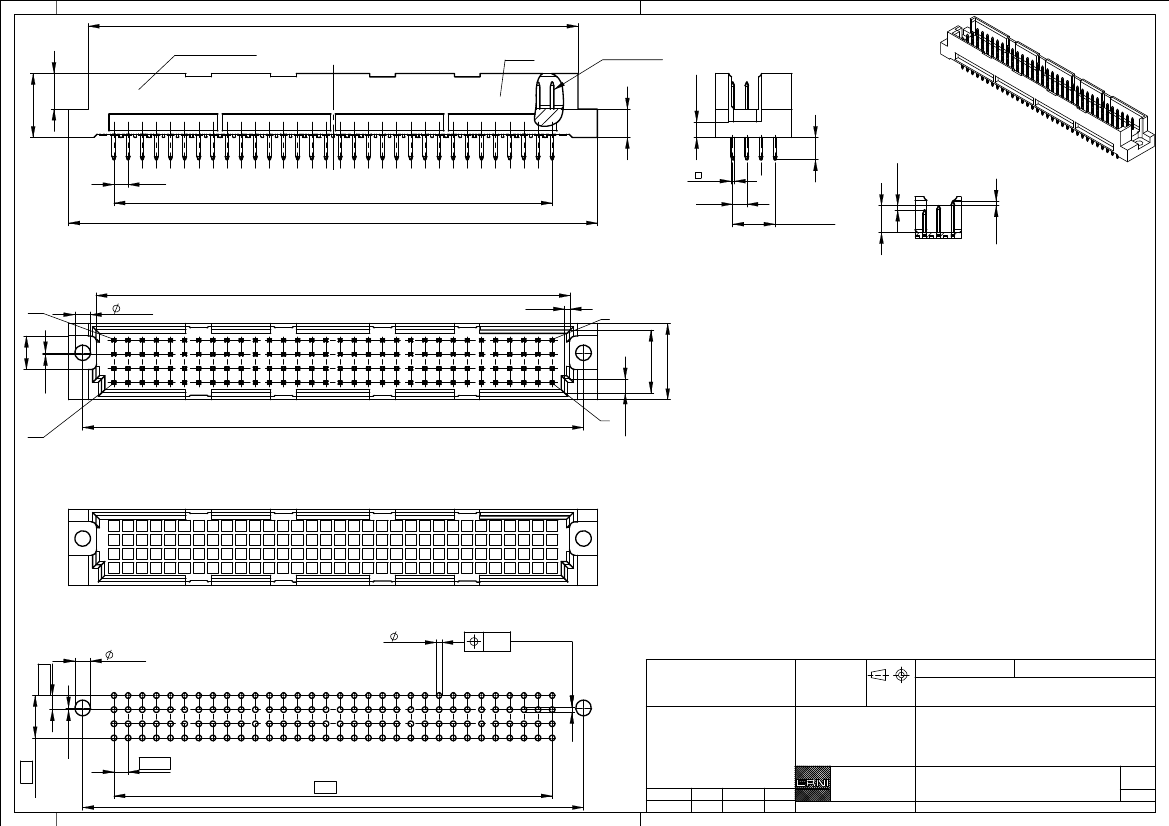

Male Connector RD 128

Preview

Download Datasheet

View All

88

-0,2

class

6,4

-0,1

Anforderungsstufe

Datum

date

Stecklänge

mating length

2,9

-0,3

5,2

-0,1

11,6 max.

4

±0,2

2,54

31x2,54=78,74

95 max.

0,6

2,54

4,8

3x2,54=7,62

+0,2

0,8

±0,1

85,2

a32

2,8

+0,1

+0,2

E =

early mate, late break

/ voreilend

S = standard

L =

late mate, early break

/ nacheilend

1

-0,1

a1

13,7max.

0,3

11,3

+0,1

6

d32

Bestückungsplan /

contact layout

90

±0,1

d1

Gerader Anschluss 0,6x0,6mm /

straight terminal 0,6x0,6mm

Isolierwerkstoff

/ housing material : PBT GF 30

Bauart 4 / t

ype 4

Anforderungsstufe 1 = 500 Steckzyklen

/ performance class 1 = 500 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

2,5

-0,2

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

Bedruckung siehe Zeichnung 294905

S

a

b

c

d

Marking see drawing 294905

Leiterplatten-Lochbild /

PCB drillhole pattern

2,8

2,54

+0,1

1

±0,1

alle Löcher

0,05

all holes

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

a

b

c

d

2,54

31x 2,54 =78,74

90

3x 2,54 =7,62

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

-

Index

02.06.2009

Date

Designation

0,3

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste RD 128

Male Connector RD 128

0,8

±0,1

ERNI

RC 1

XXXXXXX

a b c d

Stecklänge /

mating length

L S E

www.ERNI.com

Class

374461

STVRD

I

A3
