LP2500K0603CT LOW PASS FILTER SPECIFICATION

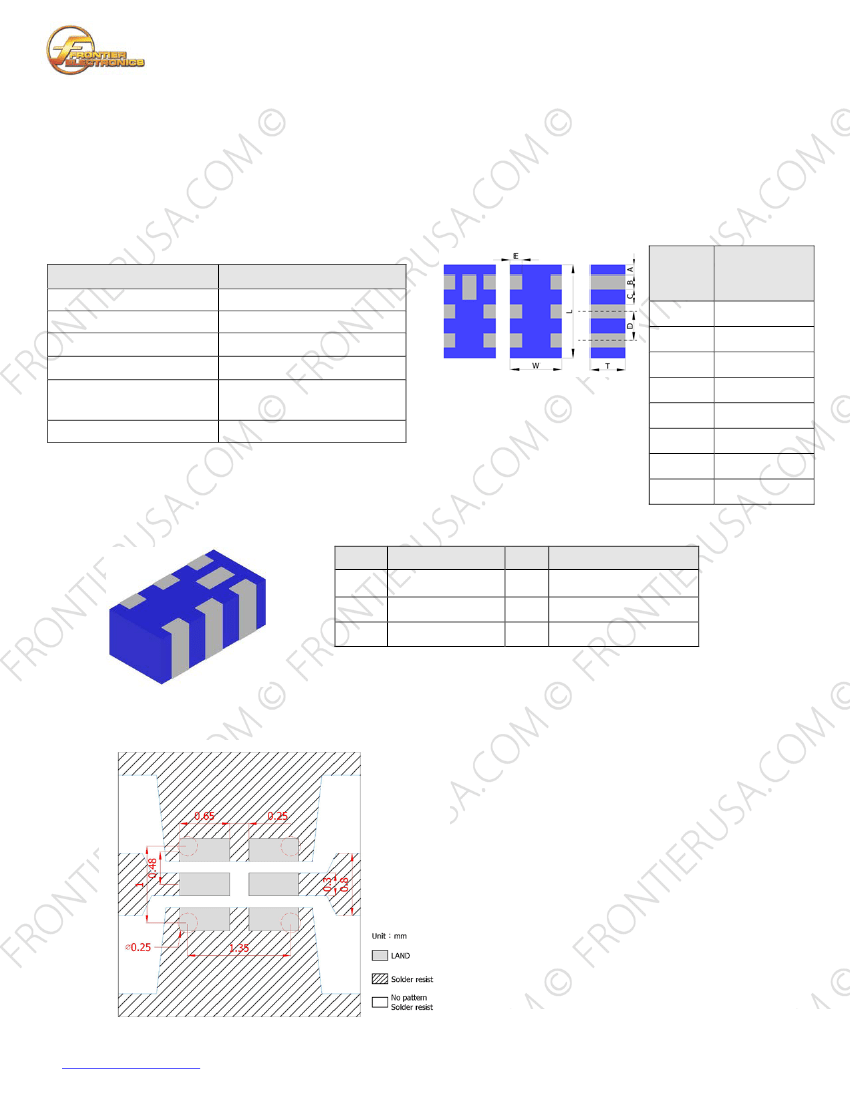

PRODUCT FEATURES
1.
2.
3.
Surface mount low pass filter with a small size of 1.6 X 0.8 X 0.6 mm, RoHS compliant.
Provide low insertion loss and high rejection rate.
Highly stable under temperature and humidity changes.
Rev. A
RF CHARACTERISTICS
P/N LP2500K0603CT
Frequency range
Insertion Loss (max)
VSWR
Impedance
Attenuation (min.)
Operating temperature range
Specification
2400-2500 MHz
0.42 dB
1.5 max
50 Ω
25dB @ 4800 MHz
18dB @ 7200 MHz
-40°C to +85°C
PHYSICAL DIMENSIONS
Symbol
L
W
T
A
B
C
D
E
Dimension
(mm)
1.60 ± 0.10
0.80 ± 0.10
0.60 ± 0.10
0.20 ± 0.10
0.24 ± 0.10
0.24 ± 0.10
0.48 ± 0.10
0.15 ± 0.10
TERMINAL CONFIGURATION
P1
P2
P3
PIN
P1
P2
Connection
GND
OUTPUT
GND
PIN
P4
P5
P6
Connection
GND
INPUT
GND
P6
P5
P4
P3
PCB DESIGN/LAYOUT CONSIDERATION
Note:
- Design trace width to be 50Ω impedance.
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
LP2500K0603CT LOW PASS FILTER SPECIFICATION
Rev. A

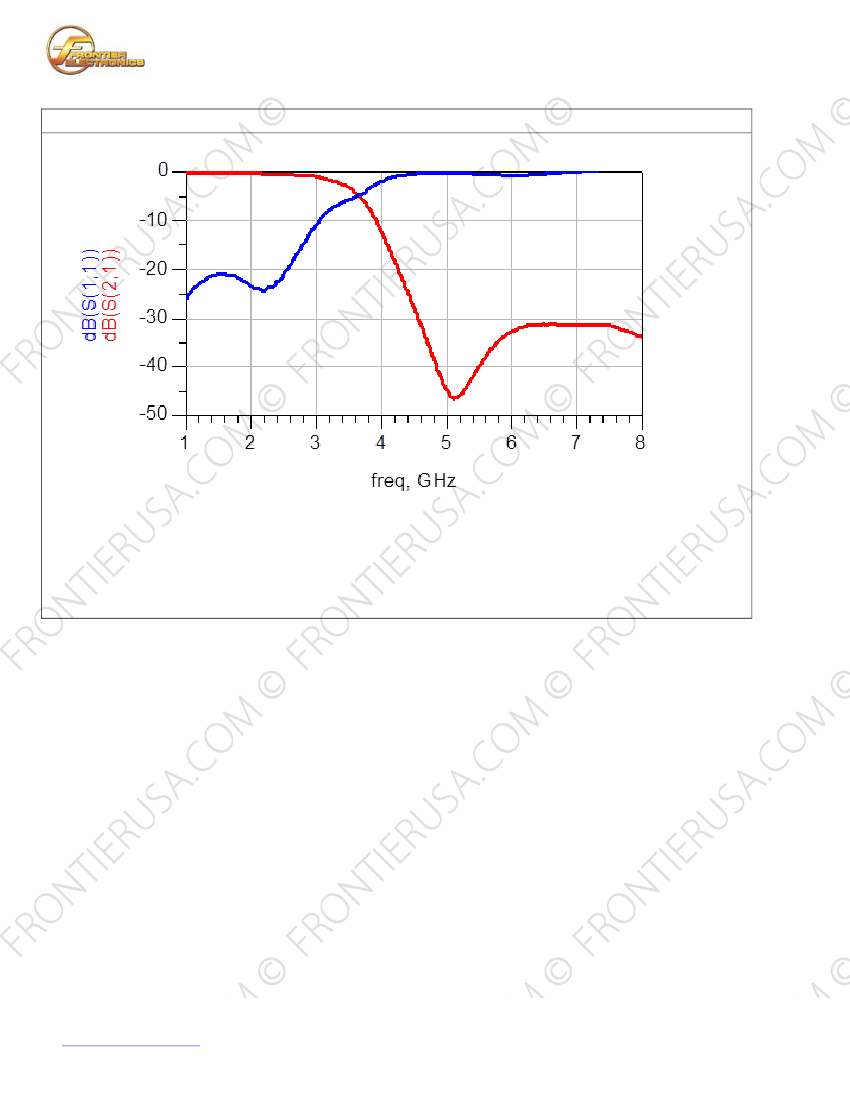

Typical RF Performance
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
2
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
