710-318XW06: DescriptionComposite Split "T" Junction Fitting; File Size27KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

710-318XW06 Overview

Composite Split "T" Junction Fitting

Preview

Download Datasheet

View All

Adapters and

Transitions

710-318

Composite Split "T" Junction Fitting

for Series 72 and 74 Convoluted Tubing

710-318 XM 03*04*05

Basic Part No.

Finish (Table II)

End A Dash No. (Table I)

End C Dash No. (Table I)

End B Dash No. (Table I)

Note: When all ends are identical, insert only one dash no.

When multiple dash numbers are ordered, transition size will

be determined by the largest. Adapter may be supplied on

smaller entries. Letter to folow entry will be supplied with

adapters.

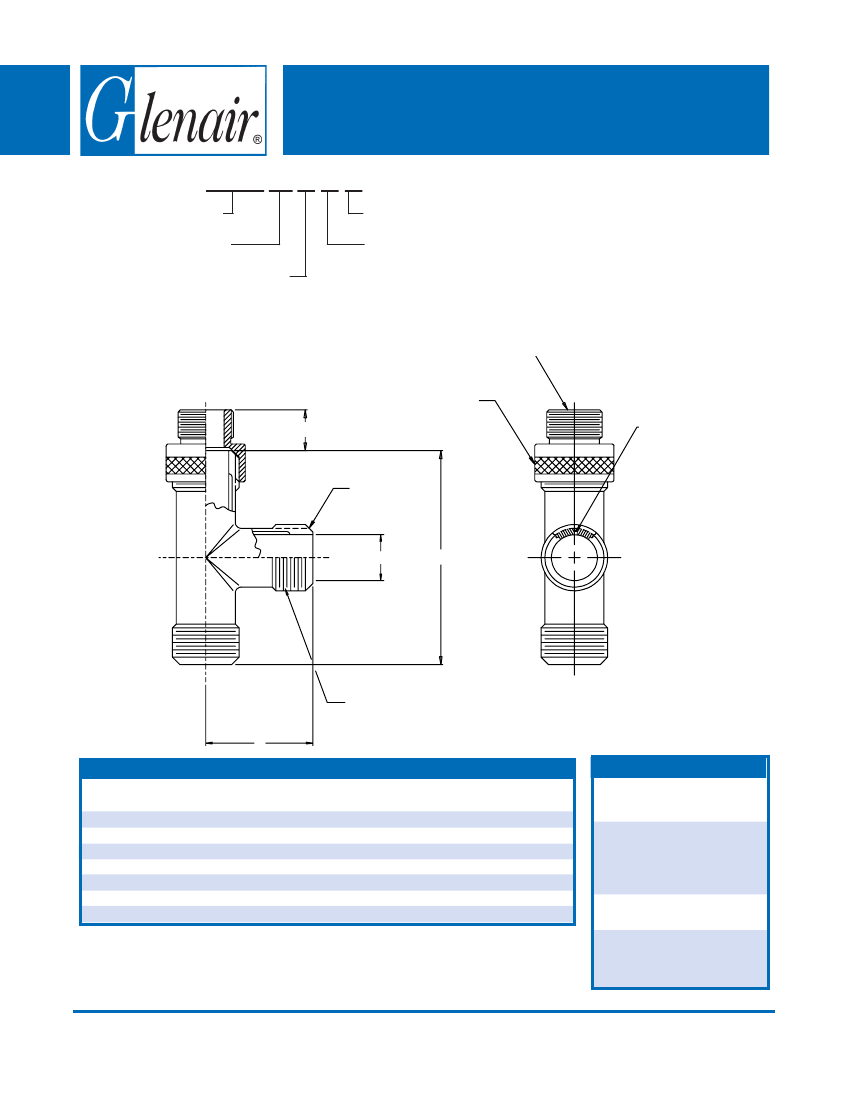

Adapter

End A

.50 (12.7) Max

Shape optional

RFI/EMI Tongue

& Groove Joint

45° Typ.

End B

B Dia

Typ

End C

A Thread - Typ.

Table I

Dash

No.

A Thread

Unified

.750 - 20

1.000 - 20

1.312 - 18

1.500 - 18

2.000 - 18

.500 - 20

.625 - 24

B Dia

.500 (12.7)

.750 (19.1)

1.000 (25.4)

1.250 (31.8)

1.625 (41.3)

.281 (7.1)

.375 (9.5)

C Max

2.375 (60.3)

2.625 (66.7)

2.875 (73.0)

3.125 (79.4)

3.500 (88.9)

2.125 (54.0)

2.250 (57.2)

D Max

1.187 (30.1)

1.312 (33.3)

1.437 (36.5)

1.652 (42.0)

1.750 (44.5)

1.062 (27.0)

1.125 (28.6)

Weight in

Pounds Max.

.082

.114

.160

.191

.273

.031

.043

Table II

TABLE 2

Electroless

Nickel

Cadmium Olive

Drab Over

Electroless

Nickel

No Plating -

Black Material

No Plating - Base

Material

Non-conductive

Printed in U.S.A.

1. Metric dimensions (mm) are in parentheses and are for reference only.

2. Consult factory for availability.

CAGE Codes 06324

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

G-22
