LFSPXO024593BULK datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> LFSPXO024593BULK

LFSPXO024593BULK: DescriptionCMOS Output Clock Oscillator, 48MHz Nom; CategoryPassive components oscillator; File Size710KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO024593BULK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO024593BULK	-	-	View	Buy Now

LFSPXO024593BULK Overview

CMOS Output Clock Oscillator, 48MHz Nom

LFSPXO024593BULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8339657296
Reach Compliance Code	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; BULK
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Installation features	SURFACE MOUNT
Nominal operating frequency	48 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	15 pF
physical size	7.2mm x 5.2mm x 1.4mm
longest rise time	5 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

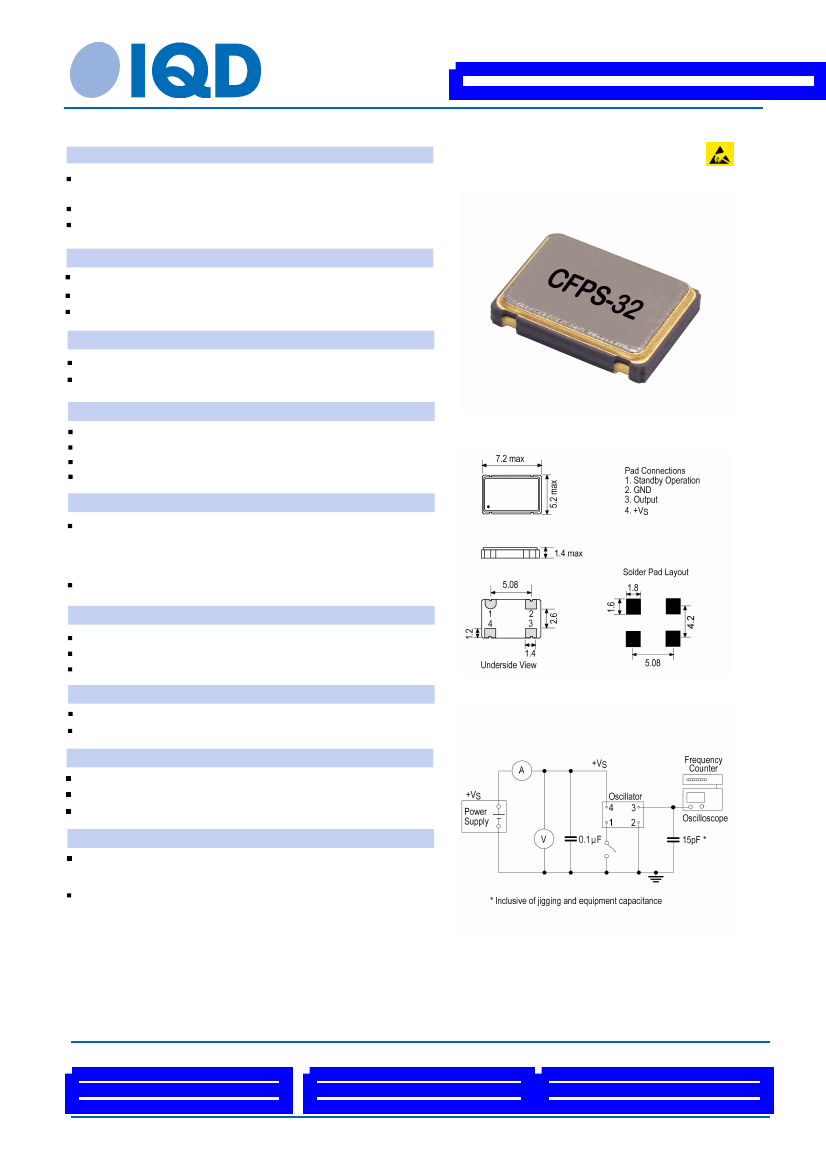

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO024593Bulk

Customer Part:

Description

Surface mount oscillator in a ceramic package with a

hermetically sealed metal lid

Model

CFPS-32

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Electrical Parameters

48.0MHz

±25.00ppm

-10.00 to 70.00°C

Supply Voltage

Current Draw

Output Details

2.5V ±5%

20.000mA

Output Compatibility

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF max

5.0ns max

40/60%

Outline (mm)

Logic ‘1’ (>70% VS) to pad 1 enables oscillator output

Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; the

oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Standby Current: 10μA max

Environmental Parameters

Storage Temperature Range: –55 to 125°C

Shock: MIL-STD-202, Method 213, Condition E

Vibration: MIL-STD-883, Method 2007, Condition A

Manufacturing Details

Test Circuit

RoHS Terminations

RoHS Reflow Temp

Compliance

NiAu

260degC 10s

RoHS Status (2015/863/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2
