LFSPXO025762BULK datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> LFSPXO025762BULK

Preview

LFSPXO025762BULK: DescriptionHCMOS/TTL Output Clock Oscillator, 60MHz Nom; CategoryPassive components oscillator; File Size742KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO025762BULK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO025762BULK	-	-	View	Buy Now

LFSPXO025762BULK Overview

HCMOS/TTL Output Clock Oscillator, 60MHz Nom

LFSPXO025762BULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8202152768
package instruction	ROHS AND REACH COMPLIANT, HERMETIC SEALED, CERAMIC PACKAGE-4
Reach Compliance Code	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; BULK
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	60 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS/TTL
Output load	30 pF
physical size	7.2mm x 5.2mm x 1.4mm
longest rise time	6 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

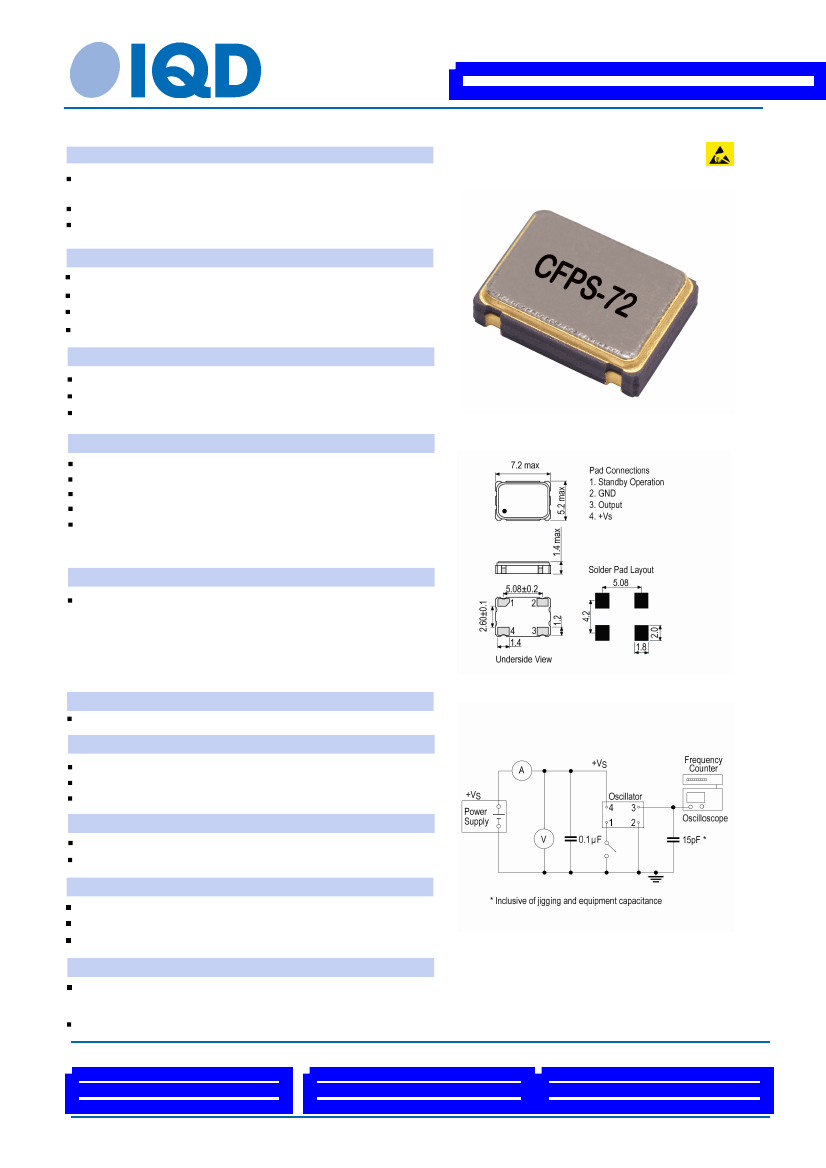

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO025762Bulk

Customer Part:

Description

Standard 7 x 5mm crystal oscillator in a ceramic package with a

seam sealed metal lid, hermetically sealed.

Model

CFPS-72

Model Issue number

14

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

60.0MHz

±100.00ppm

-40.00 to 85.00°C

±3ppm per year max

5.0V ±10%

Supply Voltage

Current Draw

50.000mA

Note: parameters are referenced to 15pF load

Output Details

Outline (mm)

HCMOS/TTL

Output Compatibility

Drive Capability

15pF std, 30pF max

Rise and Fall Time

6.0ns max

45/55%

Duty Cycle

Start up time: 10ms max

1.1ms typ to 90% of final amplitude (under ideal conditions @

25°C)

Output Control

Standby Operation:

Logic ‘1’ (>70% Vs) to pad 1 enables oscillator output.

Logic ‘0’ (<30% Vs) to pad 1 disables oscillator output; the

oscillator output goes to the high impedance state.

No connection to pad 1 enables oscillator output.

Standby Current: 10μA max, 2.3µA typ @ 25°C

Noise Parameters

Test Circuit

RMS Phase Jitter: 350fs typical

Environmental Parameters

Shock: MIL-STD-202, Method 213, Condition E.

Vibration: MIL-STD-883, Method 2007, Condition A.

Storage Temperature Range: -55 to 125°

Manufacturing Details

RoHS Terminations

RoHS Reflow Temp

Compliance

NiAu

260°C 10s

RoHS Status (2015/863/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 8 Jun 21 6:19 using Part Data Sheet V1.0018
