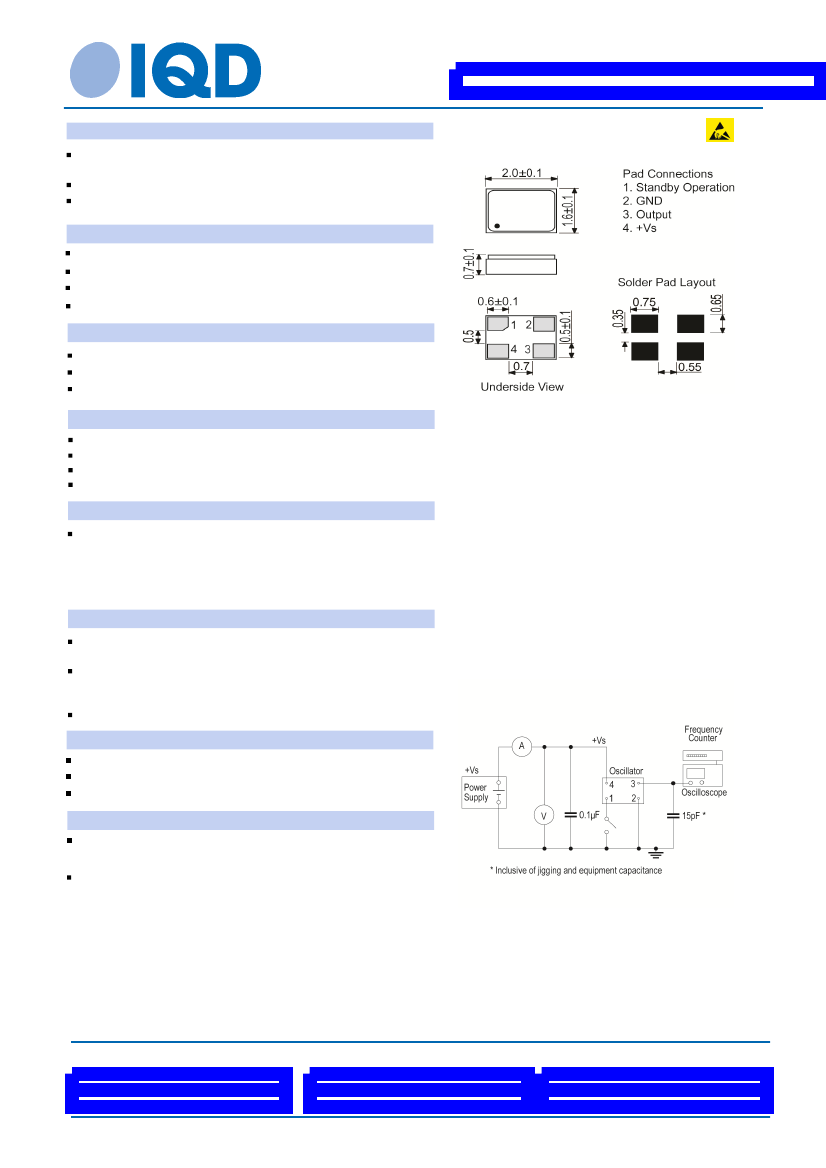

Crystal Clock Oscillator Specification
Part No. + Packaging:
LFSPXO056236Reel
Description
Standard 2 x 1.6 crystal oscillator in a ceramic package with a
seam sealed metal lid, hermetically sealed
Model
IQXO-541
Model Issue number
2
Frequency Parameters
Outline (mm)
Frequency
Frequency Stability
Operating Temperature Range
Ageing
Electrical Parameters
50.0MHz
±50.00ppm
-40.00 to 85.00°C
±5ppm
2.5V ±10%
Supply Voltage
Current Draw
7.000mA
Standby Current: 10μA max (pad 1 at logic '0')
Output Details
Output Compatibility
Drive Capability
Rise and Fall Time
Duty Cycle
Output Control
CMOS
15pF max
5.0ns max
45/55%
Standby Operation: Logic ‘1’ (≥70%VS) to pad 1 enables
oscillator output
Logic ‘0’ (≤30%VS) to pad 1 disables oscillator output; when
disabled the oscillator output goes to the high impedance state
No connection to pad 1 enables oscillator output
Environmental Parameters
Impact: Weight of 10g dropped to centre of part from a height
of 6mm
Vibration: IEC 60068-2-6: 1.5mm amplitude, 10Hz-55Hz, 1min
in 3 mutually perpendicular planes, duration 2hrs each plane
(total 6hrs)
Storage Temperature Range: –40 to 85°C
Compliance
Test Circuit
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Reel
Pack Size: 1,000
Tape & reel in accordance with EIA-481-D
Alternative packing option available
