LFXTAL027633REEL

Description
Parallel - Fundamental Quartz Crystal
CategoryPassive components    Crystal/resonator
File Size763KB,1 Pages
ManufacturerIQD Frequency Products
Environmental Compliance
Download Datasheet Parametric View All

LFXTAL027633REEL Overview

Parallel - Fundamental Quartz Crystal

LFXTAL027633REEL Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid8315713045
package instructionHC49, 2 PIN
Reach Compliance Codecompliant
Other featuresTR
Ageing3 PPM/YEAR
Crystal/Resonator TypePARALLEL - FUNDAMENTAL
Drive level1000 µW
frequency stability0.005%
frequency tolerance30 ppm
load capacitance30 pF
Installation featuresTHROUGH HOLE MOUNT
Nominal operating frequency4 MHz
Maximum operating temperature90 °C
Minimum operating temperature-40 °C
physical sizeL11.05XB4.65XH13.46 (mm)/L0.435XB0.183XH0.53 (inch)
Series resistance100 Ω
surface mountNO

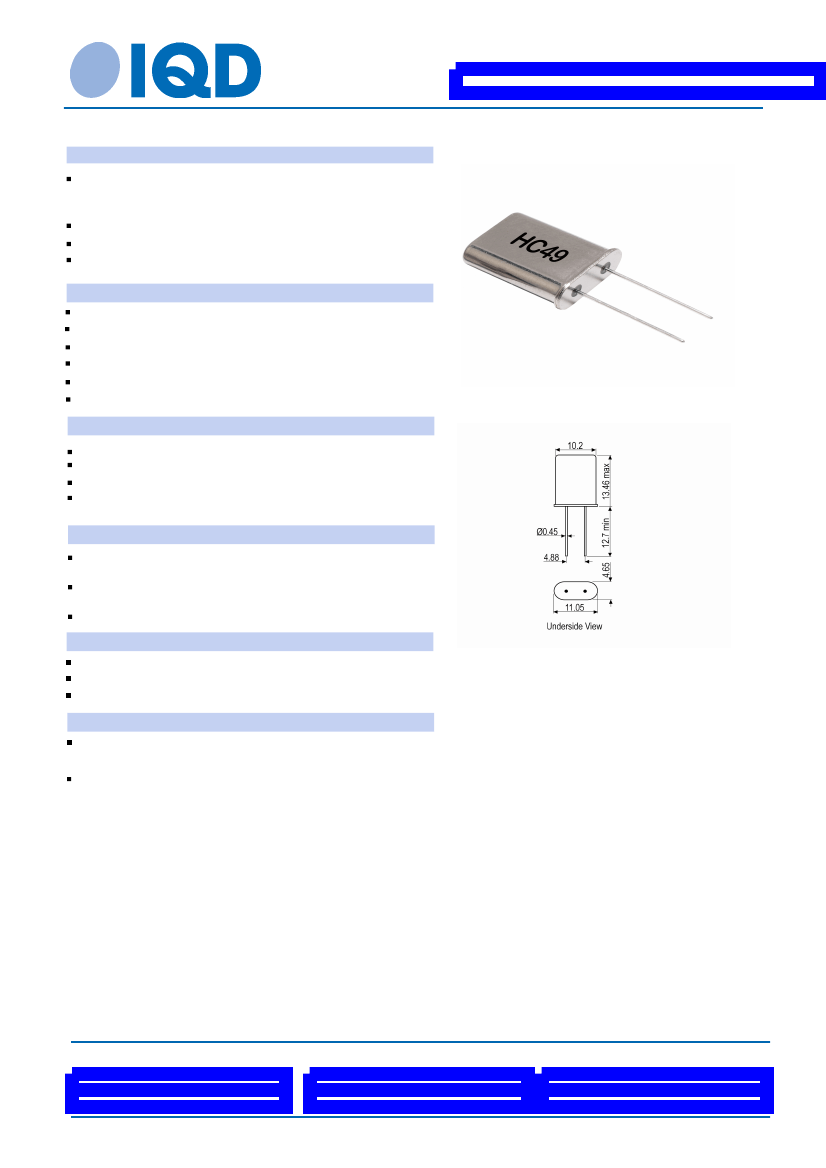

Quartz Crystal Specification
Part No. + Packaging:
LFXTAL027633Reel
Customer Part:
Description
Industry standard leaded package
Resistance welded, hermetically sealed in an inert atmosphere,
glass to metal seals on leads
Standard 2 leg HC49 package
Model
Model Issue number
Frequency Parameters
HC49
15
Frequency
Frequency Tolerance
Frequency Stability
Operating Temperature Range
Overtone Order
Ageing
Electrical Parameters
4.0MHz
±30.00ppm
±50.00ppm
-40.00 to 90.00°C
Fundamental
±3ppm typical per year
Outline (mm)
Load Capacitance
Shunt Capacitance
Drive Level
ESR
Environmental Parameters
30.00pF
7pF max
1mW max
100.00Ω max
Shock: 981m/s², 6ms, 3 times in each of 3 mutually
perpendicular planes
Vibration: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz,
98.1m/s², 30mins in 3 mutually perpendicular planes
Storage Temperature Range: -55 to 125°C
Compliance
RoHS Status (2015/863/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Reel
Pack Size: 1,000
Tape & reel in accordance with EIA-468-C
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 1
Printed on 5 Jan 22 16:50 using Part Data Sheet V1.0018
