LFXTAL059531CUTT datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> LFXTAL059531CUTT

Preview

LFXTAL059531CUTT: DescriptionParallel - Fundamental Quartz Crystal, 24.576MHz Nom; CategoryPassive components Crystal/resonator; File Size572KB，1 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFXTAL059531CUTT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFXTAL059531CUTT	-	-	View	Buy Now

LFXTAL059531CUTT Overview

Parallel - Fundamental Quartz Crystal, 24.576MHz Nom

LFXTAL059531CUTT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8339123201
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TAPE
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.003%
frequency tolerance	20 ppm
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	24.576 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L5.0XB3.2XH1.0 (mm)/L0.197XB0.126XH0.039 (inch)
Series resistance	40 Ω
surface mount	YES

Preview

Download Datasheet

View All

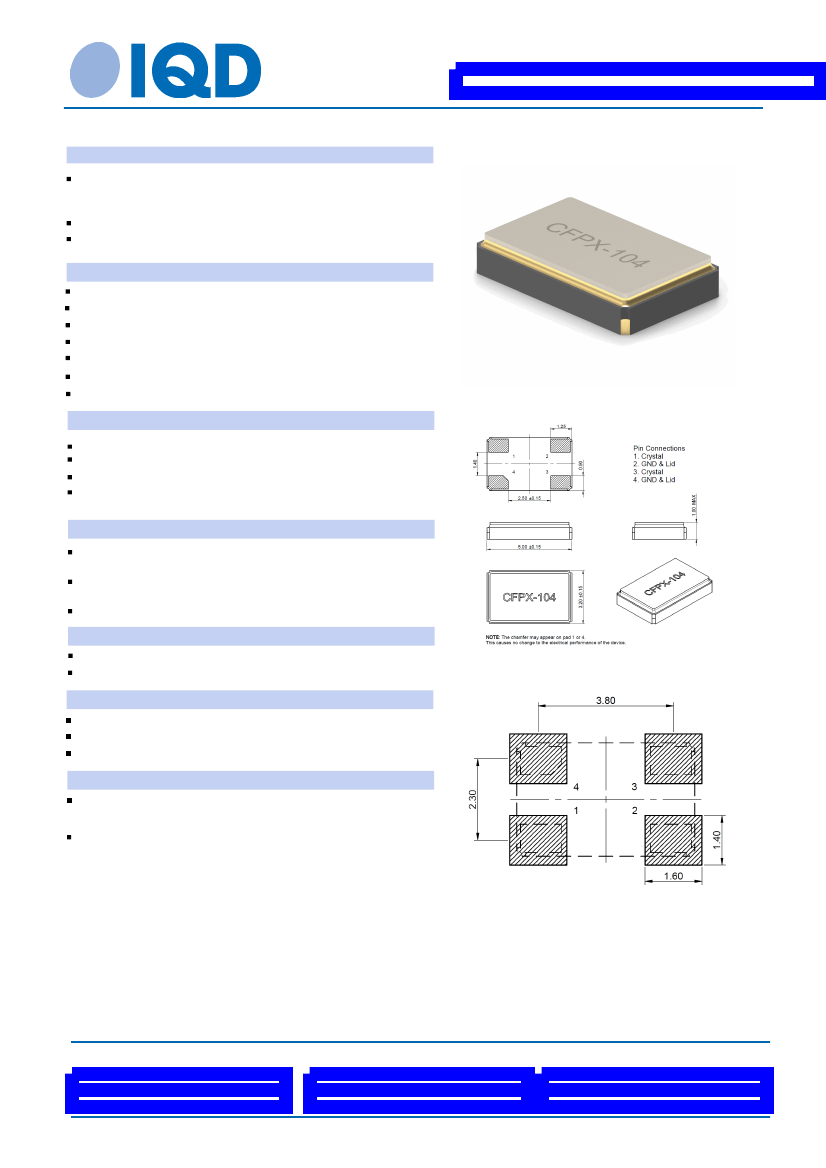

Quartz Crystal Specification

Part No. + Packaging:

LFXTAL059531Cutt

Customer Part:

Description

Standard 5x3.2mm SMD crystal with four pads.

Ceramic package with a seam sealed metal lid, hermetically

sealed.

Model

CFPX-104 iss:9.06

Model Issue number

9

Frequency Parameters

Frequency

Frequency Tolerance

Tolerance Condition

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

24.5760MHz

±20.00ppm

@ 25°C

±30.00ppm

-40.00 to 85.00°C

Fundamental

±3ppm max per year @ 25°C

Outline (mm)

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

18.00pF

7pF max

100µW max

40.00Ω max

Shock: 1500g, 0.5ms, 3 times in each of 3 mutually

perpendicular planes

Vibration: 20g (20Hz-2000Hz), 1.52mm amplitude, 20mins in 3

mutually perpendicular planes, 4 cycles

Storage Temperature Range: -55 to 125°C

Manufacturing Details

RoHS Terminations

RoHS Reflow Temp

Compliance

Au 0.3um~1.0um

260degC max for 30s max

Recommended Solder Pad Layout

RoHS Status (2015/863/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Cutt

Pack Size: 100

In tape, cut from a reel

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1

Printed on 12 Nov 21 2:18 using Part Data Sheet V1.0018
