Reverse Polarity SMA Male to Reverse Polarity
SMA Female Adapter
RF Adapters Technical Data Sheet
Configuration
Connector 1
Connector 2
Impedance
Body Style
SMA Male Reverse Polarity
SMA Female Reverse Polarity
50 Ohms
Straight
PE91331
Electrical Specifications
Description
Frequency Range
VSWR
..
Minimum
DC
Typical
Maximum
6
1.35:1
Units
GHz

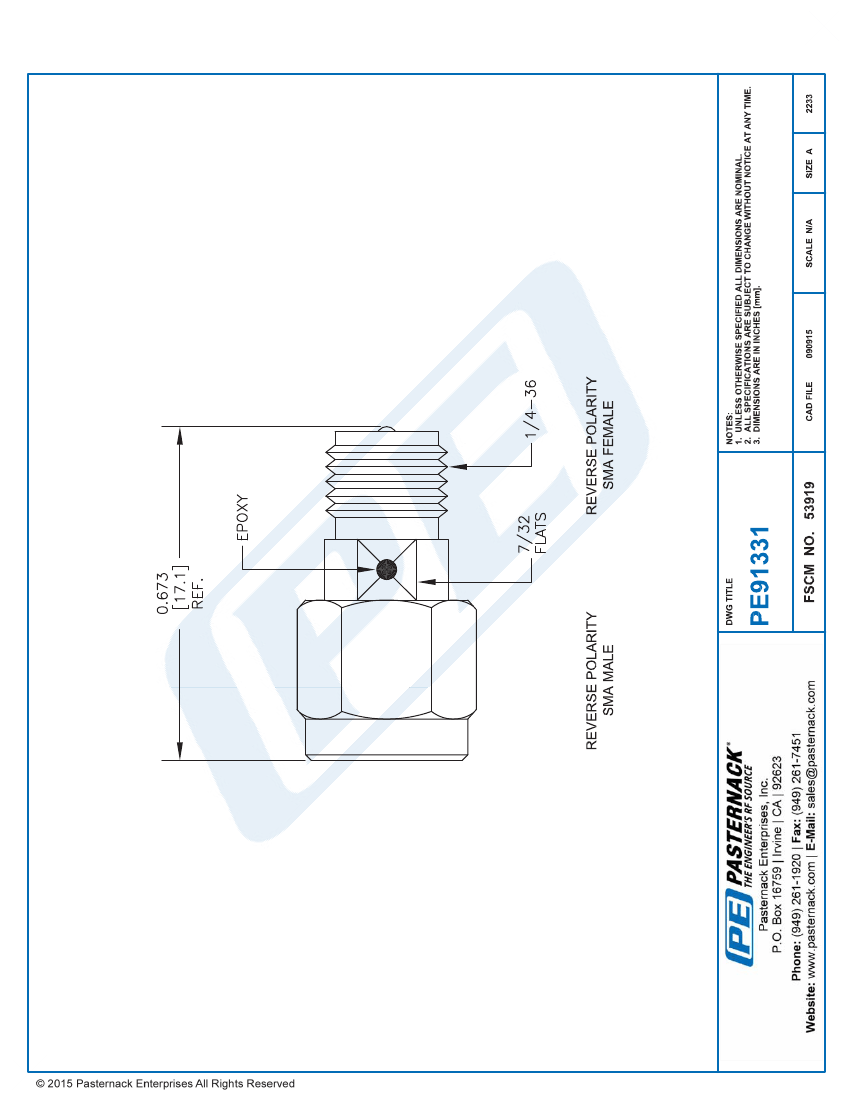

Mechanical Specifications
Size
Length
Width
.
0.673 in [17.09 mm]
0.312 in [7.92 mm]
Connector 1
SMA Male
Reverse Polarity
5/16 in.
5 in-lbs [0.57 Nm]
Description
Type
Polarity
Hex Size
Mating Torque, Max
.
Connector 2
SMA Female
Reverse Polarity
Material Specifications
Connector 1
Description
Type
Contact
Outer Conductor
Body
Coupling Nut
..
Passivated Stainless Steel
Passivated Stainless Steel
Connector 2
Plating
Gold
Material
Beryllium Copper
Material
SMA Female Reverse Polarity
Beryllium Copper
Passivated Stainless Steel
Passivated Stainless Steel
Plating
Gold
SMA Male Reverse Polarity
Environmental Specifications
Temperature
Operating Range
-65 to 125 deg C
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Reverse Polarity SMA Male to Reverse Polarity SMA Female Adapter PE91331
PE91331 REV 1.0
1
Reverse Polarity SMA Male to Reverse Polarity
SMA Female Adapter
RF Adapters Technical Data Sheet
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant
06/18/2012
PE91331
Plotted and Other Data
Notes:
Reverse Polarity SMA Male to Reverse Polarity SMA Female Adapter from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part
of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Reverse Polarity SMA Male to Reverse Polarity SMA Female Adapter PE91331
URL:
http://www.pasternack.com/sma-male-sma-female-straight-adapter-pe91331-p.aspx
PE91331 REV 1.0
