PE91330 Overview

Reverse Polarity SMA Male to Reverse Polarity SMA Male Adapter

Preview

Download Datasheet

View All

Reverse Polarity SMA Male to Reverse Polarity SMA Male Adapter

RF Adapters Technical Data Sheet

Configuration

Connector 1

Connector 2

Impedance

Body Style

SMA Male Reverse Polarity

50 Ohms

Straight

PE91330

Electrical Specifications

Description

Frequency Range

VSWR

..

Minimum

DC

Typical

Maximum

6

1.35:1

Units

GHz

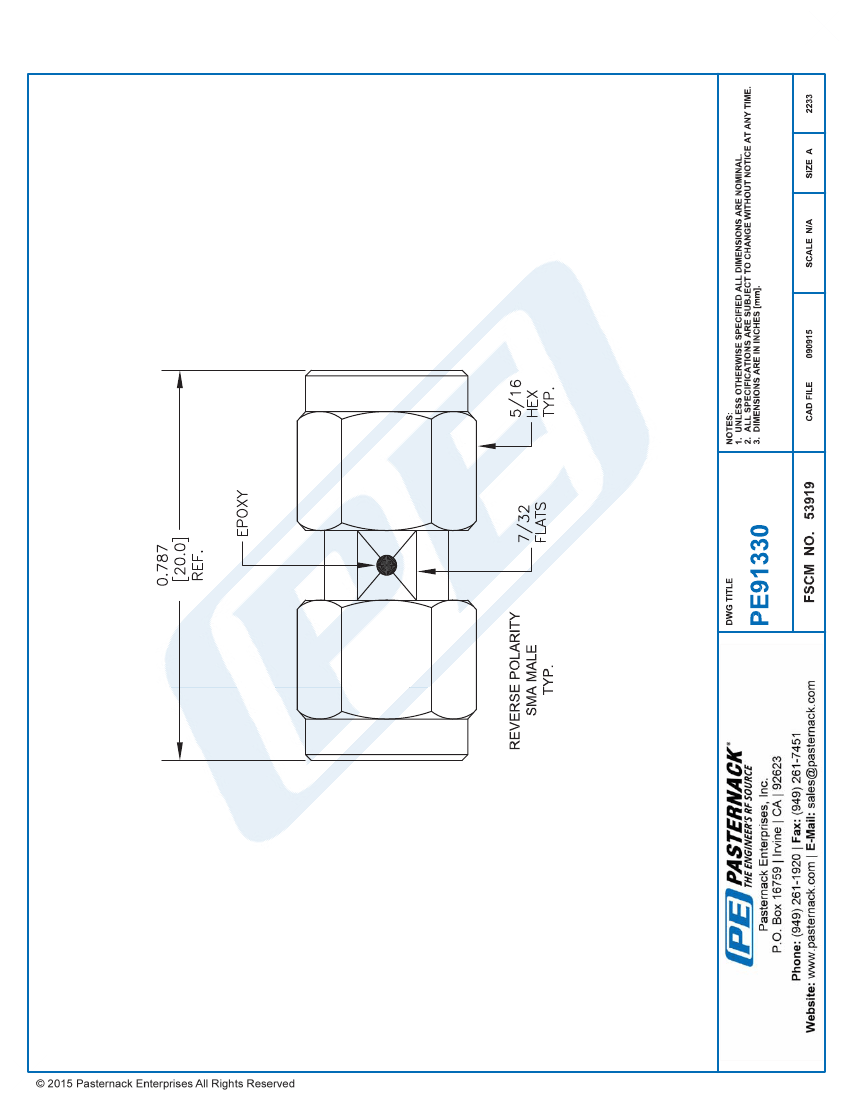

Mechanical Specifications

Size

Length

Width

.

0.787 in [19.99 mm]

0.312 in [7.92 mm]

Connector 1

SMA Male

Reverse Polarity

5/16 Inch

8 in-lbs [0.9 Nm]

Description

Type

Polarity

Hex Size

Mating Torque, Max

.

Connector 2

SMA Male

Reverse Polarity

5/16 Inch

8 in-lbs [0.9 Nm]

Material Specifications

Connector 1

Description

Type

Contact

Body

Coupling Nut

..

Connector 2

Plating

Gold

Material

Beryllium Copper

Material

SMA Male Reverse Polarity

Beryllium Copper

Passivated Stainless Steel

Plating

Gold

SMA Male Reverse Polarity

Passivated Stainless Steel

Environmental Specifications

Temperature

Operating Range

-65 to 125 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

Reverse Polarity SMA Male to Reverse Polarity SMA Male Adapter PE91330

PE91330 REV 1.0

1
