SMA Female to SMA Female Radius Right Angle Adapter
TECHNICAL DATA SHEET
Configuration
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Connector Specification 2
Body Style
SMA Female
50 Ohms
MIL-STD-348
SMA Female
50 Ohms
MIL-STD-348
Radius Right Angle
PE91325
Electrical Specifications
Frequency Range
Maximum VSWR
Maximum Insertion Loss, dB
Dielectric Withstanding Voltage, Vrms
DC to 18 GHz
1.25:1
0.2
1,000
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
0.585 [14.86]
0.26 [6.6]
0.585 [14.86]
Connector 1
Type
Mating Cycles
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Dielectric Type
Connector 2
Type
Mating Cycles
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Dielectric Type
SMA Female
500
Beryllium Copper, Gold
50µ in. minimum
Passivated Stainless Steel
PTFE
SMA Female
500
Beryllium Copper, Gold
50µ in. minimum
Passivated Stainless Steel
PTFE
Environmental Specifications
Temperature
Operating Range
-65 to +165 deg C
Compliance Certifications
(visit www.Pasternack.com for current document)
Not RoHS Compliant
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Female to SMA Female Radius Right Angle Adapter
PE91325
PE91325 REV 1
1

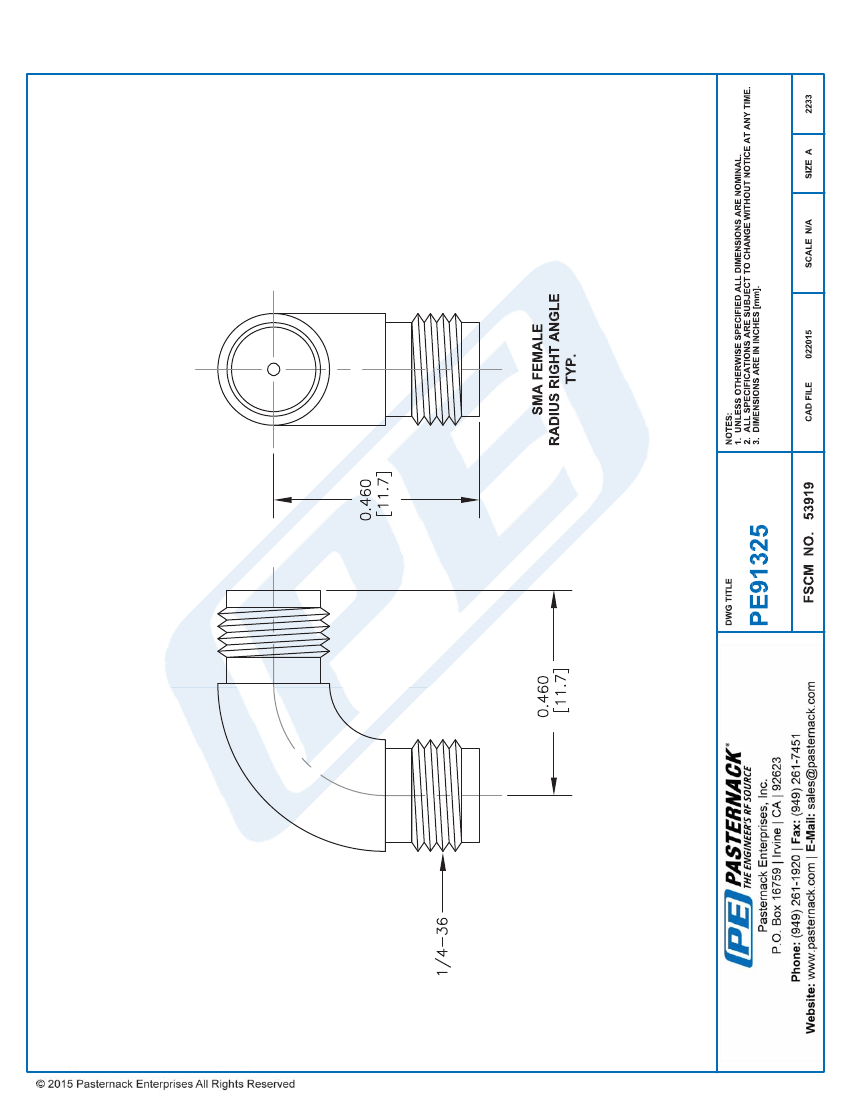

SMA Female to SMA Female Radius Right Angle Adapter
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
•
Values at +25 °C, sea level
SMA Female to SMA Female Radius Right Angle Adapter from Pasternack Enterprises has same day shipment for domestic
and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the
broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Female to SMA Female Radius Right Angle Adapter
PE91325
URL:
http://www.pasternack.com/sma-female-sma-female-radius-right-angle-adapter-pe91325-p.aspx
PE91325
PE91325 REV 1
2
