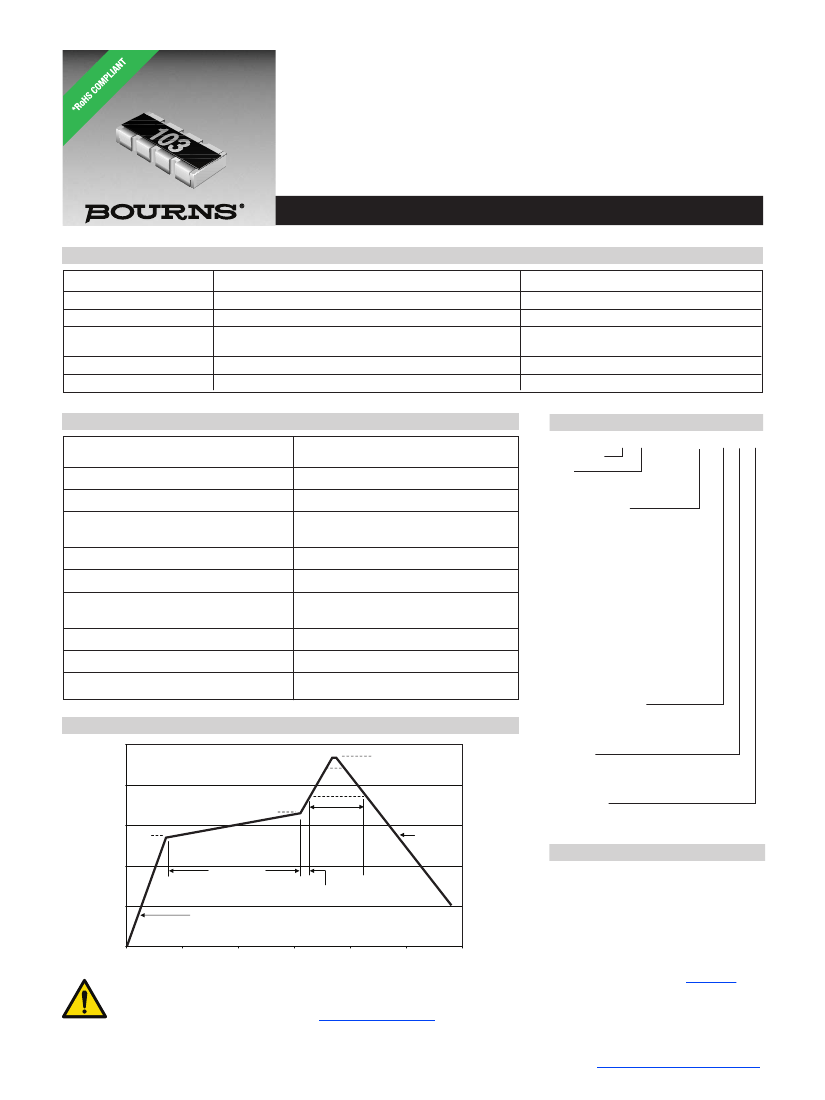

Features
n
RoHS compliant*
n
Convex and concave terminals
n
2, 4 or 8 isolated elements available
n
Resistance tolerance ±1 % and ±5 %
n
Resistance range: 10 ohms to 1 megohm
CAT/CAY 16 Series - Chip Resistor Arrays
Specifications
Requirement
Short Time Overload
Soldering Heat
Temperature Cycling (5)
Moisture Load Life
Load Life
Characteristics
Characteristics
Number of Elements

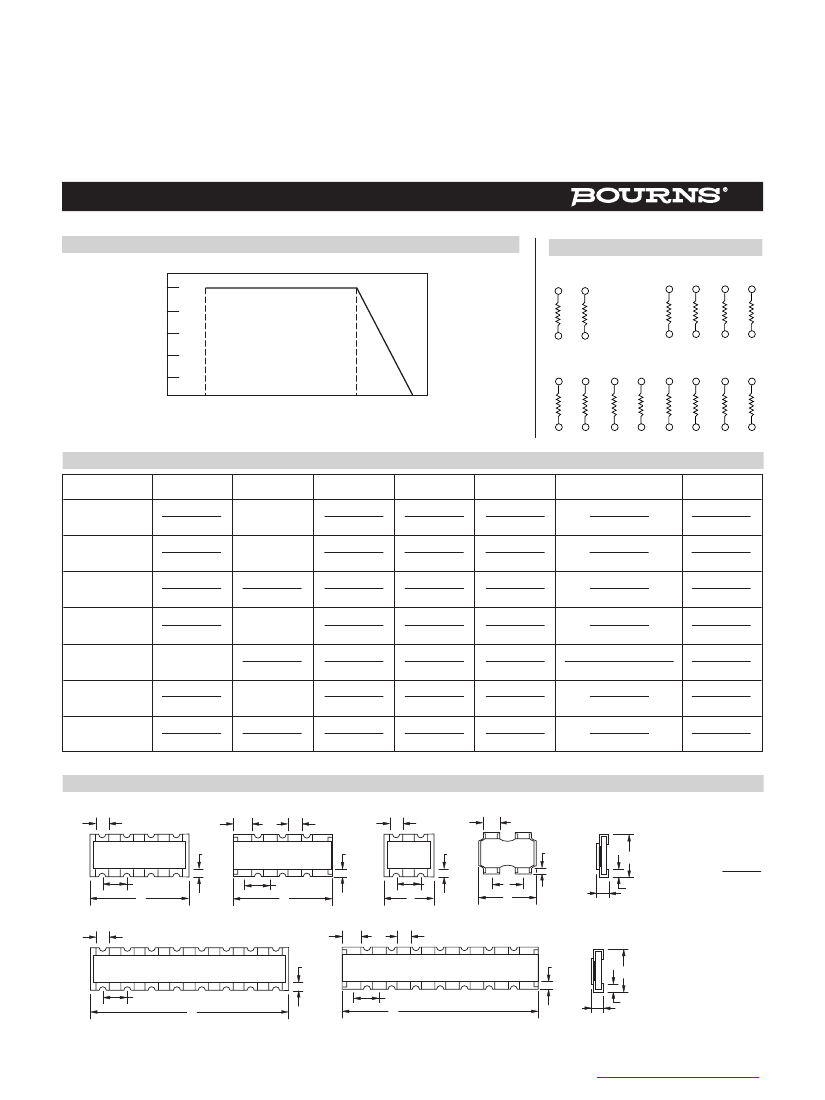

Power Rating Per Resistor @ 70 °C
Package Power Rating @ 70 °C
Temperature Coefficient of Resistance
Resistance Tolerance
Resistance Range: E24 (J), E96 + E24 (F)
Zero-Ohm Jumper < 0.05 ohm
Max. Working Voltage
Max. Overload Voltage
Operating Temp. Range
CAT16/CAY16
2 (J2), 4 (F4, J4), 8 (F8, J8)
0.0625 W
0.250 W
(0.125 W for J2)
±200 PPM/°C
±1 %, ±5 %
10 ohms - 1 megohm
50 V (25 V for CAY16-J8)
100 V (50 V for CAY16-J8)
-55 °C - 125 °C
Characteristics
±2 % +0.1 ohm
±2 % +0.1 ohm
±1 % + 0.1 ohm
±3 % +0.1 ohm
±3 % +0.1 ohm
Test Method
Rated Voltage X 2.5, 5 seconds
260 °C ±5 °C, 10 seconds ±1 second
125 °C (30 minutes) - normal (15 minutes)
-55 °C (30 minutes) - normal (15 minutes)
1000 hours
1000 hours
How To Order
Soldering Profile for RoHS Compliant Chip Resistors and Arrays
275
<1>
Maximum of 20 seconds between
+255 °C and +260 °C
260 °C peak
<1>
255 °C
225
Temperature (°C)
220 °C
190 °C
175
150 °C
60 - 90
seconds
Ramp Down
6 °C/second
60 - 120 seconds
10 seconds minimum
75
Ramp Up
3 °C/second maximum
25
Chip Arrays
Type
• CAT16 = Concave Terminations
• CAY16 = Convex Terminations
Resistance Code
• For 1 % Tolerance:
<100 ohms - “R” represents decimal
point (example: 24R3 = 24.3 ohms)
≥100 ohms - First three digits are
significant, fourth digit represents
number of zeros to follow (example:
8252 = 82.5k ohms)
• For 5 % Tolerance:
<10 ohms - “R” represents decimal
point (example: 4R7 = 4.7 ohms)
≥10 ohms - First two digits are signifi-
cant, third digit represents number of
zeros to follow (example: 474 = 470k
ohms)
• 000 = Zero Ohm Jumper
Resistance Tolerance
• J = ±5 % (2, 4, 8 resistor pkg. and for
Zero Ohm Jumper)
• F = ±1 % (4 resistor pkg. and CAT16-F8)
Resistors
• 2 = 2 Isolated Resistors
• 4 = 4 Isolated Resistors
• 8 = 8 Isolated Resistors
Terminations
• LF = Tin-plated (RoHS compliant)
CA Y 16 - 103 J 4 LF
125

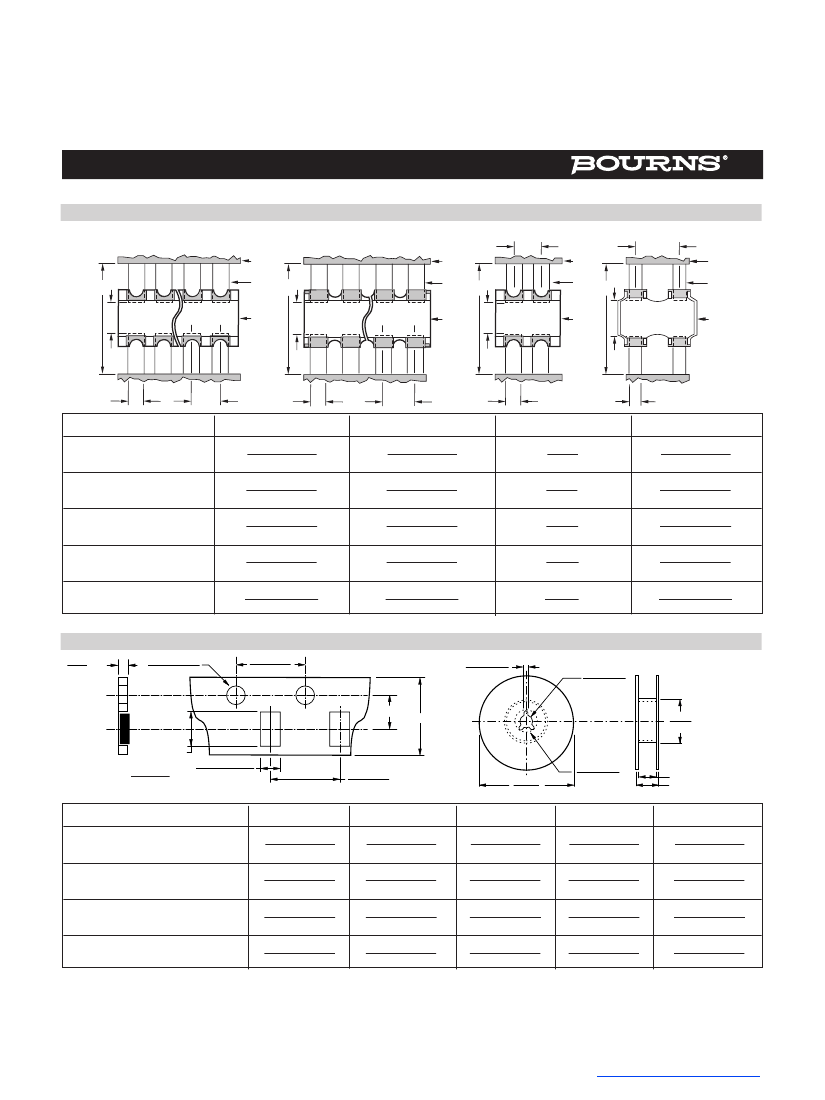

Packaging Size
J2 .......... 0606 Package Size
F4, J4 .... 1206 Package Size
F8 .......... 2406 Package Size for CAT16
J8 .......... 2406 Package Size for CAT16;
1506 Package Size for CAY16
0
50
100
150
200
250
300
Time (Seconds)
For Standard Values Used in Capacitors,
Inductors, and Resistors,
click here.
*RoHS Directive 2015/863, Mar 31, 2015 and Annex.
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
