52-PV2S240NN_15: DescriptionALL DIMENSIONS IN MM [INCH]; File Size188KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

52-PV2S240NN_15 Overview

ALL DIMENSIONS IN MM [INCH]

Preview

Download Datasheet

View All

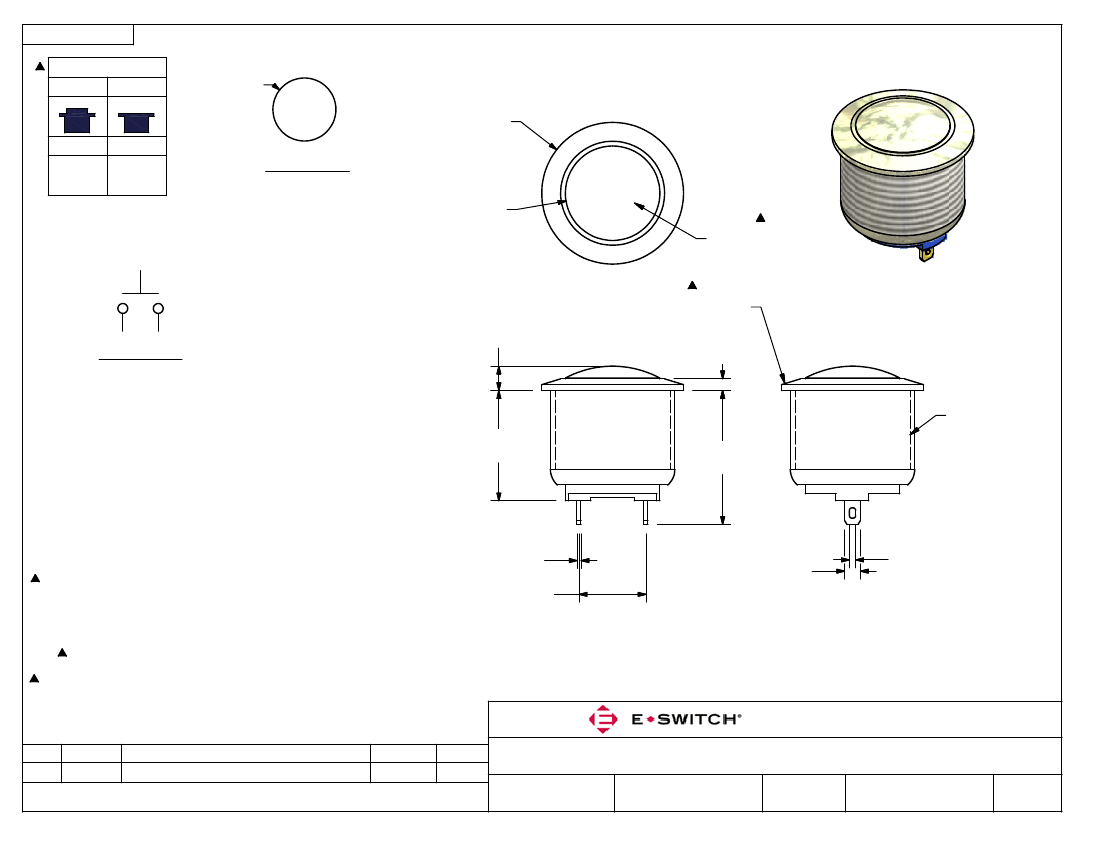

SHEET 1 OF 1

SWITCH FUNCTION

POS. 1

POS. 2

16.00

[.630 in]

18.00

[.709 in]

OFF

OPEN

(ON)

1-2

PANEL CUTOUT

MAX. PANEL THICKNESS 6.0mm

12.00

[.472 in]

(ON) = MOMENTARY

DOMED ACTUATOR

NICKEL PLATED FINISH

3.10

.50

[.122

.020

in]

BODY FINISH

NICKEL PLATED FINISH

1.50

[.059 in]

CIRCUIT: SPST

M16x1.0

14.00

.50

[.551

.020

in]

17.00

.50

[.669

.020

in]

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. CONTACT MATERIAL: SILVER

5. RATING: 2A 48VDC

6: TRAVEL: 1.5 ± 0.2mm

7. ELECTRIC LIFE: 200,000 MAKE-AND-BREAK CYCLES

8. INSULATION RESISTANCE: 1,000 MΩ MIN.

9. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE

10. CONTACT RESISTANCE: 50mΩ MAX. @ 1A 12VDC

11. OPERATING TEMP.: -20°C to 55°C

12. DENOTES CRITICAL PARAMETER.

13. INGRESS PROTECTION: IP65

14. HARDWARE SUPPLIED: O-RING AND HEXNUT

15. 2002/95/EC (ROHS) COMPLIANT

.50

[.020 in]

8.50

[.335 in]

.80

[.031 in]

2.00

[.079 in]

REV

20368

PCR NO

REVISED AND REDRAWN

DESCRIPTION

12/29/11

DATE

BGL

TITLE

SCALE

PV2S240NN

2:1

DATE

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

12/29/2011

BGL

52-PV2S240NN

DWG

REV
