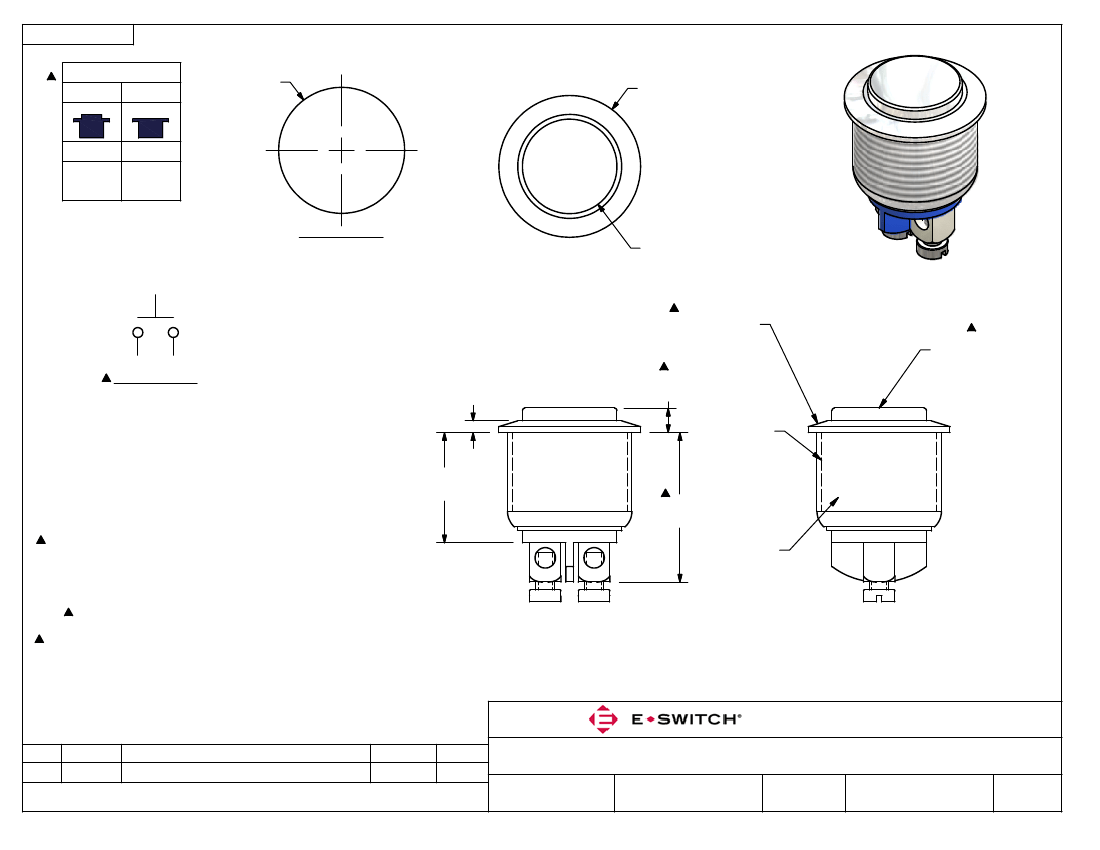

SHEET 1 OF 1
SWITCH FUNCTION
POS. 1
POS. 2
n
16.00
n
18.00
[.709 in]
[.630 in]
OFF
OPEN
(ON)
1-2
(ON) = MOMENTARY
PANEL CUTOUT
MAX. PANEL THICKNESS 6.0mm
n
12.00
[.472 in]
1
2
BODY FINISH
POLISHED STAINLESS STEEL
HIGH ACTUATOR
POLISHED
STAINLESS STEEL
CIRCUIT: SPST
1.50
[.059 in]
3.10
`
.50
[.122
`
.020
in]
M16x1.0
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: SILVER
5. RATING: 2A 48VDC
6: TRAVEL: 1.5 ± 0.2mm
7. ELECTRIC LIFE: 200,000 MAKE-AND-BREAK CYCLES
8. INSULATION RESISTANCE: 1,000 MΩ MIN.
9. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE
10. CONTACT RESISTANCE: 50mΩ MAX. @ 1A 12VDC
11. OPERATING TEMP.: -20°C to 55°C
12. DENOTES CRITICAL PARAMETER.
13. INGRESS PROTECTION: IP65
14. HARDWARE SUPPLIED: O-RING AND HEXNUT
15. 2002/95/EC (ROHS) COMPLIANT
14.00
`
.50
[.551
`
.020
in]
19.00
`
.50
[.748
`
.020
in]
SEE NOTE 13.
FOR HARDWARE
1
2
2
B
REV
20368
PCR NO
REVISED AND REDRAWN
DESCRIPTION
12/28/11
DATE
BGL
BY
TITLE
SCALE
PV2H640SS
2:1
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
12/28/2011
DR
BGL
52-PV2H640SS
DWG
REV
B
