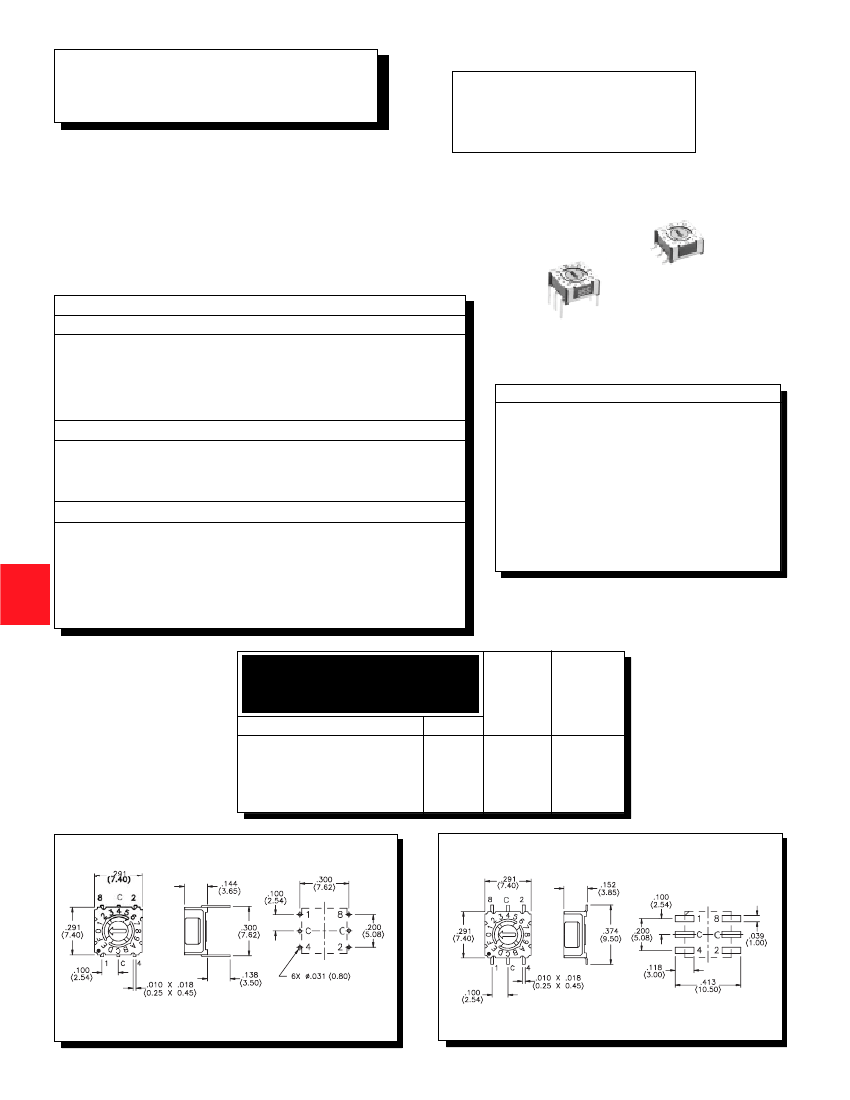

P36 & P36S SERIES
ROTARY DIP SWITCHES
FEATURES
3 + 3 terminal layout.
Completely sealed for process compatibility.
Ultra-compact size with 10 or 16 positions.
Precision designed detent action.
Thru-hole (P36 Series) & SMT (P36S Series) models.
High reliability & long life.
Clockwise or counterclockwise settable.
Solder coated terminals.
GENERAL SPECIFICATIONS
ELECTRICALS
Operating voltage
Contact rating, static
Contact rating, dynamic
Test voltage
Initial contact resistance
Insulation resistance
MECHANICALS, THERMALS
Torque
Expected life
Contact force
Operating temperature range
SOLDERING RECOMMENDATIONS
Hand soldering
Wave soldering
Reflow soldering (SMT)
Solvent washing
Aqueous cleaning
350°C max. for
4
seconds max.
(40 watt iron max.)
280°C max. for
5
seconds max.
260°C max. for
10
seconds max.
Freons or alcohol. (Do not use
chlorinated solvents)
Deionized water preferred
0.98 inch-oz. min. (0.7 Ncm min.)
10,000 switching operations
15 grams min.
-50°C to
125°C
24 VDC max.
400 mA max.
100 mA max.
250V 50Hz/1 min.
< 100 milliohms
> 100 megohms
Outside the U.S. and the UK,
this series is sold as the
CR36 series.
MATERIALS
Base
Cover
Actuator
Contacts
Terminals
Terminal sealing
Actuator seal
UL94V-O,
high temperature thermoplastic
Stainless steel
UL94V-O,
high temperature thermoplastic
Gold over nickel plated
stainless steel
Solder coated brass
Molded-in
'O'-ring
P
Thru-hole and SMT
Printed Circuit Models
Code (see truth tables pg. G16) Positions
Binary Coded Decimal
Complement of BCD
Binary Coded Hexadecimal
Complement of BCH
10
10
16
16
Model No. Model No.
Thru-hole
Mounting
(see fig. 1)
P36101
P36102
P36103
P36106
Surface
Mounting
(see fig. 2)
P36S101
P36S102
P36S103
P36S106
Figure 1
Figure 2
Mechanical outline
P.C. hole pattern
Mechanical outline
P.C. pad layout
P10
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
STANDARD OPTIONS BY SERIES:
Series
Actuators
1
Arrow shaped slot
3
Spindle
8
Slotted spindle
Codes
01
BCD
02
BCD complement
03
Hexadecimal
06
Hexadecimal Comp.
Terminals
None
Straight
V
Crimped
L254
Rt. angle 2.54 (.100")
None
SMT
ORDER GUIDE:
Make selections from the above table in sequence
to specify a complete model number.
Note that 'None' indicates that no option suffix is
required.
Example;
P36101V
Series
Actuator
Terminals
Code
P36
X
X
X
X
X
X
X
X
X
X
P36S
X
X
X
X
X
X
X

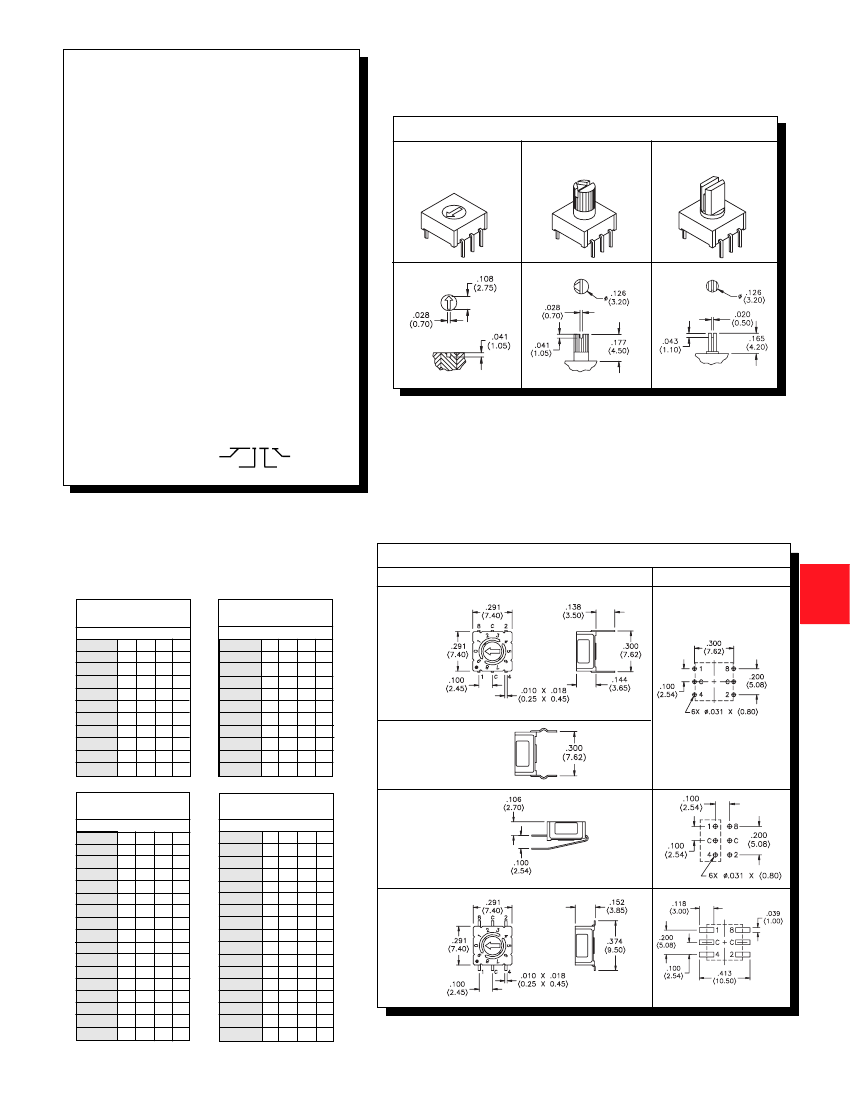

P36 & P36S SERIES
ACTUATORS
1
Arrow
shaped slot
3
Spindle
8
Slotted
spindle*
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
X
* Slotted spindle actuator is color coded to truth table code selec
tion as follows: BCD - red, BCD complement - Orange,
Hexadecimal - gray, Hexadecimal complement - white.
Tape and reel packaging available for SMT models - consult factory.
CODES
NOTE: For each dial position in tables, Common ter-
minals (C) are connected to terminal number(s)
indicated - i.e. - none or combinations of 1, 2, 4 or 8.
Each model in this series has 2 Common terminals.
BINARY CODED
DECIMAL (01)
10 Positions
Dial No. 1 2 4
0
1
2
3
4
5
6
7
8
9
COMP. OF BINARY
CODED DECIMAL (02)
10 Positions
Dial No. 1 2 4 8
0
1
2
3
4
5
6
7
8
9
MECHANICAL OUTLINES
Terminal option suffix*:
Mtg. hole pattern:
P
8
BINARY CODED
HEXADECIMAL (03)
16 Positions
Dial No. 1 2 4 8
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
COMP. OF BINARY
CODED HEXADEC. (06)
16 Positions
Dial No. 1 2 4 8
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
* 'None' indicates no option suffix is required.
P11
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
