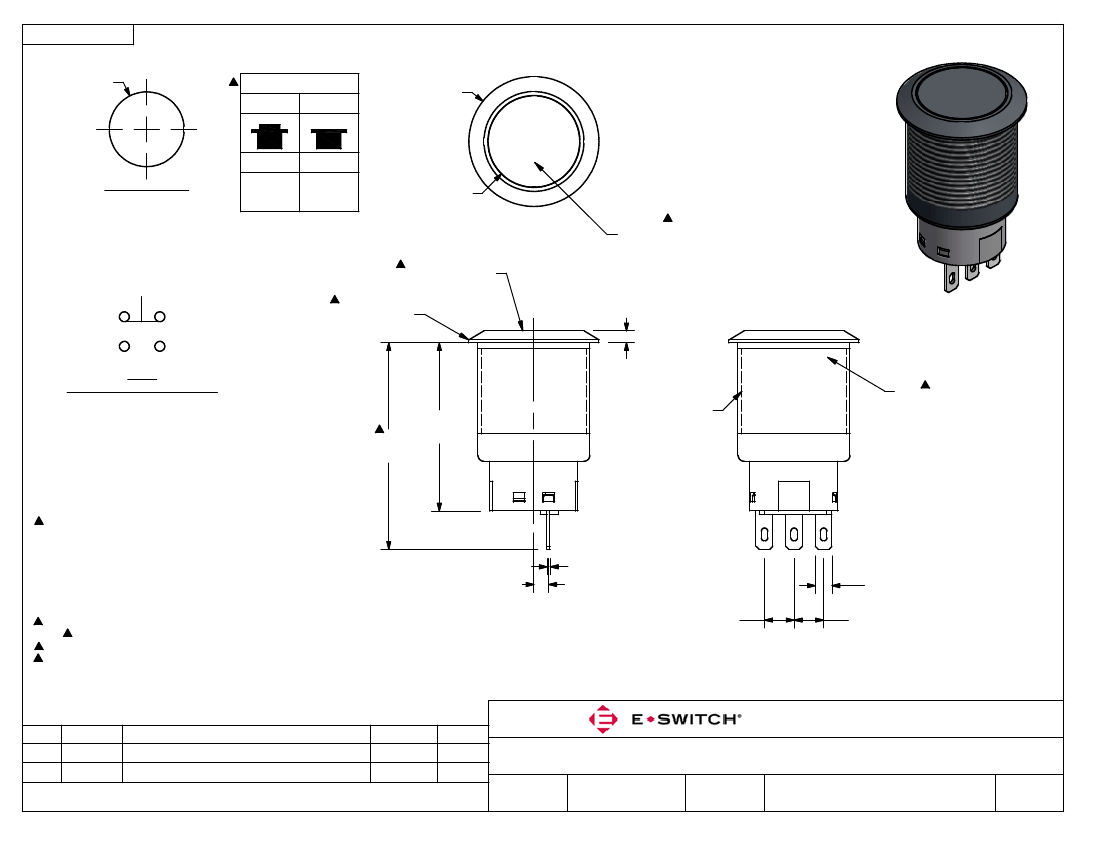

SHEET 1 OF 1
n
19.00
n
22.00
[.866 in]
[.748 in]
SWITCH FUNCTION
POS. 1
POS. 2
ON
PANEL CUTOUT
MAX. PANEL THICKNESS
11.0mm [.433]
1-3
(ON)
1-2
n
15.50
[.610 in]
(ON) = MOMENTARY
ACTUATOR FINISH
BLACK
FLAT ACTUATOR
1
1
3
2
BODY FINISH
BLACK
2.00
[.079 in]
SPDT
CONTACT CONFIGURATION
28.50
[1.122 in]
M19x1.0
NOTE 15
HARDWARE SUPPLIED
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: SILVER
5. RATING: 2A 48VDC
6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 M MIN.
8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE
9. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC
10. OPERATING TEMP.: -20° to 55°
C
C
11. TRAVEL: 2.8mm
12. DENOTES CRITICAL PARAMETER.
13. INGRESS PROTECTION: IP67
14. HARDWARE SUPPLIED: O-RING AND HEXNUT
15. 2002/95/EC (ROHS) COMPLIANT
35.00
[1.378 in]
1
2.50
[.098 in]
1
.50
[.020 in]
2
3
2.80
[.110 in]
5.00
[.197 in]
5.00
[.197 in]
B
A
REV
21027
20459
PCR NO
REMOVE LAMP TERMINALS
RELEASE FOR PRODUCTION
DESCRIPTION
2/13/13
2/6/12
DATE
EBP
BGL
BY
TITLE
SCALE
PV4F2B011
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
1.5:1
2/6/2012
DR
DWG
REV
BGL
52-PV4F2B011
B
