PUSHBUTTON SWITCH, SPDT, MOMENTARY, 6A, 28VDC, THROUGH HOLE-RIGHT ANGLE
8168SH9AV2GE Parametric
Parameter Name
Attribute value
Objectid
1468234395
Reach Compliance Code
compliant
ECCN code
EAR99
Actuator type
STANDARD PLUNGER
Other features
PANEL MOUNTABLE
body width
6.86 mm
body height
12.7 mm
Body length or diameter
12.7 mm
Contact (AC) maximum rated R load
6A@120VAC
Maximum contact current (AC)
6 A
Maximum contact current (DC)
6 A
Contact (DC) maximum rated R load
6A@28VDC
Maximum contact voltage (AC)
120 V
Maximum contact voltage (DC)
28 V
Electrical life
50000 Cycle(s)
JESD-609 code
e4
Installation features
THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature
65 °C
Minimum operating temperature
-30 °C
seal
EPOXY TERMINAL SEALED
surface mount
NO
Switch action
MOMENTARY
switch function
SPDT
Switch type
PUSHBUTTON SWITCH
Terminal surface
GOLD
Termination type
SOLDER
8168SH9AV2GE Preview
8060 Series
Alternate Action and Momentary
Pushbutton Switches
8161SHZQE2
8261SH9AV2BE2
models available, see page C-19.
8161J82ZGE22
C

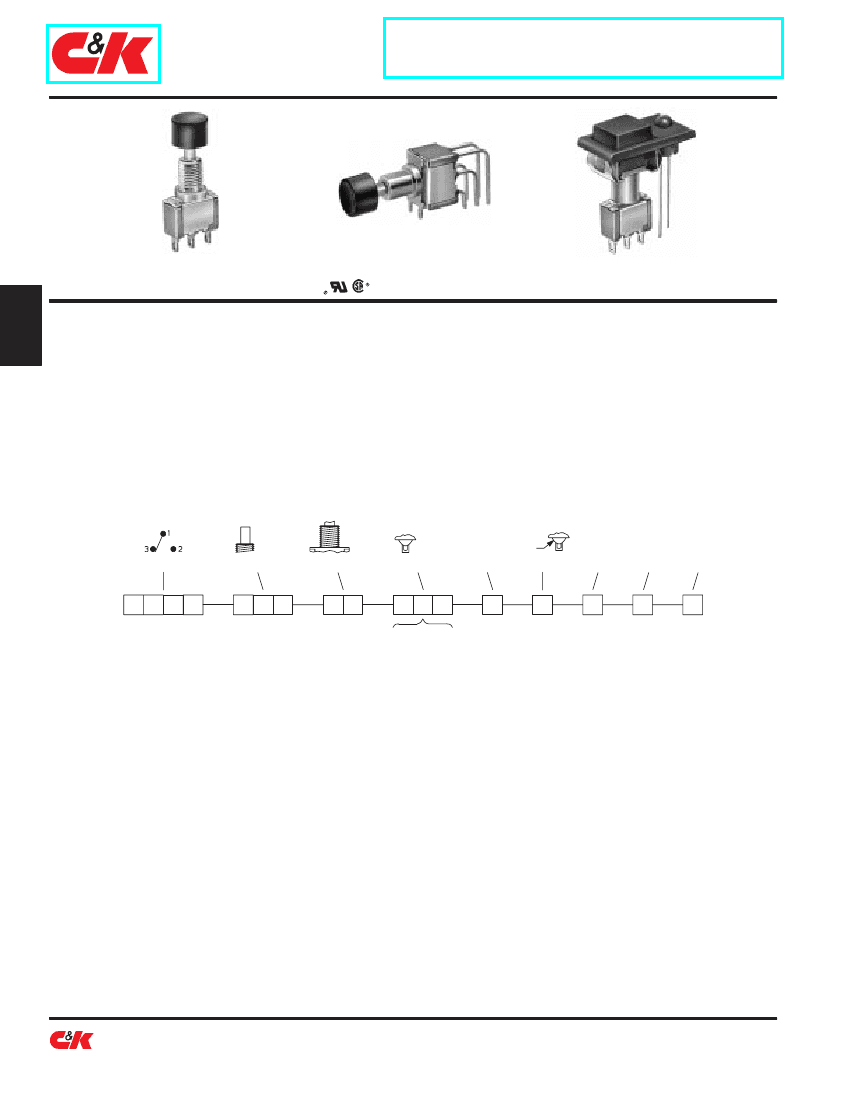

Easy Build-A-Switch
Below is a complete listing of available options for 8060 SERIES ALTERNATE ACTION AND MOMENTARY PUSHBUTTON
SWITCHES. Build-A-Switch allows you to mix and match options to create the switch you need — simply select desired option from
each category. Switches with standard options are shown on page C-19; all available options are shown and described on pages
C-19 thru C-27. When building a part number, some ordering format boxes may not be filled. Dashes, hyphens or spaces in the
part number are not significant, and are shown for clarity only. Complete HOW TO ORDER information is at the end of this section,
page C-27. Actuator caps, frames, hardware and accessories are available separately, see section K. All models have epoxy
terminal seal, and are compatible with ‘bottom-wash’ PC board cleaning methods.
SWITCH
FUNCTION
ACTUATOR
OR PLUNGER
BUSHING
TERMINATIONS
CONTACT
MATERIAL
SEAL
CAP
COLOR
FRAME
COLOR
LED
COLOR
Silver
Epoxy
Black
Black
Red
8161
8168
8261
J80
J81
J82
J86
J96
L
L1
S
S1
S2
(NONE)
H
H9
Y3
A
A3
AV1
AV2
AV3
AV4
AV5
AW
AV1
AW3
AW4
AW5
C
V2
V3
V4
V6
V7
V8
V9
V21
V31
V41
V61
V71
V81
V91
W
W1
W3
W4
W5
Z
Z3
B
G
K
L
M
Q
E
I
1
2
3
(NONE) (NONE)
1
3
2
5
3
6
COMPONENTS, INC.
C-18
57 Stanley Avenue, Watertown, MA 02172
Tel:
(617) 926-6400
Fax:
(617) 926-6846
Sales:
(800) 635-5936
8060 Series
Alternate Action and Momentary
Pushbutton Switches

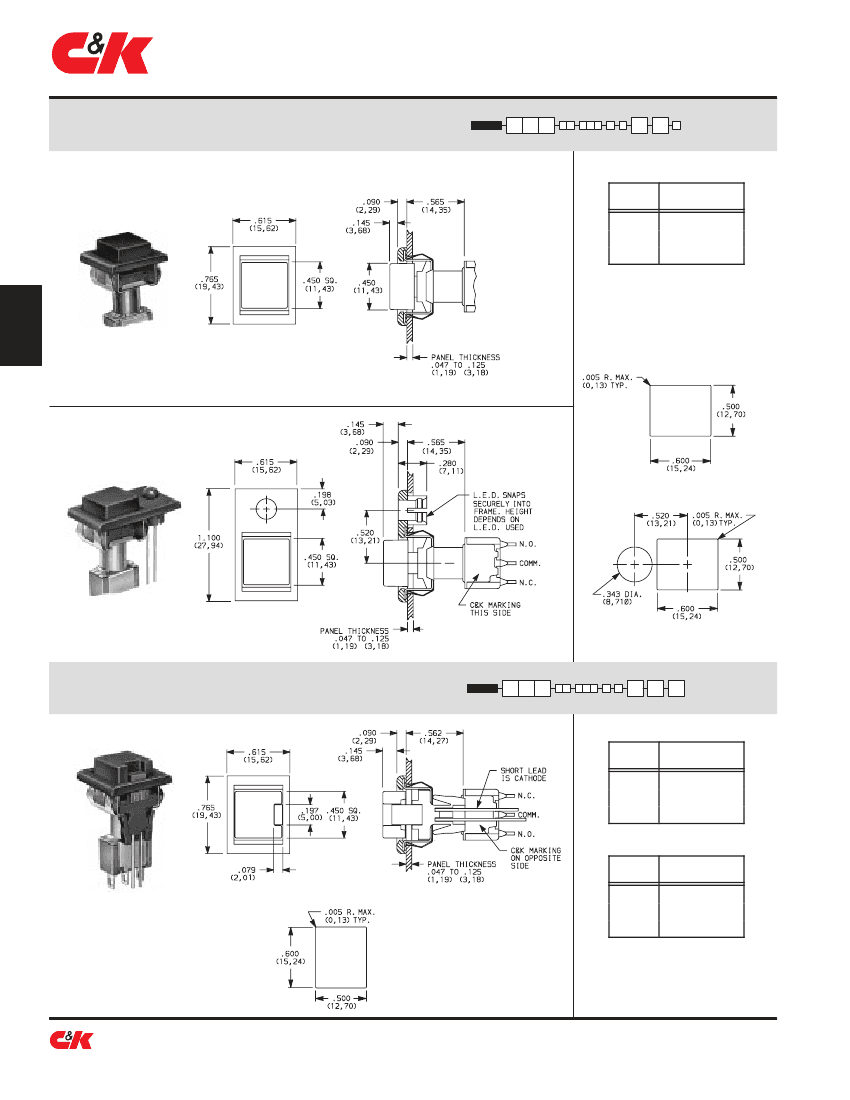

SWITCHES WITH STANDARD OPTIONS
Terminal Nos. For Reference Only
SPDT Model
U.S. Patent No. 4,095,070
Part No. Shown: 8161SHZQE2
C
Terminal Nos. For Reference Only
DPDT Model
U.S. Patent No. 4,095,070
Part No. Shown: 8261SHZQE2
SWITCH FUNCTION
SWITCH FUNCTION
POS. 1
NO.
POLES
MODEL
NO.
POS. 2
CONNECTED TERMINALS
POS. 1
POS. 2
SCHEMATIC
8161
SP
ON
ON
8168
DP
8261
ON
MOM. = Momentary
All models
with all options when ordered with G, L, M or Q contact material.
See AGENCY APPROVALS, page VIII.
CAP COLOR
ACTUATOR—SNAP-IN FRONT MOUNT
ACTUATOR OR PLUNGER
J80
No frame color choice required.
COMPONENTS, INC.
57 Stanley Avenue, Watertown, MA 02172
ÑÑÑÑ
ÑÑÑÑ
ON
MOM.
ON
2-3
23
2-1
21
SPDT
2-3,5-6
2-1,5-4
DPDT
PANEL MOUNTING
CAP COLORS
OPTION
CODE
*
COLOR
WHITE
BLACK (Std.)
RED
1
2
3
Cap Finish: matte. Other colors available, consult factory.
* Increase this dim. to .620/.625
(15,75/15,88) for .091/.125 (2,31/3,18)
thk. panels.
NOTE:
Available with C, W-W5, Z or Z3 terminations.
Tel:
(617) 926-6400
Fax:
(617) 926-6846
Sales:
(800) 635-5936
C-19
8060 Series
Alternate Action and Momentary
Pushbutton Switches
CAP COLOR
ACTUATOR OR PLUNGER
FRAME COLOR
ACTUATOR—SNAP-IN FRONT MOUNT
J81
WITH FRAME
CAP AND FRAME COLORS
OPTION
CODE
COLOR
WHITE
BLACK (Std.)
RED
1
2
3
Cap and Frame Finish: matte. Other colors
available, consult factory.
NOTE:
Available with C, W-W5, Z or Z3
terminations.
C
PANEL MOUNTING
J81 Actuator
J82

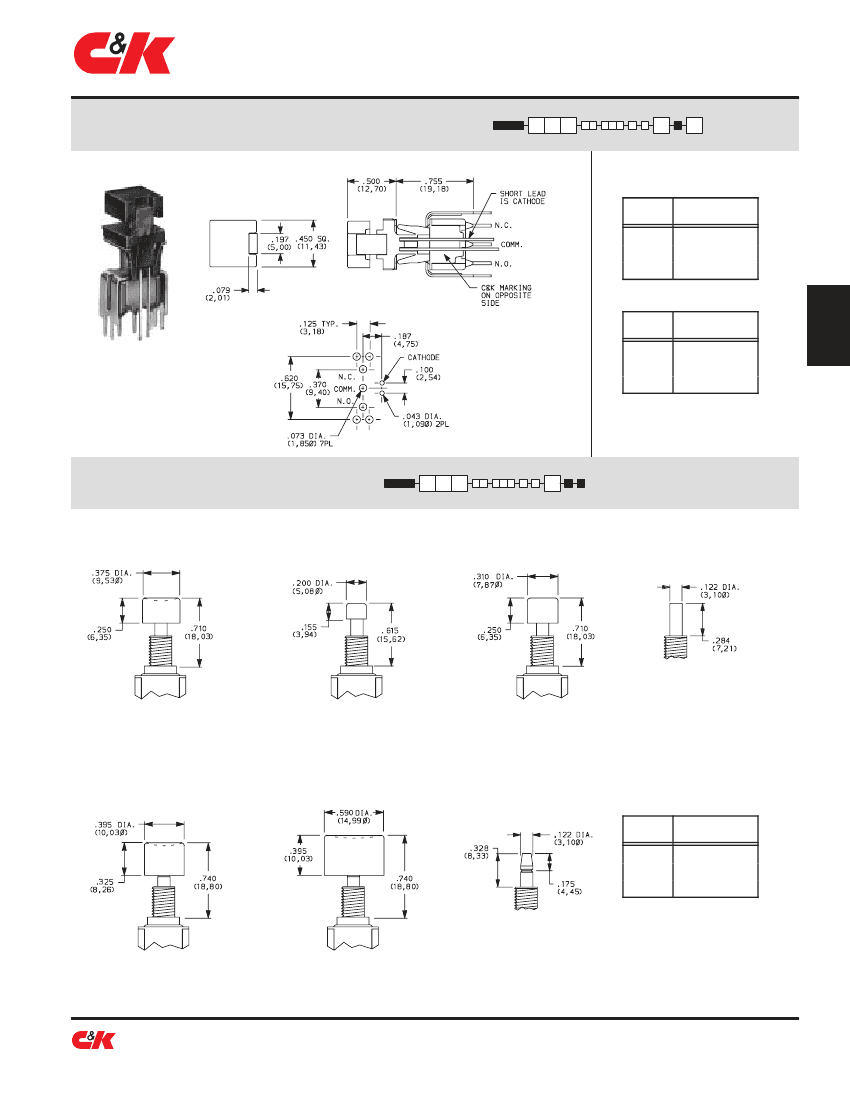

WITH FRAME FOR LED
*
J82 Actuator
*
LED not included.
See page IX for LED information.
* Increase this dim. to .620/.625 (15,75/15,88)
for .091/.125 (2,31/3,18) thk. panels.
CAP COLOR
LED COLOR
ACTUATOR—SNAP-IN FRONT MOUNT
ACTUATOR OR PLUNGER
FRAME COLOR
J86
WITH BUILT-IN LED
CAP AND FRAME COLORS
OPTION
CODE
COLOR
WHITE
BLACK (Std.)
RED
1
2
3
LED COLORS
OPTION
CODE
PANEL MOUNTING
COLOR
RED (Std.)
YELLOW
GREEN
3
5
6
*
* Increase this dim. to .620/.625 (15,75/15,88)
for .091/.125 (2,31/3,18) thk. panels.
Cap and Frame Finish: matte. Other colors
available, consult factory.
NOTE:
Available with C, W-W5, Z or Z3
terminations and SPDT models only.
See page IX for LED information.
COMPONENTS, INC.
C-20
57 Stanley Avenue, Watertown, MA 02172
Tel:
(617) 926-6400
Fax:
(617) 926-6846
Sales:
(800) 635-5936
8060 Series
Alternate Action and Momentary
Pushbutton Switches
CAP COLOR
ACTUATOR OR PLUNGER
LED COLOR
ACTUATOR—SNAP-IN FRONT MOUNT
J96
WITH BUILT-IN LED
CAP COLORS
OPTION
CODE
COLOR
WHITE
BLACK (Std.)
RED
1
2
3
PC MOUNTING
LED COLORS
OPTION
CODE
COLOR
RED (Std.)
YELLOW
GREEN
C
3
5
6
Cap Finish: matte. Other colors available,
consult factory.
NOTE:
Available with V3 termination and
SPDT models only.
See page IX for LED information.
CAP COLOR
PLUNGER
ACTUATOR OR PLUNGER
S
(STD.)
S1
S2
S, S1, S2 plunger dimensions.
Plunger material: Glass filled
nylon or glass filled polyester
(UL 94V-0).
L
SNAP FITTING
L1
SNAP FITTING
L, L1 plunger dimensions.
CAP COLORS
OPTION
CODE
COLOR
WHITE
BLACK (Std.)
RED
1
2
3
Cap Finish: gloss. Cap supplied not installed.
Other colors available, consult factory.
Plunger Material: Brass,
chrome plated.
NOTE:
When selecting plunger and cap option, bushing selection must also be made, see next page.
COMPONENTS, INC.
57 Stanley Avenue, Watertown, MA 02172
Tel:
(617) 926-6400
Fax:
(617) 926-6846
Sales:
(800) 635-5936
C-21
8060 Series

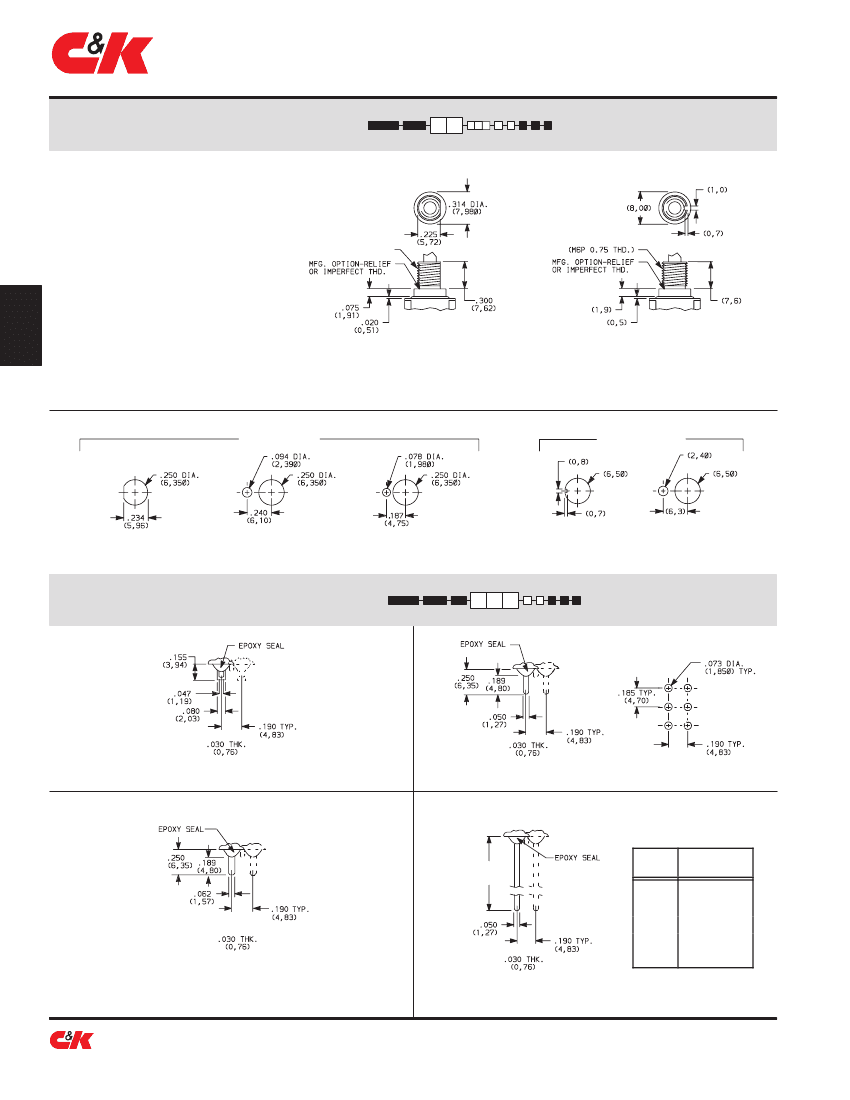

BUSHING
(NONE)
NO BUSHING CHOICE REQUIRED
(JXX ACTUATORS)
Alternate Action and Momentary
Pushbutton Switches
H
H9
Y3
UNTHREADED
METRIC
1/4 – 40 UNS-2A
C
H bushing standard with C, W-W5, Z or Z3 terminations.
H9 bushing standard with A, A3, AV1-AV5, AW-AW5 or
V2-V91 terminations.
Withstands 12 in./lbs. of torque with no distortion.
NOTE:
When selecting bushing option, plunger selection must also be made, see previous page. No bushing option choice required when any JXX actuator option is selected.
PANEL MOUNTING
1/4 IN. BUSHING
METRIC BUSHING
Withstands 12 in./lbs. of torque with no distortion.
Without Locking Ring
With Standard Locking Ring
With Small Locking Ring
Without Locking Ring
With Locking Ring
NOTE:
Two mounting nuts, locking ring and lockwasher supplied standard with threaded bushings. Optional mounting nut and locking ring styles and finishes available, see section K.
