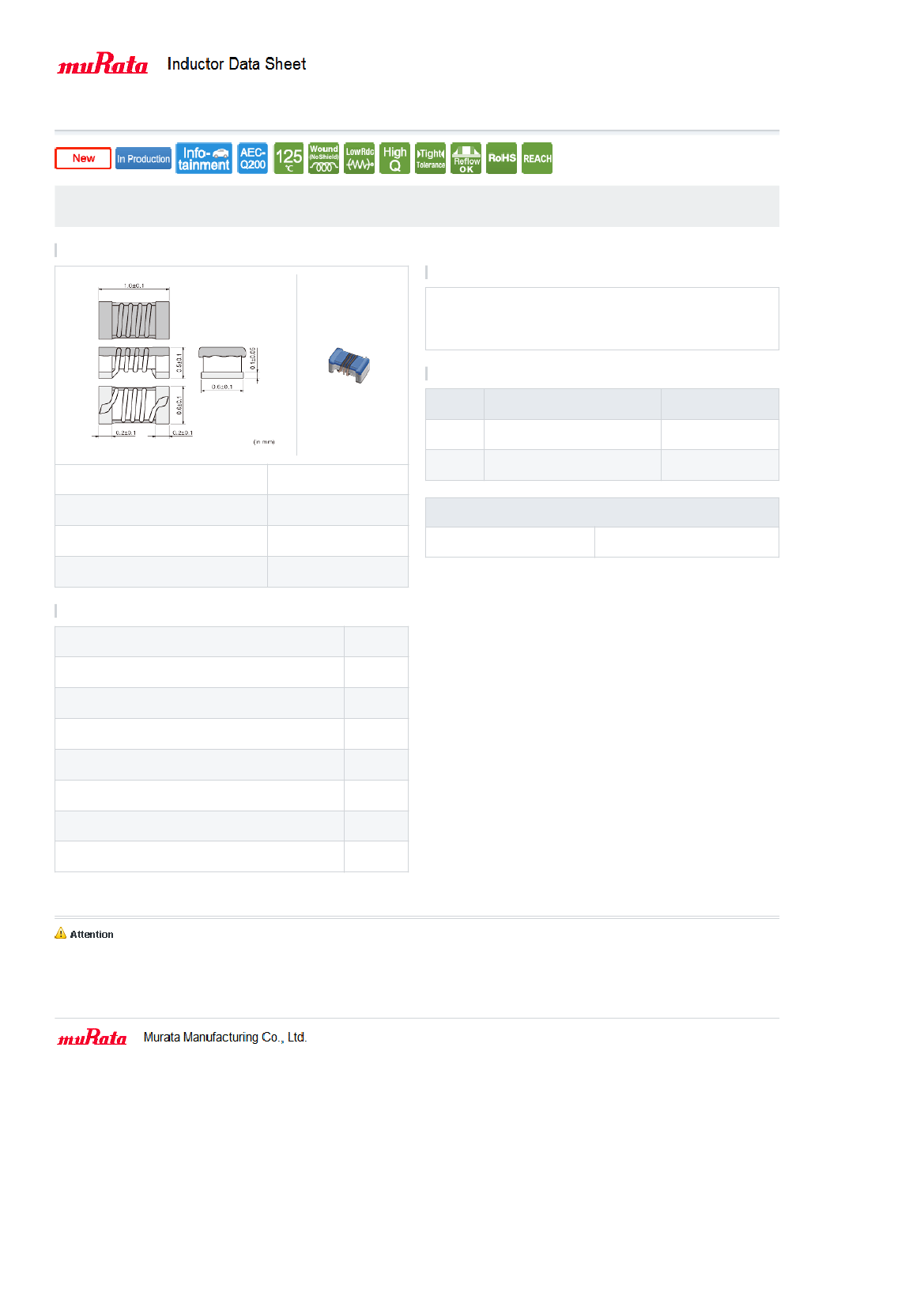

LQW15AN4N8G8Z

Description
Inductor
File Size78KB,2 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Download Datasheet Compare View All

LQW15AN4N8G8Z Overview

Inductor

LQW15AN4N8G8Z#
# indicates a package specification code.
< List of part numbers with package codes >
LQW15AN4N8G8ZD , LQW15AN4N8G8ZB
Shape
Notes

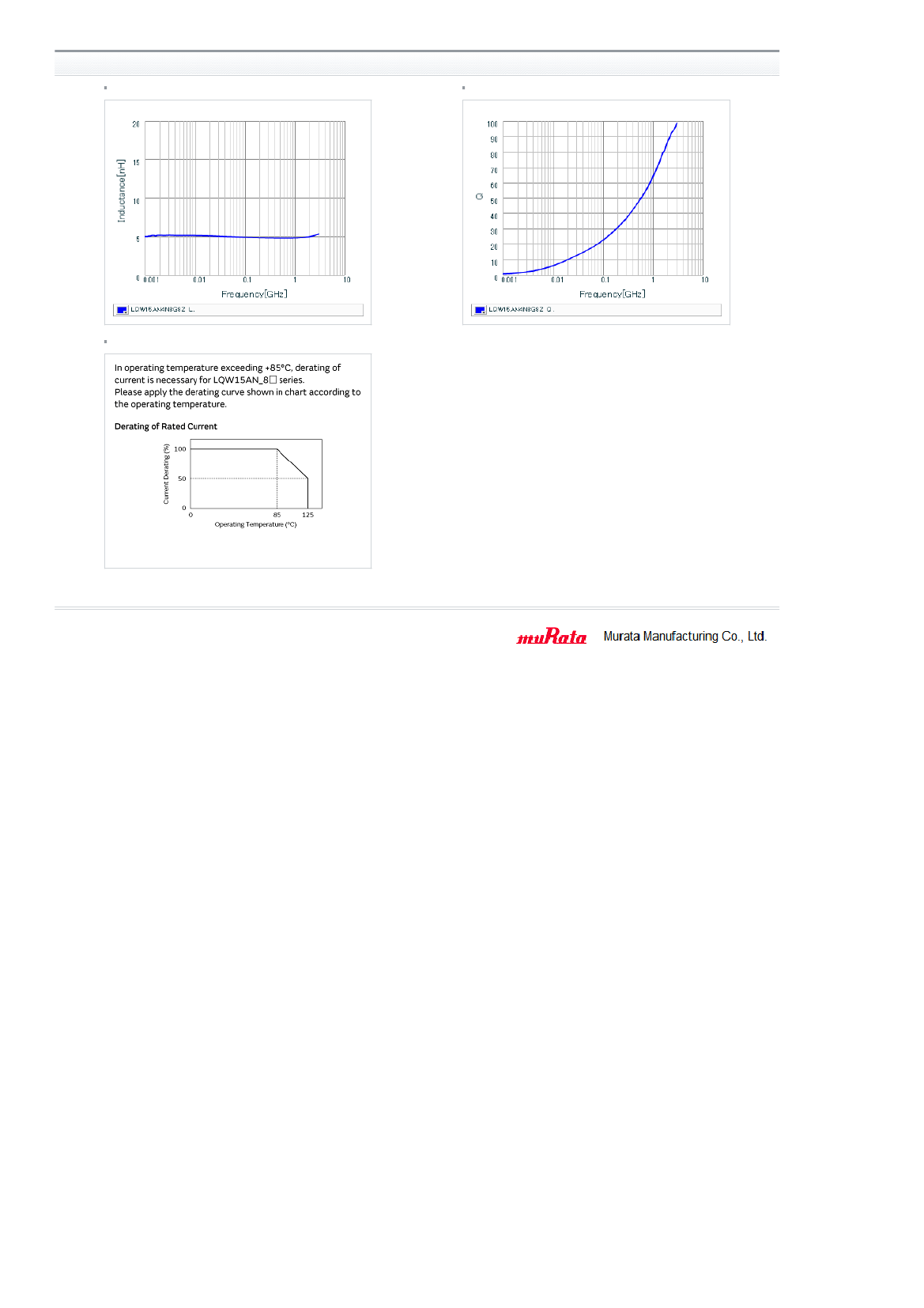

In operating temperature exceeding +85℃, derating of current is necessary for
LQW15A_80 series.
Please apply the derating curve shown in chart according to the operating
temperature.
Please confirm the below "Notice (Rating)".
References
Packaging
code
Specifications
φ180mm Paper taping
Packing in bulk
L size
W size
T size
Size code in inch (mm)
1.0 ±0.1mm
0.6 ±0.1mm
0.5 ±0.1mm
0402 (1005)
Minimum quantity
10000
500
Mass (Typ.)
1 piece
0.0009g
Specifications
Inductance
Inductance test frequency
Rated current (Itemp) (Based on Temperature rise)
Max. of DC resistance
Q (min.)
Q test frequency
Self resonance frequency (min.)
Operating temperature range (Self-temperature rise is not included)
4.8nH ±2%
100MHz
1200mA
0.071Ω
30
250MHz
8GHz
-55∼125℃
1 of 2
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : http://www.murata.com/
Last updated: 2016/04/21
