SIDACtor Protection Thyristors
Description
PxxH Series SIDACtor Protection Thyristor protect telecommunications equipment such as ADSL
Modems,Router, , Telephone, CCTV Camera,Digital Video Record,Video Capture Card,Twisted-pair
video transmitter,CATV Splitter.....Etc.
PxxH Series SIDACtor Protection Thyristor are used to enable equipment to meet various regulatory
requirements including GR 1089, ITU K.20/21,IEC 61000-4-5, YD/T 1082,YD/T 993,YD/T
950,TIA-968-A ,TIA-968-B
Package DO-41
Fast Delivery Time
Features
Compared to surge suppression using other technologies, PxxH Series devices offer absolute surge protection regardless of the
surge current available and the rate of applied voltage (dv/dt). PxxH Series devices:
•
100% Lead-Free(RoHs
Compliant )
•
Cannot be damaged by voltage
•
Eliminate hysteresis and heat dissipation typically found with clamping devices
•
Eliminate voltage overshoot caused by fast-rising transients
•
Are non-degenerative
•
Have low capacitance, making them ideal for high-speed transmission equipment
Electrical
Characteristics
Parameter
Definition
Peak Off-state Voltage
— maximum voltage that can be applied while maintaining off state
Switching Voltage
— maximum voltage prior to switching to on state
Holding Current
— minimum current required to maintain on state
Switching Current
— maximum current required to switch to on state
On-state Current
— maximum rated continuous on-state current
On-state Voltage
— maximum voltage measured at rated on-state current
Off-state Capacitance
— typical capacitance measured in off state
Leakage Current
— maximum peak off-state current measured at V
DRM
Peak Pulse Current
— maximum rated peak impulse current
Peak One-cycle Surge Current
— maximum rated one-cycle AC current
Rate of Rise of Current
— maximum rated value of the acceptable rate of rise in current over time
V
DRM
V
S
I
H
I
S
I
T
V
T
C
apacitance
I
DRM
I
PP
I
TSM
di/dt
1
Revised:February 25,2014
www.huaandz.com
ShenZhen
HuaXinAn Electronics Co.,Ltd
Electrical
Characteristics
V
DRM
@I
DRM=
5μA
V
min
P11H
P13H
P15H
P18H
P23H
P26H
P31H
P35H
90
120
140
170
190
220
275
320
V
S
@100V/
μs
V
max
130
160
180
220
260
300
350
400
mA
min
150
150
150
150
150
150
150
150
mA
max
800
800
800
800
800
800
800
800
A
max
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
I
H
I
S
I
T
(SIDACtor Protection Thyristors )
V
T
@I
T
=1.0Amps
Capacitance
@1MHz,2V bias
Part Number
V
max
5
5
5
5
5
5
5
5
pF
55
35
40
40
30
30
30
30
Notes:
-All measurements are made at an ambient temperature of 25°C .Ipp applies to -40°C through +85°C temperature
range .
-Off-state capacitance(Co) is typical value.
*For surge ratings,see next page.
2
Revised:February 25,2014
www.huaandz.com
ShenZhen
HuaXinAn Electronics Co.,Ltd
Surge Ratings
I
pp
2
x
10µs
Series
H
Amps
150
(SIDACtor Protection Thyristors )
I
pp
8x20µs
Amps
150
I
pp
10x160µs
Amps
90
I
pp
10x560µs
Amps
50
I
pp
10x1000µs
Amps
35
I
pp
5x320µs
Amps
25
I
pp
5x310µs
Amps
75
I
pp
10x360µs
Amps
75
I
TSM
50/60Hz
di/dt
Amps/µs
500
Amps
20
Thermal Considerations
Package
DO-41
Symbol
Parameter
Operating Junction Temperature Range
Storage Temperature Range
Junction to Ambient on prited circuit
Value
-40 to +150
-65 to +150
90
Unit
°C
°C
°C /W
T
J
T
S
R
θJA

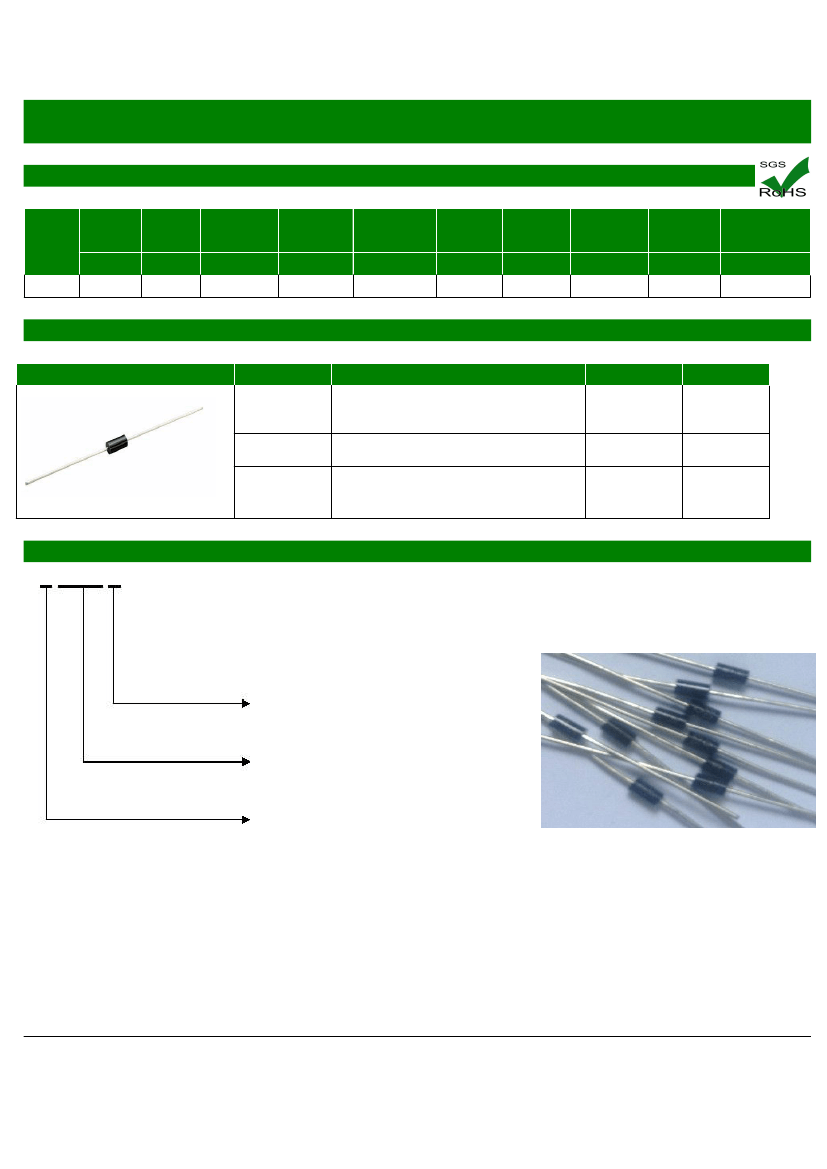

Description of Part Number
P
31
H
I
pp
Rating H:(10x1000µs)35A
Median Voltage
P
=SIDACtor
Protection Thyristor
P31H Photo
Fast Delivery Time
3
Revised:February 25,2014
www.huaandz.com
ShenZhen
HuaXinAn Electronics Co.,Ltd
Packing Options
Package Type
H
Description
DO-41 Tape and Reel Pack
Packing
Quantity
(SIDACtor Protection Thyristors )
Industry Standard
EIA STD RS-296E
5000 PCS

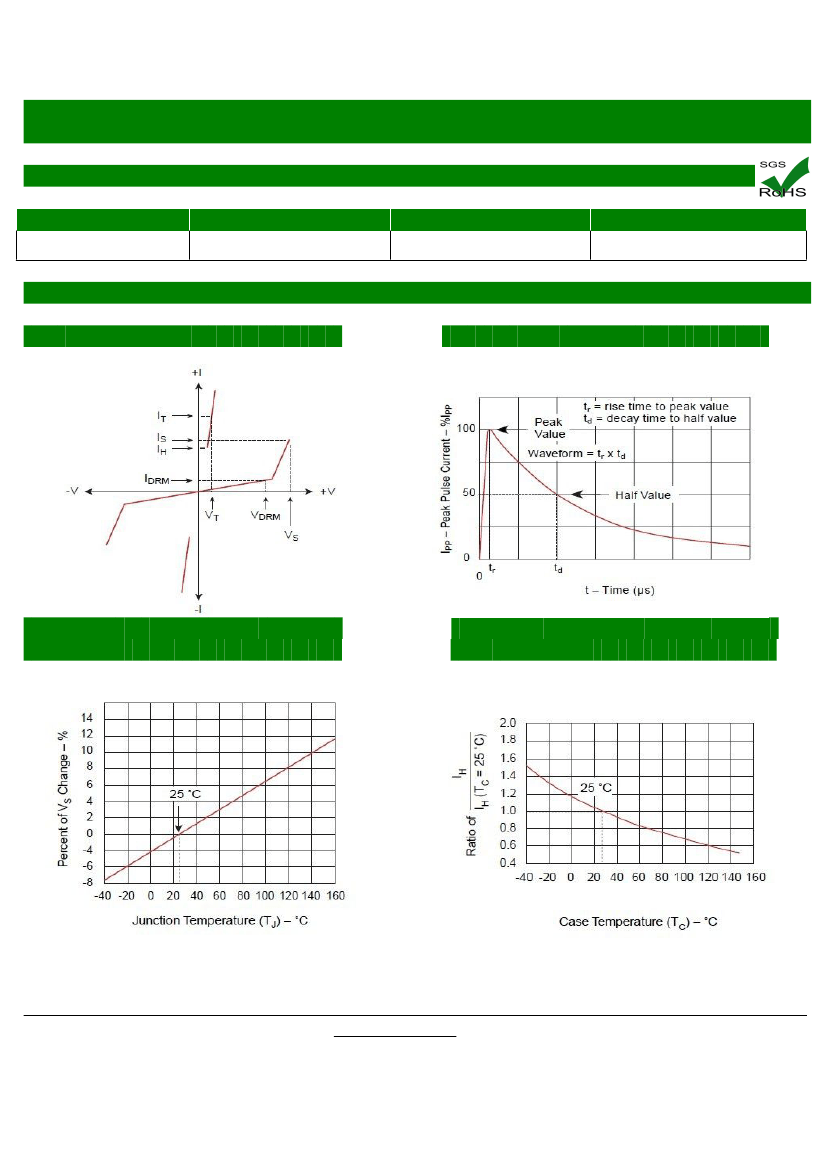

Characteristics Curve
V-I Characteristics
Tr x Td Pulse Waveform
Normalized Vs Change Versus Junction
Temperature
Normalized DC Holding Current Versus
Case Temperature
