3199BB273T016MPA1 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 3199BB273T016MPA1

3199BB273T016MPA1: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 50% +Tol, 10% -Tol, 27000uF, Stud Mount, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size168KB，7 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

3199BB273T016MPA1 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 50% +Tol, 10% -Tol, 27000uF, Stud Mount, CAN, ROHS COMPLIANT

3199BB273T016MPA1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2127365569
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	27000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	35.41 mm
dielectric materials	ALUMINUM (WET)
ESR	21.3 mΩ
length	67.51 mm
Manufacturer's serial number	3199
Installation features	STUD MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Screw Ends
polarity	POLARIZED
positive tolerance	50%
Rated (DC) voltage (URdc)	16 V
ripple current	5900 mA
series	3199
surface mount	NO
Terminal pitch	12.7 mm
Terminal shape	BINDING POST

Preview

Download Datasheet

View All

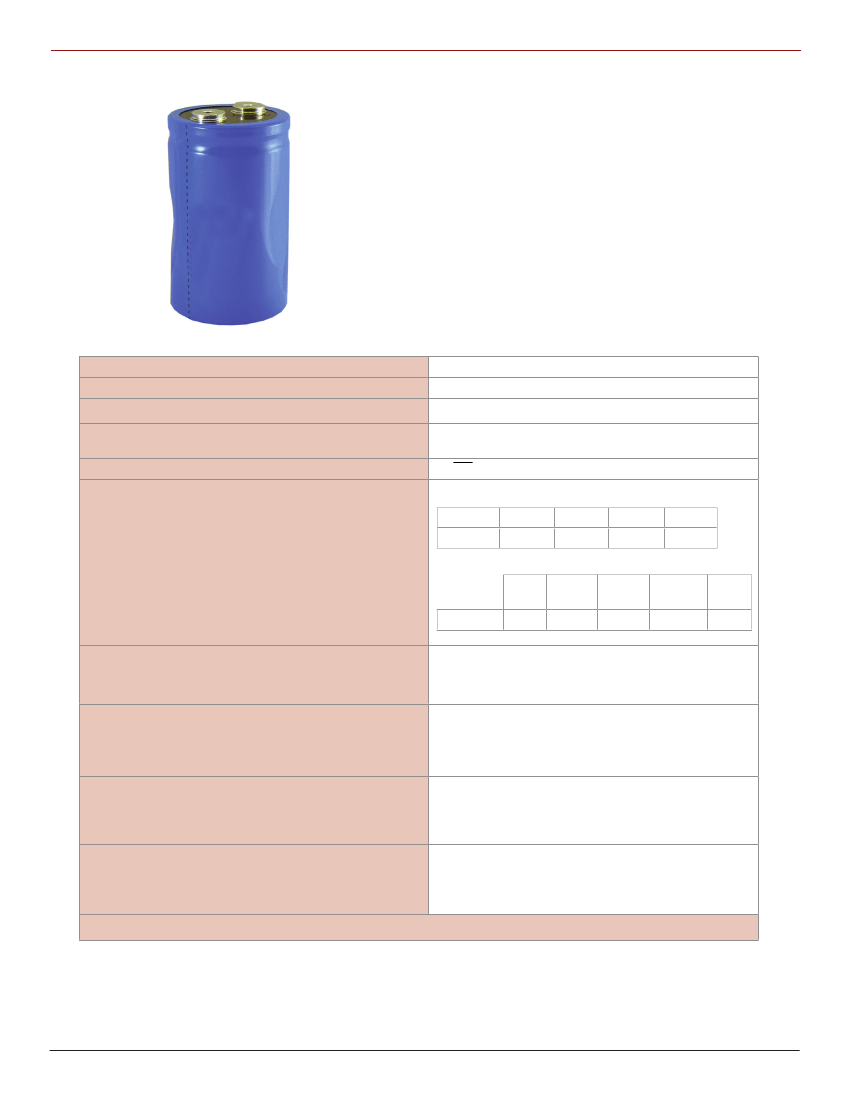

Type 3199 Aluminum Electrolytic, Screw Terminals

Screw Terminal Capacitors for Power Output Filtering

With twice the capacitance of Type 3191 capacitor, Type 3199

extends output filtering performance into higher power,

especially with cold temperature requirements. Standard

encasement is with the capacitor element compressed onto

an aluminum peg in the can bottom and a phenolic peg in

the top. Optional Rilled construction is available. With rilled

construction the element is secured by rills, spoon shaped

dimples in the side of the can. Rilled construction offers

the industries highest vibration and shock withstanding

capability and excellent heat transfer.

Highlights

- Stud mount available

- High current application

- Industrial applications

- Smoothing and filtering

- Audio power supplies

–55 ºC to +85 ºC

7.5 Vdc to 75 Vdc

3900 µF to 1.2 F

–10% +30%

–10% +50%

≤6√CV µA (6 mA max.) at 5 minutes

Ambient Temperature

45 °C

2.24

Frequency

60 Hz 120 Hz

16 – 100 V

Low Temperature Characteristics

0.90

1.00

300 Hz

1.05

1000 Hz

1.10

≥10

kHz

1.15

55 °C

2.00

65 °C

1.73

75 °C

1.41

85 °C

1.00

Specifications

Temperature Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Leakage Current

Ripple Current Multipliers

Impedance ratio: Z

–20⁰C

∕ Z

+25⁰C

≤ 8 (16–50 Vdc)

≤ 4 (63–75Vdc)

Endurance, 5000 h at rated voltage and 85 ºC

Δ Capacitance: ±10%

ESR ≤ 200% of limit

DCL ≤ 100% of limit

Storage, 500 h at 85 ºC

Δ Capacitance: ±10%

ESR ≤ 175% of limit

DCL ≤ 200% of limit

10 to 500 Hz, 0.75 mm or 10 g* if less, 3 directions, 2 h ea

Δ Capacitance: ±5%

no visible damage or leakage

*15 g if rilled construction

RoHS Compliant

Endurance Life Test

Shelf Life Test

Vibration

CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
