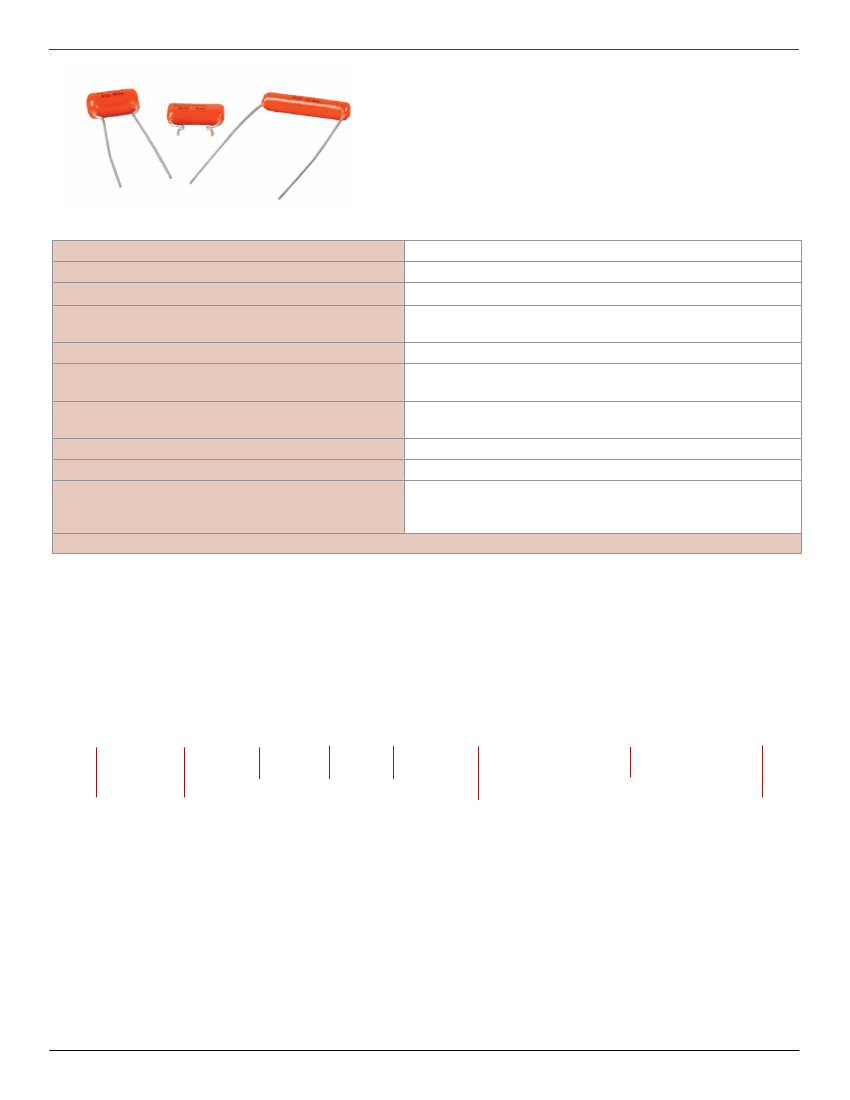

Type 715P/717P, Orange Drop®, High Voltage, Polypropylene Film/Foil
Type 715P/717P are high AC voltage, film/foil polypropylene
capacitors. Well suited for high AC voltage applications requiring
corona free performacnce. These capacitors are ideal in high
frequency, high pulse current applications and offer excellent stability,
virtually linear temperature coefficient.
Highlights
Specifications
Capacitance Range
Capacitance Tolerance
Rated Voltage
Operating Temperature Range
Lead Wire
Corona Start Voltage (typical)
Dielectric
Construction
Encapsulations
Insulation Resistance
- Very low dissipation factor
- High dV/dt rating
470 pF to .015 µF
±1% to ±10%
800/900 Vac (1800/2000 Vdc)
–55 ºC to 85 ºC
+105 ºC with proper voltage derating
Tinned copper clad steel, .032” (0.8) diameter, #20 AWG
800 Vac units: 950 - 1000 V RMS
900 Vac units: 1050 - 1100 V RMS
Polypropylene film; utilizing a floating common of metallized polypropyl-
ene, which provides self-healing characteristics
Non-inductively wound with extended foil, internal series section design
Conformal coating of flame retardant orange epoxy (meets UL94V-0)
400,000 MΩ minumum at +25 ºC
20,000 MΩ minumum at +85 ºC
2,000 MΩ minumum at +105 ºC
RoHS Compliant
Part Numbering System
Dimensions in inches, metric (mm) in parenthesis.
715P/717P
222
5
800
L
B
3
(XXXX)
Capacitance
Series
717P Pressed Profile
Capacitance
Tolerance
9 = ±10%
5 = ±5%
3 = ±3%
2 = ±2%
1 = ±1%
715P Round Profile 222 = 2200 pF
AC Voltage
Rating
Case
Code
Terminal
A = Straight Lead
B = Hairpin Crimp
C = Captive Crimp *
D = Hockey Stick Crimp
Lead
Length
1 = 0.187 (4.7) ±0.030 (0.8)
2 = 0.250 (6.4) ±0.030 (0.8)
3 = 1.250 (32) Minimum
(Custom lead lengths available)
Suffix
May be added
by factory to
denote special
construction
*Terminal C has a lead length of 0.156 (4.0) ±0.020 (0.5) therefore it is not necessary to indicate the lead length digit. The Captive Crimp is designed for circuit
boards with hole sizes of .044 (1.1) to .048 (1.2) in diameter.
1
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
Type 715P/717P, Orange Drop®,High Voltage, Polypropylene Film/Foil
Ratings
Cap.
(µF)
0.00047
0.00056
0.00068
0.00082
0.001
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.01
0.012
0.015
0.00047
0.00056
0.00068
0.00082
0.001
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.01
0.012
0.015
Catalog
Part Number
715P4715800L
715P5615800L
715P6815800L
715P8215800L
715P1025800L
715P1225800L
715P1525800L
715P1825800L
715P2225800L
715P2725800L
715P3325800L
715P3925800L
715P4725800L
715P5625800L
715P6825800L
715P8225800L
715P1035800L
715P1235800L
715P1535800L
717P4715800L
717P5615800L
717P6815800L
717P8215800L
717P1025800L
717P1225800L
717P1525800L
717P1825800L
717P2225800L
717P2725800L
717P3325800L
717P3925800L
717P4725800L
717P5625800L
717P6825800L
717P8225800L
717P1035800L
717P1235800L
717P1535800L
L Max
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
1.125 (28.5)
Dia Max
.29 (7.4)
.30 (7.6)
.32 (8.1)
.28 (7.1)
.28 (7.1)
.29 (7.4)
.31 (7.9)
.32 (8.1)
.34 (8.6)
.36 (9.2)
.38 (9.7)
.41 (10.4)
.43 (10.9)
.46 (11.7)
.49 (12.5)
.53 (13.5)
.57 (14.5)
.61 (15.5)
.67 (17.0)
.21 (5.4)
.22 (5.6)
24 (6.1)
.20 (5.1)
.20 (5.1)
.21 (5.4)
.31 (7.9)
.23 (5.9)
24 (6.1)
.25 (6.4)
.27 (6.9)
.29 (7.4)
.29 (7.4)
.32 (8.1)
.34 (8.6)
.38 (9.7)
.43 (10.9)
.44 (11.2)
.50 (12.7)
H Max
.35 (8.9)
.36 (9.2)
.37 (9.4)
.33 (8.4)
.33 (8.4)
.35 (8.9)
.36 (9.2)
.38 (9.7)
.40 (10.2)
.42 (10.7)
.44 (11.2)
.46 (11.7)
.49 (12.5)
.52 (13.2)
.55 (14.0)
.58 (14.7)
.63 (16.0)
.67 (17.0)
.72 (18.3)
.39 (9.9)
.40 (10.2)
.42 (10.7)
.38 (9.7)
.38 (9.7)
.39 (9.9)
.41 (10.4)
.42 (10.7)
.45 (11.4)
.47 (11.9)
.50 (12.7)
.55 (14.0)
.57 (14.5)
.60 (15.3)
.63 (16.0)
.69 (17.5)
.73 (18.5)
.79 (20.1)
.85 (21.6)
Seated
Height
.60 (15.3)
.61 (15.5)
.62 (15.8)
.58 (14.7)
.58 (14.7)
.60 (15.3)
.61 (15.5)
.63 (16.0)
.65 (16.5)
.67 (17.0)
.69 (17.5)
.71 (18.0)
.74 (18.8)
.77 (19.6)
.80 (20.3)
.83 (21.2)
.88 (22.4)
.92 (23.4)
.97 (24.6)
.64 (16.3)
.65 (16.5)
.67 (17.0)
.63 (16.0)
.63 (16.0)
.64 (16.3)
.66 (16.8)
.67 (17.0)
.70 (17.8)
.72 (18.3)
.75 (19.1)
.80 (20.3)
.82 (20.8)
.85 (21.6)
.88 (22.4)
.94 (23.9)
.98 (24.9)
1.04 (26.4)
1.10 (27.9)
Type 715P, 800 Vac Standard Sizes/Ratings
95000
87000
79000
72000
65000
60000
53000
49000
44000
40000
36000
33000
30000
28000
25000
23000
21000
19000
17000
95000
87000
79000
72000
65000
60000
53000
49000
44000
40000
36000
33000
30000
28000
25000
23000
21000
19000
17000
0.029
0.029
0.029
0.030
0.030
0.030
0.030
0.030
0.030
0.030
0.031
0.031
0.031
0.031
0.031
0.031
0.032
0.032
0.033
0.029
0.029
0.029
0.030
0.030
0.030
0.030
0.030
0.030
0.030
0.031
0.031
0.031
0.031
0.031
0.031
0.032
0.032
0.033
0.039
0.040
0.040
0.043
0.043
0.044
0.044
0.044
0.045
0.045
0.046
0.046
0.047
0.048
0.049
0.051
0.053
0.055
0.058
0.039
0.040
0.040
0.043
0.043
0.044
0.044
0.044
0.045
0.045
0.046
0.046
0.047
0.048
0.049
0.051
0.053
0.055
0.058
Max dV/dt
(Volts/µsec)
Max % D.F. @
20 KHz
100 KHz
Type 717P, 800 Vac Standard Sizes/Ratings
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
2

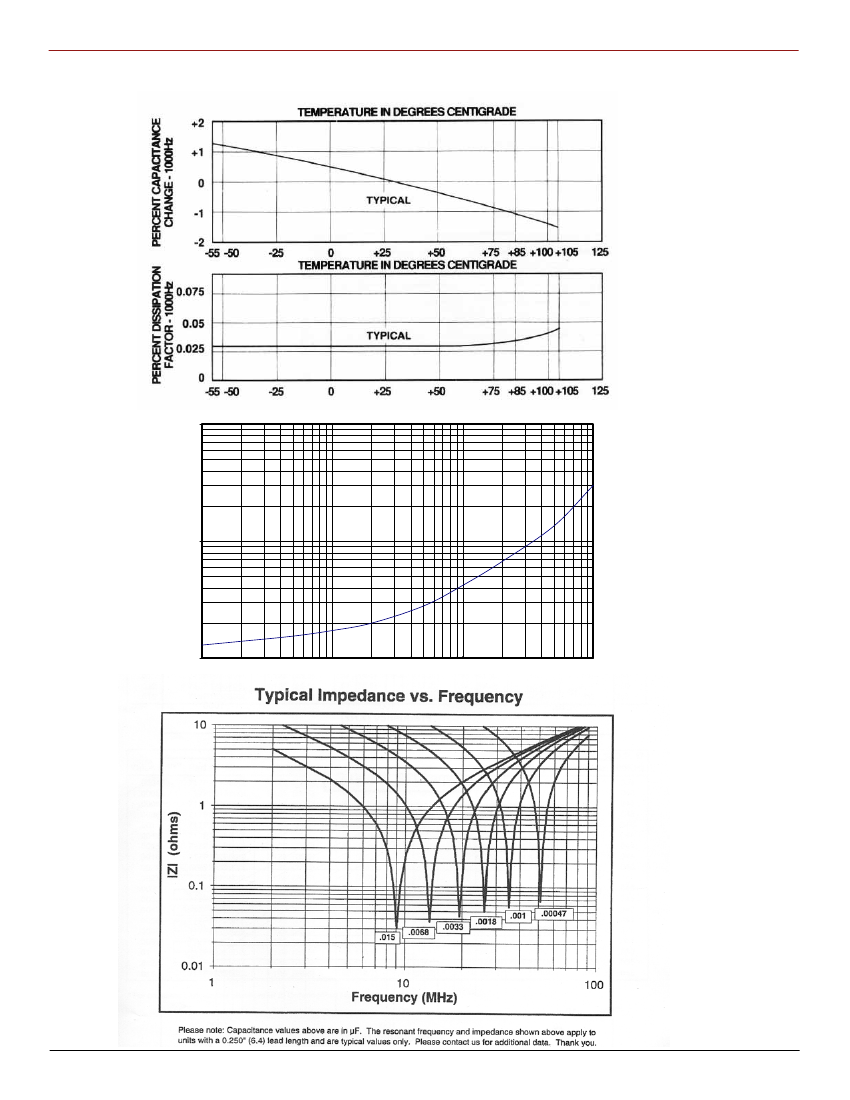

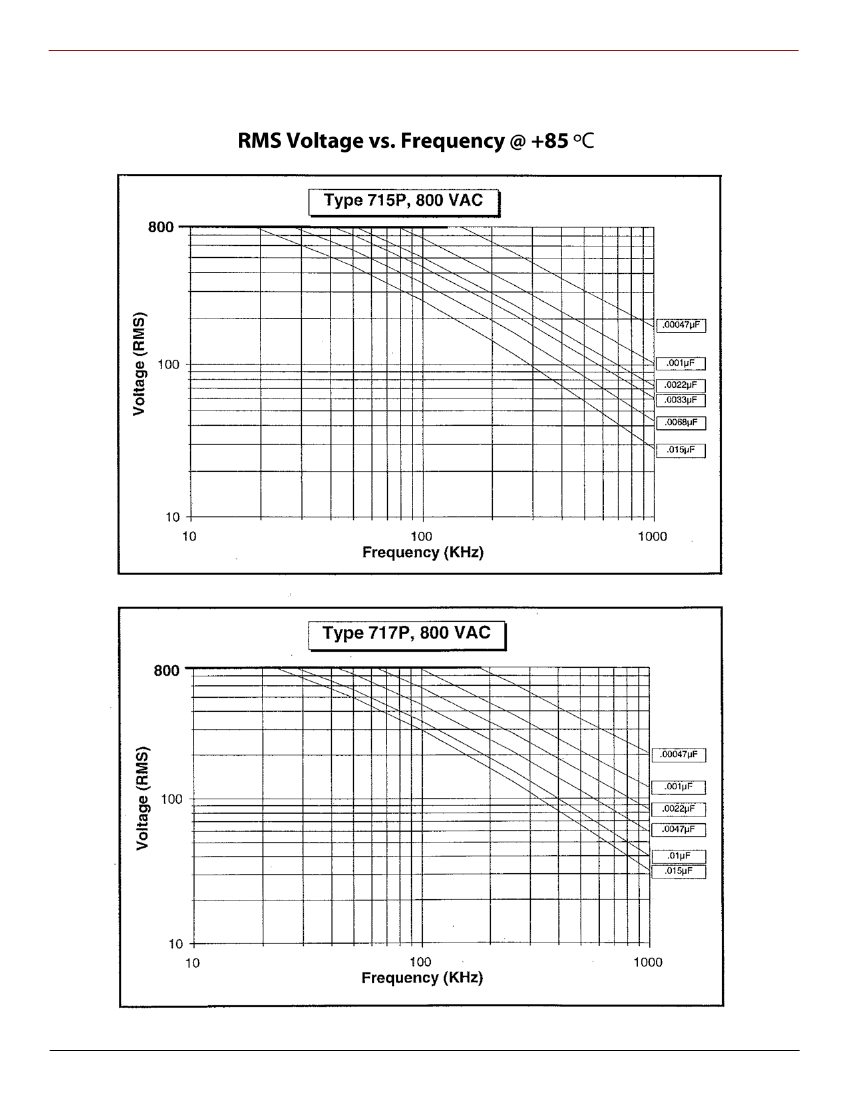

Type 715P/717P, Orange Drop®, High Voltage, Polypropylene Film/Foil

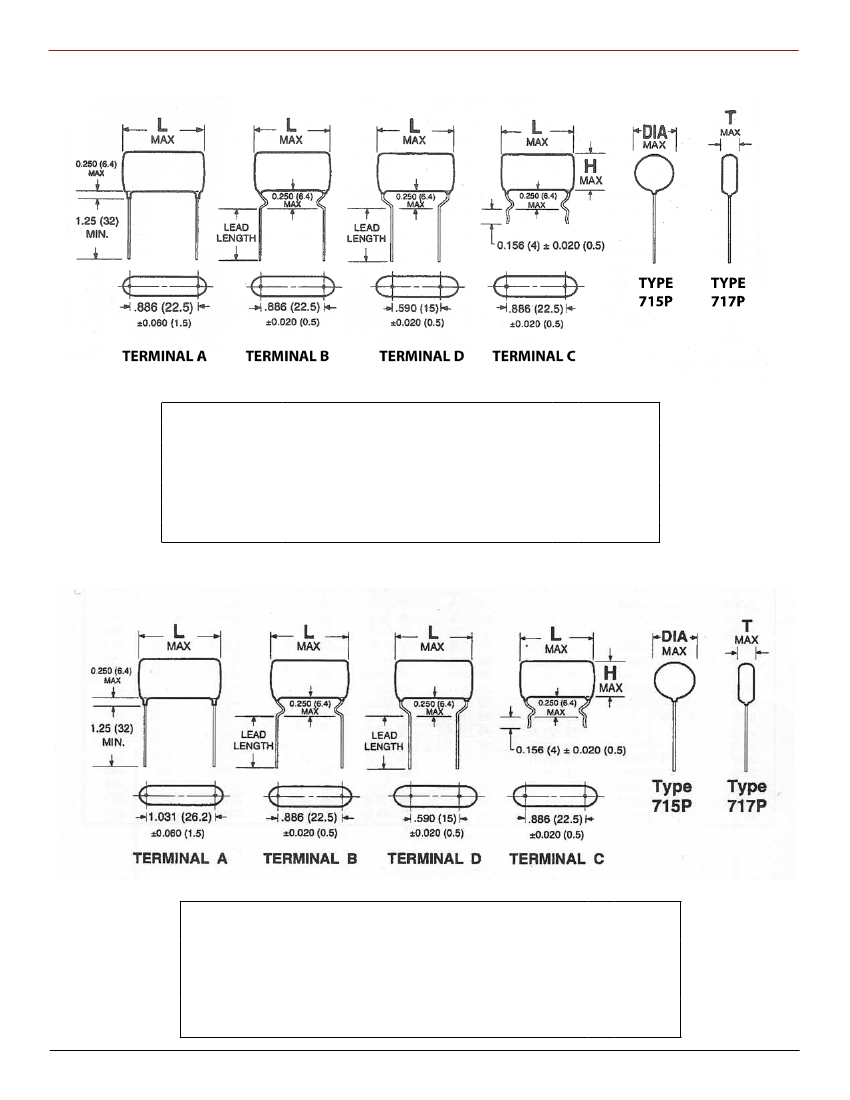

Standard Lead Styles/Lead Spacing 800 Vac
Standard Marking Format
Sample Marking
on unit
CDE
CDE715P800VAC
222J 9810
715P
800VAC
222J
9810
CDE Electronics identification
Type number
AC Voltage rating, Volts
Capacitance and tolerance code
Weekly date code (i.e. 10th wk of 1998)
Description
Tolerance codes
per EIA standards
F
G
H
J
K
±1%
±2%
±3%
±5%
±10%
Standard Lead Styles/Lead Spacing 900 Vac
Standard Marking Format
Sample Marking
on unit
CDE
CDE715P900VAC
222J 9810
715P
222J
9810
Description
CDE Electronics identification
Type number
Capacitance and tolerance code
Weekly date code (i.e. 10th wk of 1998)
Tolerance codes
per EIA standards
F
G
H
J
K
±1%
±2%
±3%
±5%
±10%
900VAC
AC Voltage rating, Volts
5
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
