D009-DD52-101-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> D009-DD52-101-Z

D009-DD52-101-Z: DescriptionCircular DIN Connector, 6+6 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size230KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

D009-DD52-101-Z Overview

Circular DIN Connector, 6+6 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle

D009-DD52-101-Z Parametric

Parameter Name	Attribute value
Objectid	304395730
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	1.114 inch
subject depth	0.787 inch
body length	0.551 inch
Body/casing type	RECEPTACLE
Connector type	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	500VAC V
maximum insertion force	44.0352 N
Insulation resistance	500000000 Ω
Insulator color	BLACK
Manufacturer's serial number	D009
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	15u inch
polarization key	POLAR PIN POSITION
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Shell material	COPPER ALLOY
Terminal length	0.125 inch
Termination type	SOLDER
Total number of contacts	12
Evacuation force-minimum value	8.896 N

D009-DD52-101-Z Preview

Insulator

Color

ELECTRICAL:

CURRENT: 100VAC 1A MAX. / 12VDC 2A MAX.

CONTACT RESISTANCE: < 30m

Ω

INSULATOR RESISTANCE: > 500M

Ω

AT 500VDC

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

MATERIAL:

HOW TO ORDER:

INSULATOR: THERMOPLASTIC PBT (UL94V-0)

CONTACT MATERIAL: PHOSPHOR BRONZE

CONTACT PLATING: GOLD ON CONTACT AREA

TIN/LEAD ON SOLDER AREA ALL OVER 50u" NICKEL

SHIELD: COPPER ALLOY

NUMBER OF CONTACTS:

B - 4 (TOP)

B - 4 (BOTTOM)

D-6

F-8

SELECTIVE PLATING:

INSULATOR COLOR:

0 - Au FLASH CONTACT AREA/TIN TAIL

1 - BLACK

2 - PC99 (Top: Green, Bottom: Purple) 1 - 15u" Au CONTACT AREA/TIN TAIL

2 - 30u" Au CONTACT AREA/TIN TAIL

SHIELDING:

5 - FULLY SHIELDED W/ PANEL GROUND

MECHANICAL:

INSERTION FORCE: 4.5KG MAX.

WITHDRAWAL FORCE: 0.9~3KG

CONTACT RETENTION FORCE: 4Lb MIN.

Rev

Issued

A RoHS Compliance

SCALE:n/a

TOL. DEC.

.X +/- 0.3

.XX +/- 0.15

.XXX +/-

ANGLE +/- 3°

Drawn Checked

A.M.

S.M.

G.T.

S.M.

Approved

S.M.

RoHS COMPLIANT

Date

01/06/04

10/25/05

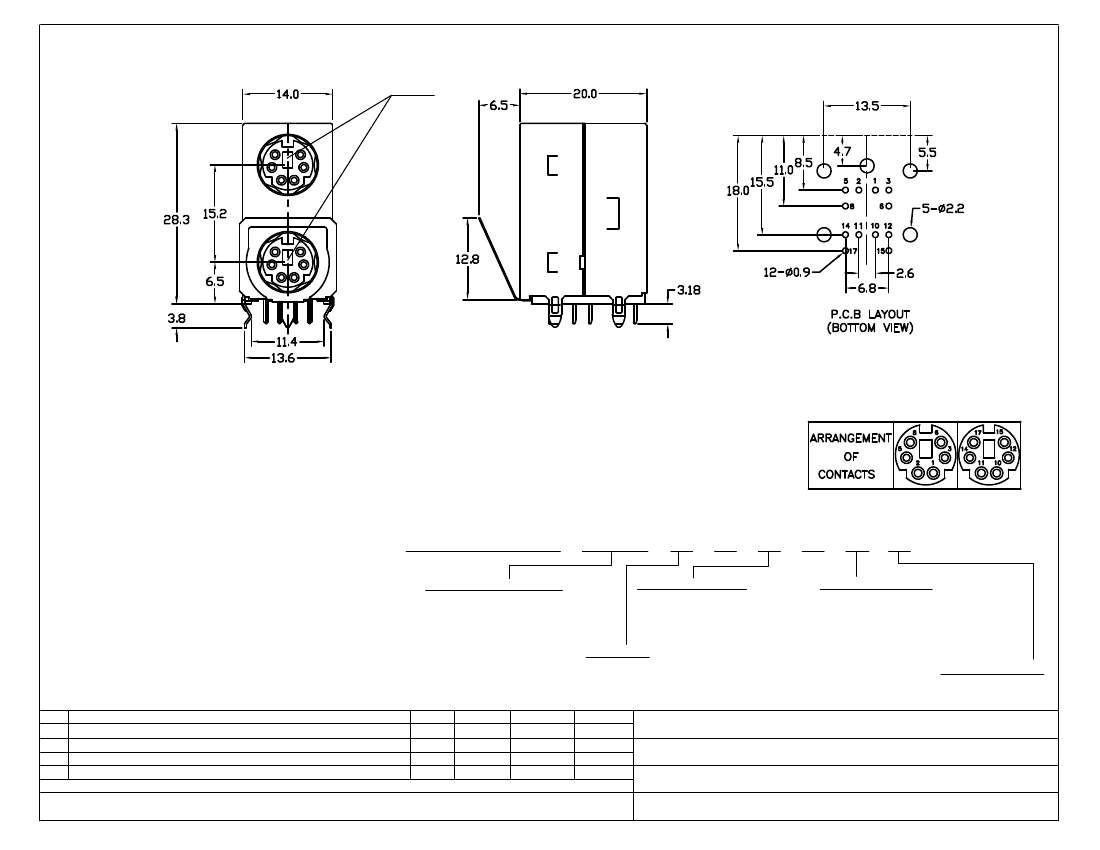

SMP TECHNOLOGY, INC.

Stacked Mini Din Connector, Fully Shielded 6/6, With Front Panel Ground

PC99 or Black Insulator

UNIT: mm

P/N: D009-DD52-X0X-Z

Pg: 1

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
