2PH2-56-UA: DescriptionBoard Connector, 56 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size497KB，3 Pages; ManufacturerAdam Tech; Environmental Compliance

Download Datasheet Parametric View All

2PH2-56-UA Overview

Board Connector, 56 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle

2PH2-56-UA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1159631068
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.157 inch
subject depth	0.079 inch
body length	2.212 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
Manufacturer's serial number	2PH2
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	56

Preview

Download Datasheet

View All

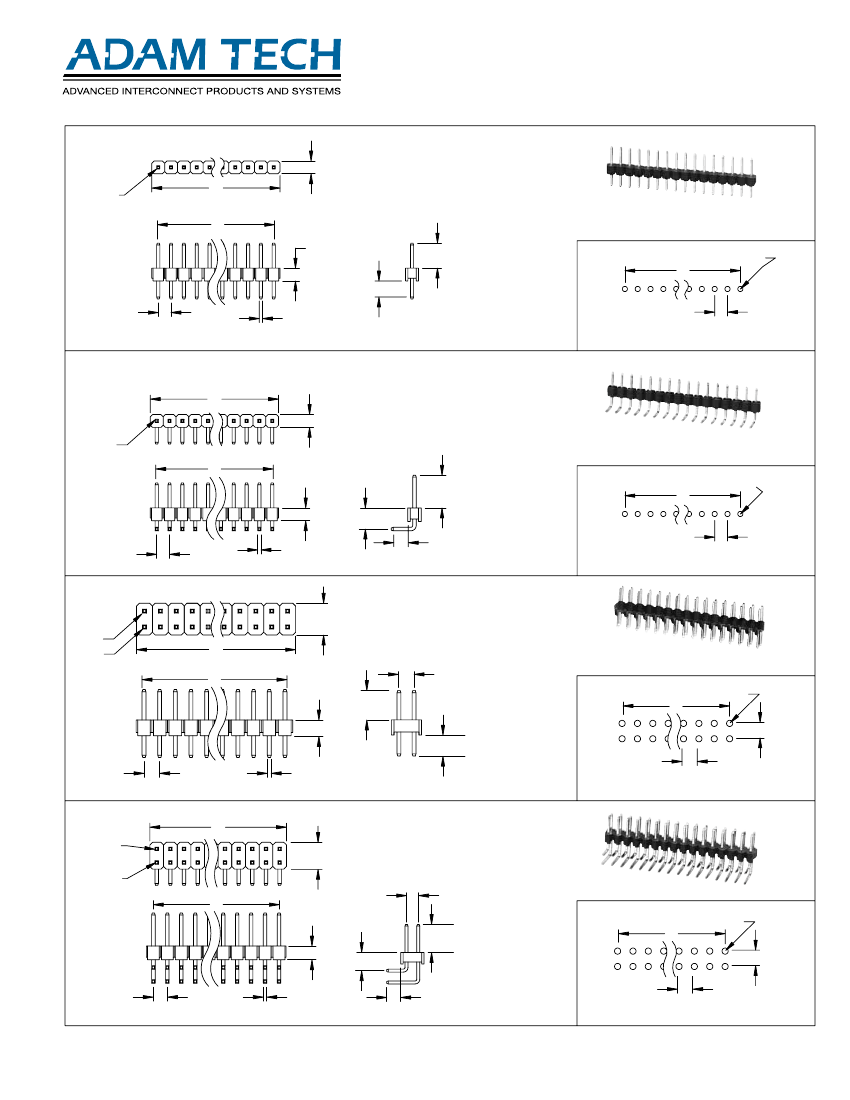

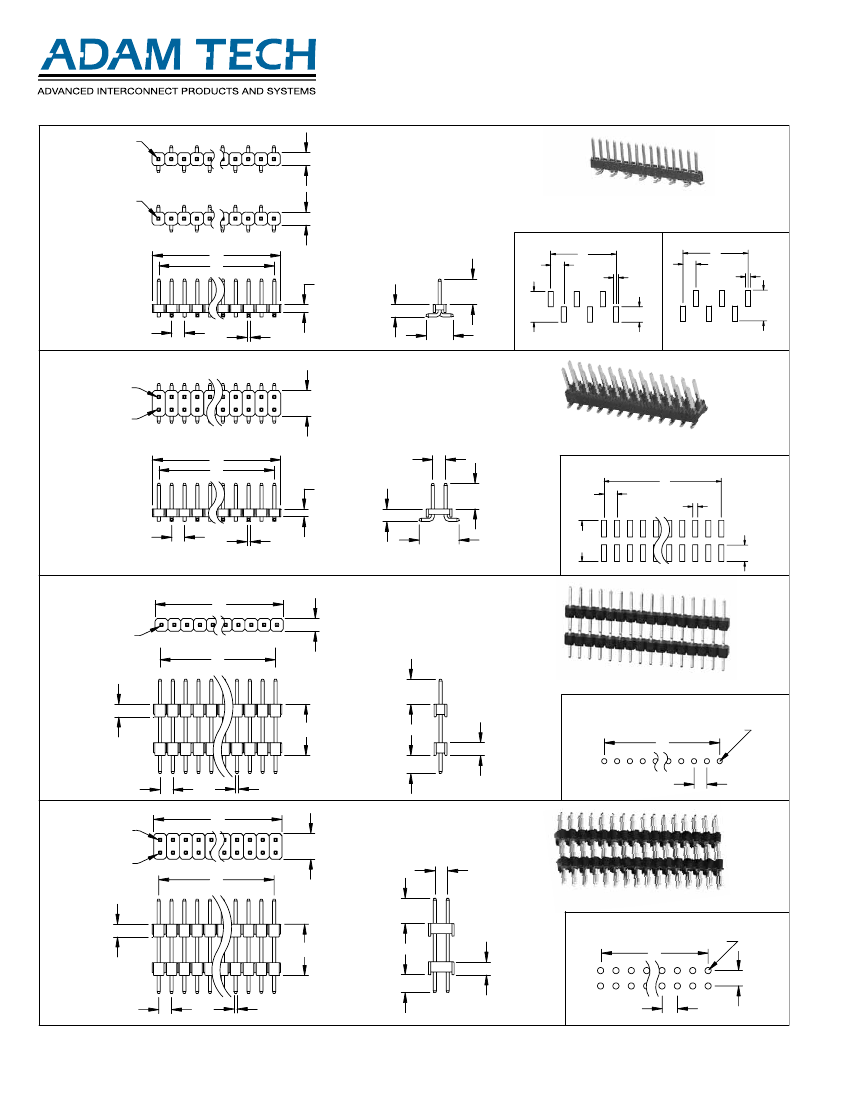

2.00mm PIN HEADERS

.079" [2.00] CENTERLINE

2PH SERIES

INTRODUCTION

Adam Tech 2PH & D2PH Series 2.0mm Pin Headers offer a full

range of fine pitched headers in a variety of configurations including

Single, Dual and Three rows, Straight & Right Angle in Thru-Hole or

SMT mounting. Their close tolerance .020" sq. posts are smoothly

finished and taper tipped to eliminate insertion damage to the PCB

or mating connector. Adam Tech 2.0mm Pin Headers can be easily

cut into exact sizes as required. Options include stacked insulator

versions and choice of tin, gold or selective gold plating. This

series is compatible with all industry standard 2.0mm pitch mating

connectors.

FEATURES:

Single, Dual or Three Row

Tin, gold or selective gold plating options

Thru-hole or SMT mounting

Stacked and Custom length versions available

Versatile Breakaway design

Hi Temp Insulator available

MATING RECEPTACLES:

Mates with all industry standard .050" pitch female headers

SPECIFICATIONS:

Material:

Standard insulator: PBT, glass reinforced, rated UL94V-0

Optional Hi-Temp insulator: Nylon 6T, rated UL94V-0

Insulator Color: Black

Contacts: Brass

Plating:

U = Gold over nickel underplate overall

SG = Gold over nickel underplate on

contact area, tin over copper underplate on tails.

T = Tin over copper underplate overall

Electrical:

Operating voltage: 250V AC max.

Current rating: 1 Amp max.

Contact resistance: 20 mΩ max. initial

Insulation resistance: 5000 MΩ min.

Dielectric withstanding voltage: 1000V AC for 1 minute

Mechanical:

Mating durability: 1,000 cycles

Temperature Rating:

Operating temperature: -40°C to +105°C

Soldering process temperature: 260°C

PACkAGING:

Anti-ESD plastic bags

(Tape and Reel available for SMT option)

APPROVALS AND CERTIFICATIONS:

UL Recognized & CSA Certified,

File no. E224053

ORDERING INFORMATION

2PH1

SERIES INDICATOR

2PH1

= 2.00mm Single

Row Straight

Pin Header

2PH2

= 2.00mm Dual

Row Straight

Pin Header

2PH1R

= 2.00mm Single

Row Right

Angle Pin

Header

PIN LENGTH

= Standard

length

= Special

length,

customer

specified

defined as:

tail dim/total

length

PLATING

= Gold plated

2PH2R

= 2.00mm Dual

= Tin plated

Row Right

= Selective gold

Angle

plating in contact

Pin Header

area, tin plating

on solder tails

POSITIONS

Single row:

1 thru 40

Dual row:

2 thru 80

ORDERING INFORMATION

DUAL INSULATOR HEADERS

D2PH

“C" DIM.

.xxx"/.xxx"/.xxx

“D" DIM.

“E" DIM.

NO. OF ROWS

= Single row

= Dual row

SERIES

INDICATOR

D2PH

= 2mm Dual

Insulator

Pin Header

PLATING

= Gold plated

= Tin plated

= Gold plating

in contact area

tin plating on

solder tails

STACkING DIMENSIONS

Specified In Inches As:

“C” Dim. / “D” Dim. / “E” Dim.

Replace “D” Dim. with “SMT” for

Surface Mount Option

POSITIONS

Single row:

2 thru 40

Dual row:

4 thru 80

OPTIONS:

Add designator(s) to end of part number

SMT

= Surface Mount leads Dual Row

SMT-A

= Surface Mount leads Type A

SMT-B

= Surface Mount Leads Type B

= Hi-Temp insulator for Hi-Temp soldering processes up to

260°C

= Low profile 1.5mm insulator thickness

= Locating pegs

= Board retention solder tails

(Add this option for thru-hole products only. All SMT products are

manufactured with Hi-Temp insulators)

298

www.adam-tech.com
