Preview

5454-6-24-1: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

5454-6-24-1 Overview

Board Connector, 24 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Plug

5454-6-24-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307327780
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.197 inch
subject depth	0.498 inch
body length	1.22 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	50 Cycles
maximum insertion force	3.9198 N
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5454
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	24
Evacuation force-minimum value	.3058 N

Preview

Download Datasheet

View All

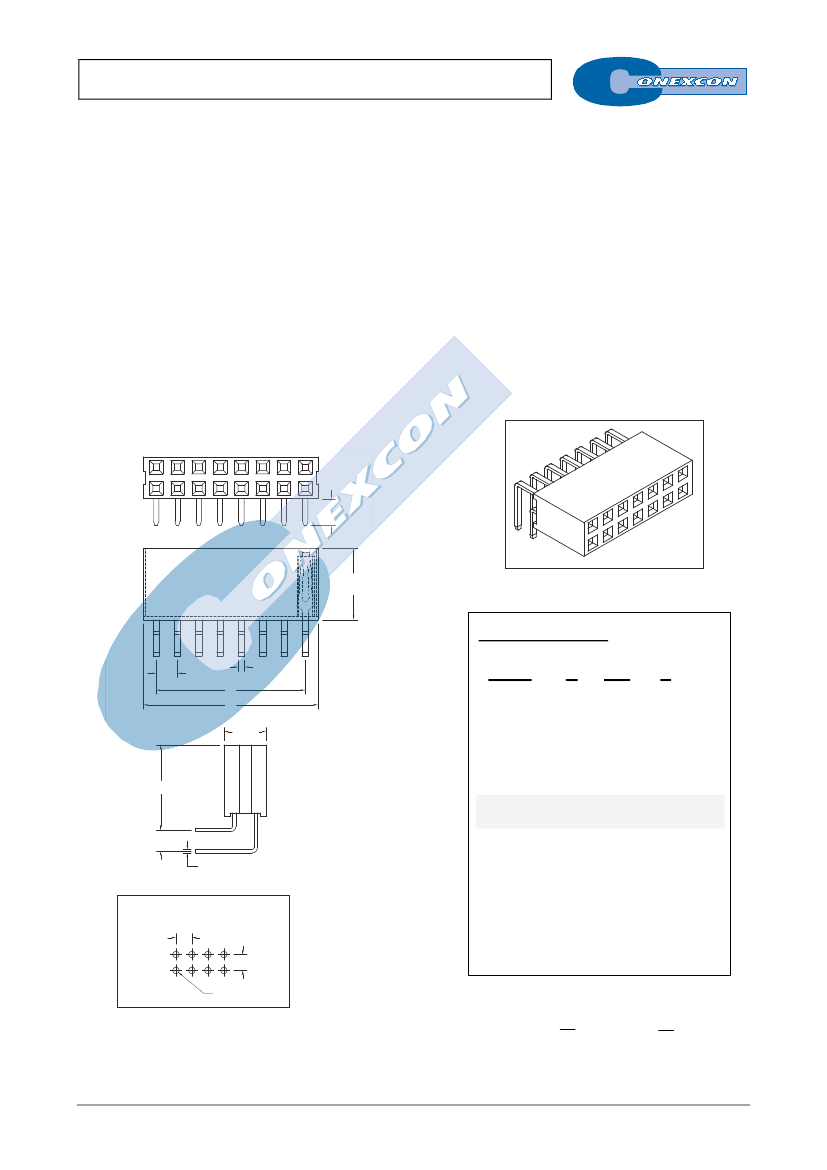

DUAL ROW SIDE ENTRY SOCKET

5454 SERIES.

2.54 mm (0.100”) pitch.

General Features

Electrical Features



Available in 4 through 80 circuits



Mates with pin header 2.54 mm pitch 2558, 2559, 2458,

•

2582, 2583, 2666, 2667, 2468 and 2579 series



Accept 0.64 square pin



U contact with different plating

Materials



Voltage rating: < 250V



Current rating: < 3 A



Contact resistance: < 20 mΩ



Dielectric withstanding voltage: 600 V AC/minute



Insulation resistance: >1000 MΩ



Capacitance: < 2 pF at 1 KHz

Mechanical Features



Insulator: PBT UL 94 V-0

Contact: Phosphor bronze

Operating temperature: -40ºC to +105ºC

RoHS compliant



Insertion force receptacle/plug: < 0,40 Kgf/pin

Unmating force receptacle/plug: > 0,03 Kgf/pin

Contact retention force to housing: > 0,50 Kgf/pin

Durability: 50 cycles

Dimension Information

3.20

8.50

Ordering Information:

2.54

A

B

5.00

0.76

5454 -

1

T-

2

XX-

3

1

1. Connector Series

2. (T) Contact Plating

10.10



T =

2.

Tin plated



T =

3.

Gold flash over nickel

Recommended Finish

2.54

0.40

MECANIZADO RECOMENDADO

2.54



T =

5.

15µ” gold over nickel

T =

6.

30µ” gold over nickel

T =

13.

Sel. gold flash over nickel overall

T =

15.

15µ" sel. gold over nickel overall

T =

16.

30µ" sel. gold over nickel overall

3. (XX) Number of circuits



Available in 4 through 80 circuits

Ø1.02

DIMENSIONS

A

=

2.54





XX



2

−

1









XX





B

=

2.54



2

 +

0.50





(XX) = Number of circuits

E-XX
