VCXO
Product name
VG-4231CA
Product code / Ordering code
VG-4231CA
20.000000 MHz DRC-T
Q3614CA001261xx
Please refer to the 8.Packing information about xx (last 2 digits)
Output waveform
CMOS
Pb free / Complies with EU RoHS directive
Reference weight Typ.153mg
1.Absolute maximum ratings
Parameter
Symbol
Maximum supply voltage
Storage temperature
Input voltage
Min.
-0.3
-55
-0.3
Typ.
-
-
-
Max.
+7
+125
Vcc+0.3
Unit
V
ºC
V
Conditions / Remarks
-
Storage as single product after
unpacking.
Vc traminal
Vcc-GND
T_stg
Vin
2.Specifications(characteristics)
Parameter
Symbol
Output frequency
Supply voltage
Control voltage
Operating temperature
Frequency tolerance
Current consumption
Disable current
Frequency control range
Absolute pull range
Modulation characteristics
Input resistance
Frequency change polarity
Symmetry
Output voltage
Output load condition
Input voltage
Rise time
Fall time
Start-up time
Jitter
Min.
3
0.15
-20
-35
-
-
+/-130
+/-80
-
50
40
Vcc-0.4
-
-
70%Vcc
-
-
-
-
-
-
-
-
-
-
-10
Typ.
20.0000
3.3
1.65
-
-
-
-
-
-
20
-
-
-
-
-
-
-
-
-
-
TBD
TBD
TBD
TBD
TBD
-
-
Max.
3.6
3.15
+70
+35
10
7
-
-
-
-
60
-
0.4
15
-
30%Vcc
4
4
10
-
-
-
-
-
TBD
10
Unit
MHz
V
V
ºC
x10
-6
mA
mA
x10
-6
x10
-6
kHz
kΩ
%
V
V
pF
V
V
ns
ns
ms
ps
ps
ps
ps
ps
ps
x10
-6
Conditions / Remarks
-
Vc=1.65V+/-1.5V
-
T_Use
no load
OE=GND
-
-
+/-3dB
-
Positive Polarity
50% Vcc level
50%Vcc Level
-
-
-
-
20%Vcc to 80%Vcc level
20%Vcc to 80%Vcc level
t=0 at 90%Vcc
Deterministic Jitter
Random Jitter
δ(RMS of total distribution)
Peak to Peak
Accumulated Jitter(δ) n=2 to 50000
cycles
Off set Frequency: 12kHz to 20MHz
25ºC,10years
f0
Vcc
Vc
T_use
f_tol
Icc
I_dis
f_cont
APR
BW
Rin
-
SYM
VOH
VOL
L_CMOS
VIH
VIL
tr
tf
t_str
t
DJ
T
RJ
t
RMS
t
p-p
t
acc
tPJ
f_aging
Phase jitter
Frequency aging
1 Page
3.Timing chart
t
TLH
80 % V
DD
1/2V
DD
20 % V
DD
t
THL
V
DD
tw
t
V
OH
GND
V
OL
4.Test circuit
1) C-MOS load CL=15 pF
V
DD
OE
OUT
OE
Test Point
supply
by-pass
capacito
Vc
GND
Vc
supply
CL
2) Current consumption
A
supply
by-pass
capacitor
Vc
V
DD
Vc
OE
GND
OE
*Current consumption under the
disable function should be
OE=GND
3) Condition
1. Oscilloscope :Impedance
Min. 1 MW
Input capacitance
Max. 15 pF
Band width
Min. 400 MHz
Impossible to measure both frequency and wave form at the same time.
(In case of using oscilloscope's amplifier output, possible to measure both at the same time.)
2. CL includes probe capacitance.
3. By-pass capacitor (0.01 mF to 0.1 mF) is placed closely between VDD and GND.
4. Use the current meter whose internal impedance value is small.
5. Power Supply
½Start
up time (0 %VDD→90 %VDD) of power source should be more than 150 ms.
½Impedance
of power supply should be as lowest as possible.
6. One point earth of test cirouit is required.
2 Page
5.External dimensions
#6
#5
(Unit: mm)
#4
#5
6.Footprint(Recommended)
1.1
(Unit: mm)
1.8
#4
#4
5.0±0.2
1.4
#6
C(ex. 0.01 µF)
#6
#5
2.6
E 35.328 F
GRC181A
#1
#2
7.0±0.2
#3
C
4.2
#3
1.4±0.1
2.54
#2
5.08
#1
Resist
#1
5.08
OE pin = "H" or "open": Specified frequency output.
OE pin = "L" : Output is high impedance.
#2
5.08
#3
To maintain stable operation, provide a 0.01uF to 0.1uF
by-pass capacitor at a location as near as possible to the
power source terminal of the crystal product (between Vcc
- GND).
7.Reflow profile
Pre Heating Temperature
Tp1 ~ Tp2 = + 170 °C
Heating Temperature
TMlt = + 220 °C
Peek Temperature
TMax. = + 260 °C
Temperature
+260ºC
TMax.
+220ºC
Tmlt
Point of measuring
In case of Solder ability
Tp2
Terminal.
Tp1
In case of Resistance to soldering heat
Surface.
35s
100s
t(time)
8.Packing information
[ 1 ]Product number last 2 digits code(xx) description
The recommended code is "00"
Code
11
12
13
Condition
Any Q'ty / Reel
250pcs / Reel
500pcs / Reel
Q3614CA001261xx
Code
00
01
02
Condition
1000pcs / Reel
Any Q'ty vinyl bag(Tape cut)
Tube
3 Page
2.0

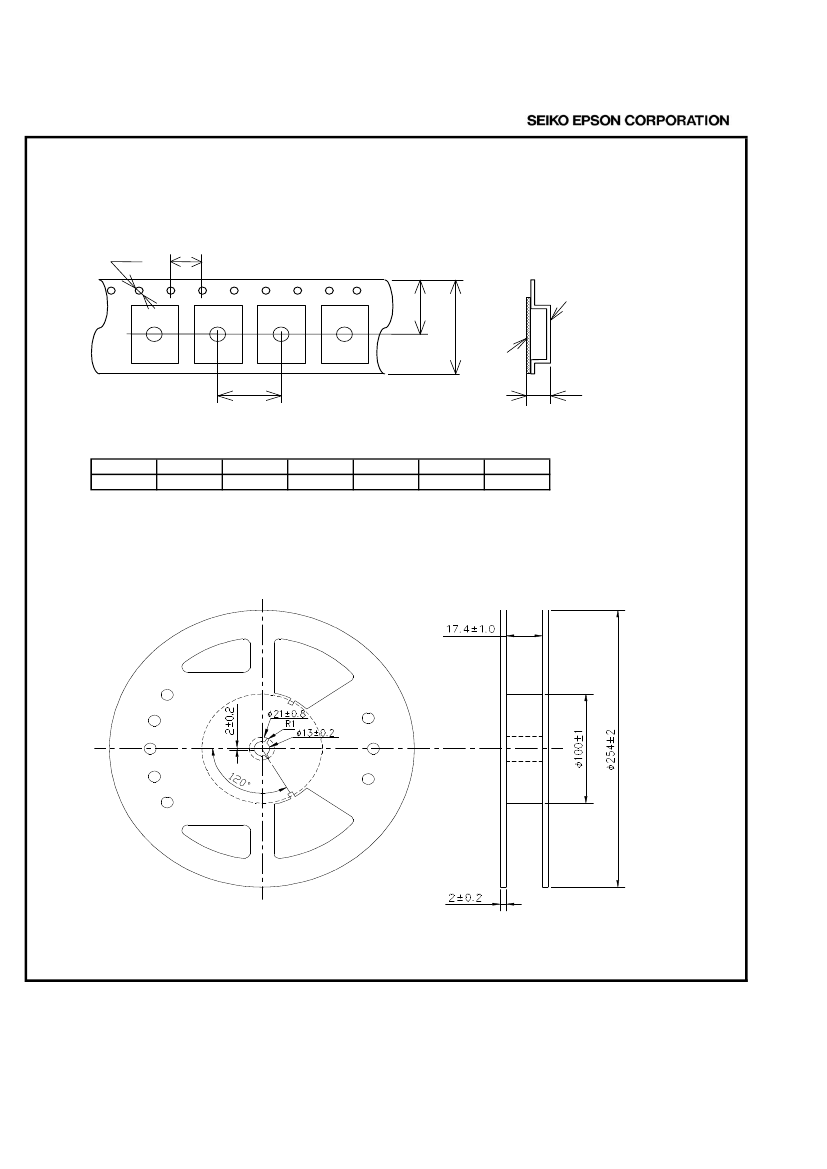

[ 2 ] Taping specification
Subject to EIA-481 & IEC-60286
(1) Tape dimensions
Material
of the Carrier Tape : PS
Material
of the Top Tape : PET+PE
Ａ
Ｂ
Carrier tape
Unit: mm
Ｄ
Ｅ
Top tape
Ｃ
Ｆ
Symbol
Value
A
Φ1.5
B
4
C
8
D
9.25
E
16
F
2.3
(2) Reel dimensions
Center material
: PS
Material of the Reel : PS
Unit: mm
4 Page
9.Notice
This material is subject to change without notice.
Any part of this material may not be reproduced or duplicated in any form or any means without the written permission
of Seiko Epson.
The information about applied circuitry, software, usage, etc. written in this material is intended for reference only.
Seiko Epson does not assume any liability for the occurrence of infringing on any patent or copyright of a third party.
This material does not authorize the licensing for any patent or intellectual copyrights.
When exporting the products or technology described in this material, you should comply with the applicable
export control laws and regulations and follow the procedures required by such laws and regulations.
You are requested not to use the products (and any technical information furnished, if any) for the development
and/or manufacture of weapon of mass destruction or for other military purposes. You are also requested that you
would not make the products available to any third party who may use the products for such prohibited purposes.
These products are intended for general use in electronic equipment. When using them in specific applications that require
extremely high reliability, such as the applications stated below, you must obtain permission from Seiko Epson in advance.
/ Space equipment (artificial satellites, rockets, etc.)
/ Transportation vehicles and related (automobiles, aircraft, trains, vessels, etc.)
/ Medical instruments to sustain life
/ Submarine transmitters
/ Power stations and related
/ Fire work equipment and security equipment
/ Traffic control equipment
/ And others requiring equivalent reliability.
All brands or product names mentioned herein are trademarks and/or registered trademarks of their respective.
10.Contact us
http://www5.epsondevice.com/en/contact/
