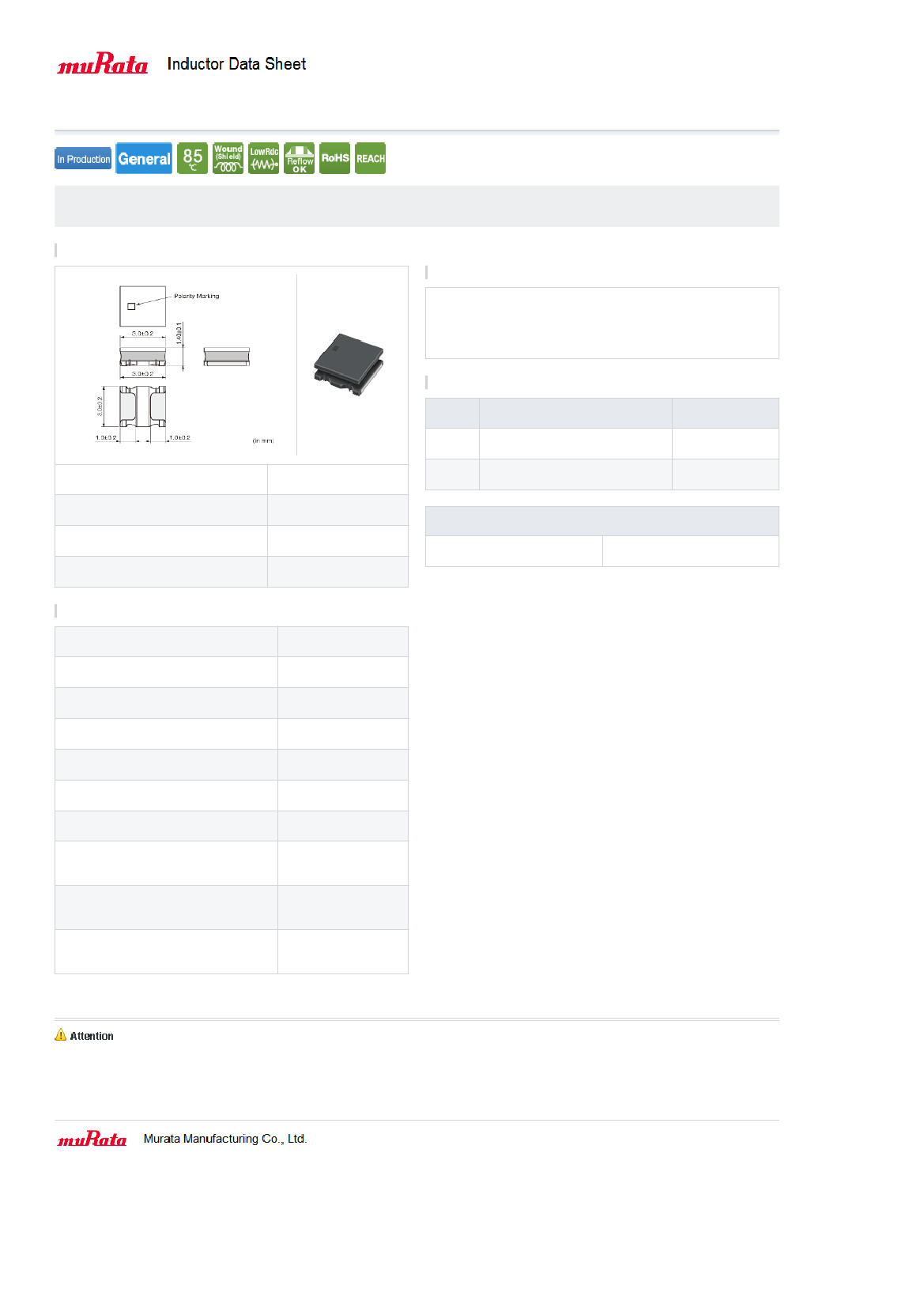

LQH3NPN1R0MMR: DescriptionInductance; File Size77KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Compare View All

LQH3NPN1R0MMR Overview

Inductance

Preview

Download Datasheet

View All

LQH3NPN1R0MMR#

# indicates a package specification code.

< List of part numbers with package codes >

LQH3NPN1R0MMRE , LQH3NPN1R0MMRF

Shape

Notes

When applied Rated current to the Products, Inductance will be within ±30% of

nomonal Inductance value.

When applied Rated current to the Products, temperature rise caused by

self-generated heat shall be limited to 40℃ max.

Keep the temperature (ambient temperature plus self-generation of heat) under

125℃.

References

Packaging

code

Specifications

φ330mm Embossed taping

φ180mm_Embossed taping

Minimum quantity

8000

2000

L size

W size

T size

Size code in inch (mm)

3.0 ±0.2mm

Mass (Typ.)

1.4 ±0.1mm

1 piece

1212 (3030)

0.051g

Specifications

Inductance

Inductance test frequency

Rated current (Isat) (Based on Inductance change)

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Avg. of DC resistance

Self resonance frequency (min.)

Operating temperature range (Self-temperature rise

is included)

Operating temperature range (Self-temperature rise

is not included)

1.0µH ±20%

1MHz

1600mA

2150mA

0.0504Ω

0.042Ω±20%

135MHz

-40∼125℃

-40∼85℃

Class of magnetic shield

Magnetic shield of magnetic

powder in resin

1 of 2

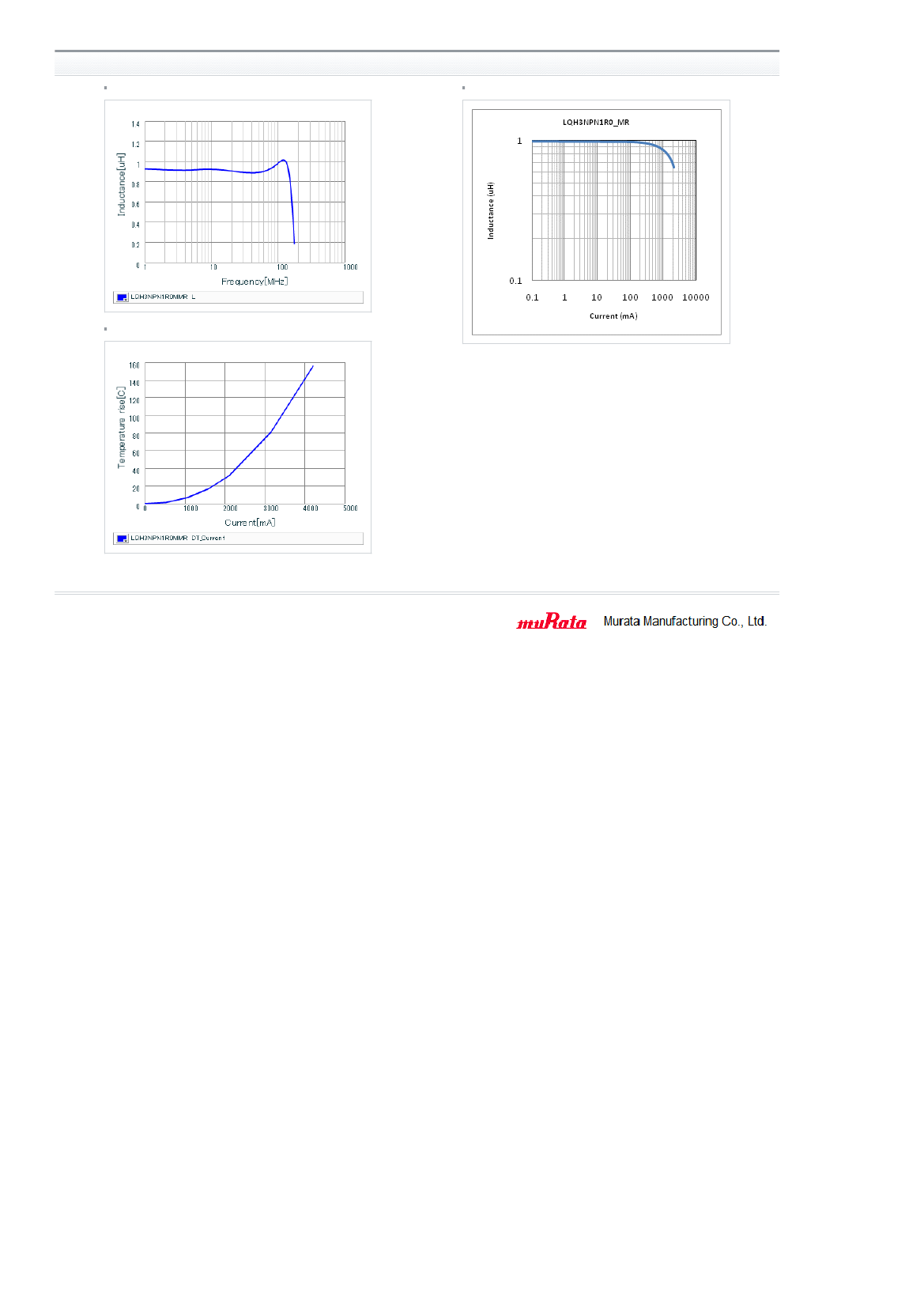

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2016/04/21
