LQH3NPN220MJR Overview

Inductance

Preview

Download Datasheet

View All

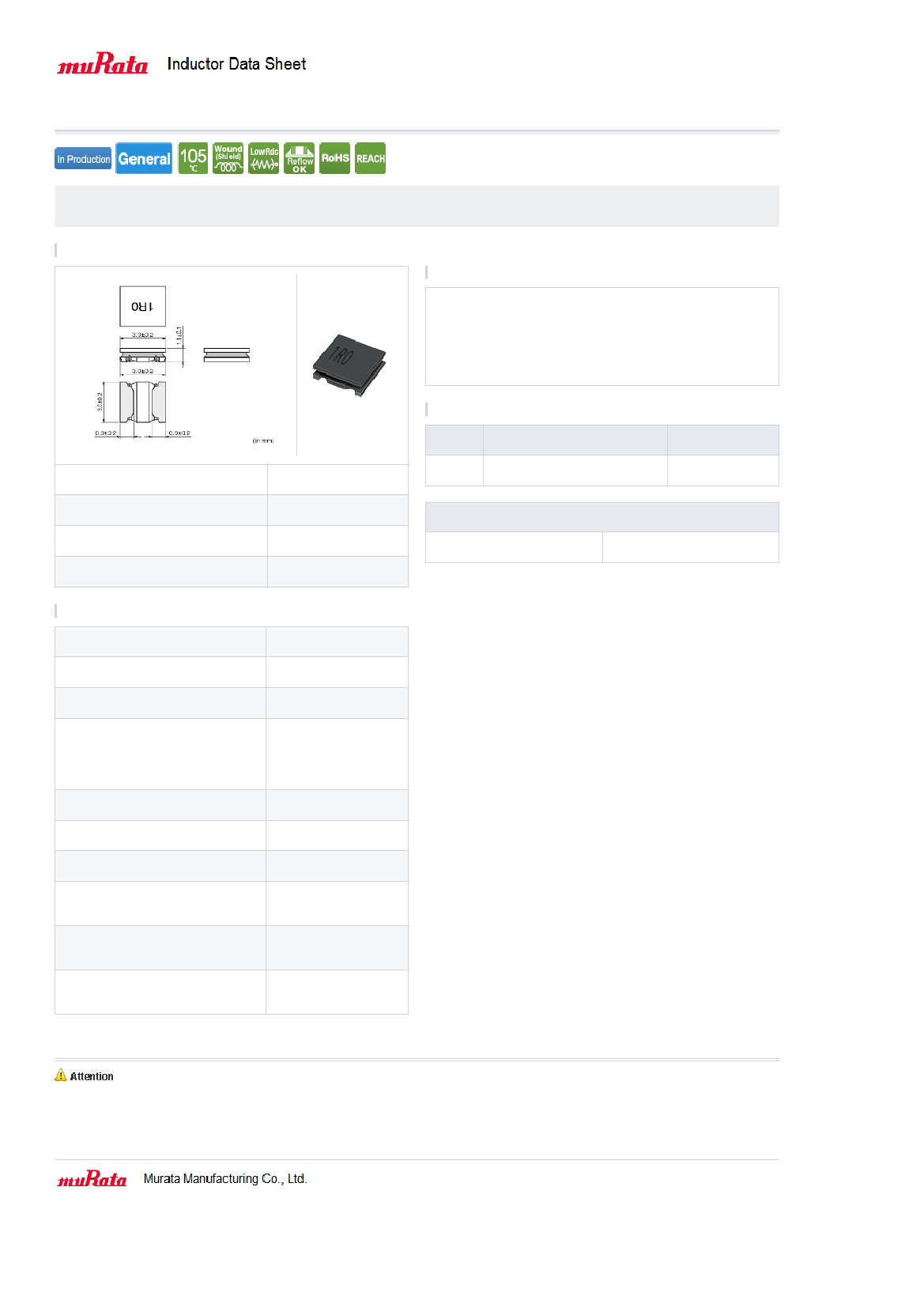

LQH3NPN220MJR#

# indicates a package specification code.

< List of part numbers with package codes >

LQH3NPN220MJRL

Shape

Notes

When applied Rated current to the Products, Inductance will be within ±30% of

initial inductance value range.

Keep the temperature (ambient temperature plus self-generation of heat) under

125℃.

When applied Rated current to the Products, temperature rise caused by

self-generated heat shall be limited to 40℃ max.(Ambient temperature 85℃).

When applied Rated current to the Products, temperature rise caused by

self-generated heat shall be limited to 20℃max.(Ambient temperature 85℃ to

105℃).

References

Packaging

code

Specifications

φ180mm Embossed taping

L size

W size

T size

Size code in inch (mm)

3.0 ±0.2mm

1.1 ±0.1mm

1212 (3030)

Minimum quantity

2000

Mass (Typ.)

1 piece

0.045g

Specifications

Inductance

Inductance test frequency

Rated current (Isat) (Based on Inductance change)

22µH ±20%

1MHz

520mA

800mA(Ambient temperature

85℃)

350mA(Ambient temperature

105℃)

0.6Ω

0.50Ω±20%

20MHz

Rated current (Itemp) (Based on Temperature

rise)

Max. of DC resistance

Avg. of DC resistance

Self resonance frequency (min.)

Operating temperature range (Self-temperature

rise is included)

Operating temperature range (Self-temperature

rise is not included)

-40∼125℃

-40∼105℃

Class of magnetic shield

Magnetic shield of magnetic

powder in resin

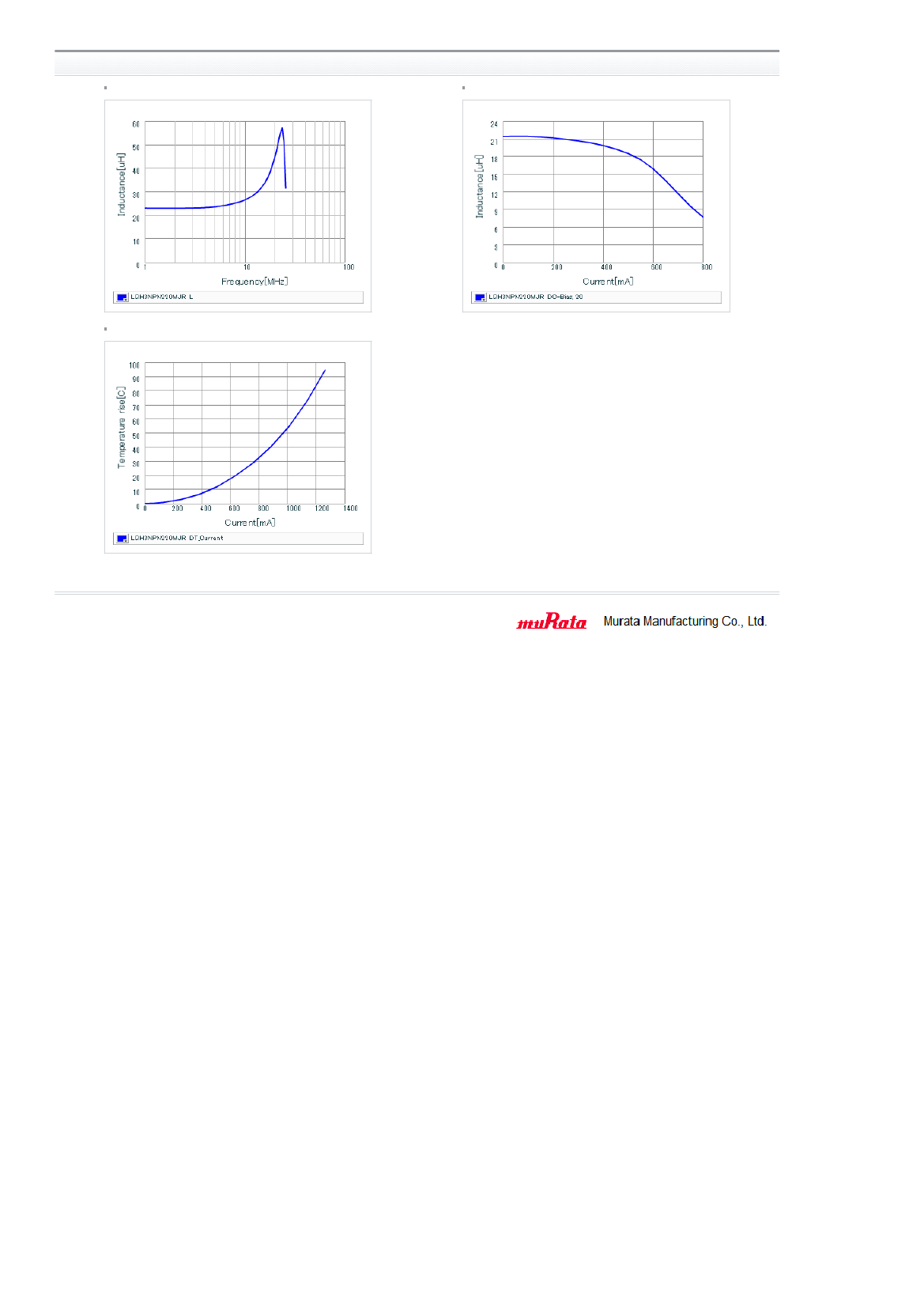

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2016/04/21
