PE3C2014-100CM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> PE3C2014-100CM

Preview

PE3C2014-100CM: DescriptionN Male to 7/16 DIN Female LSZH Jacketed Low PIM Cable 100 CM Length Using SR401FLJ Low PIM Coax, RoHS; CategoryThe connector; File Size442KB，3 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/

Download Datasheet View All

PE3C2014-100CM Overview

N Male to 7/16 DIN Female LSZH Jacketed Low PIM Cable 100 CM Length Using SR401FLJ Low PIM Coax, RoHS

Preview

Download Datasheet

View All

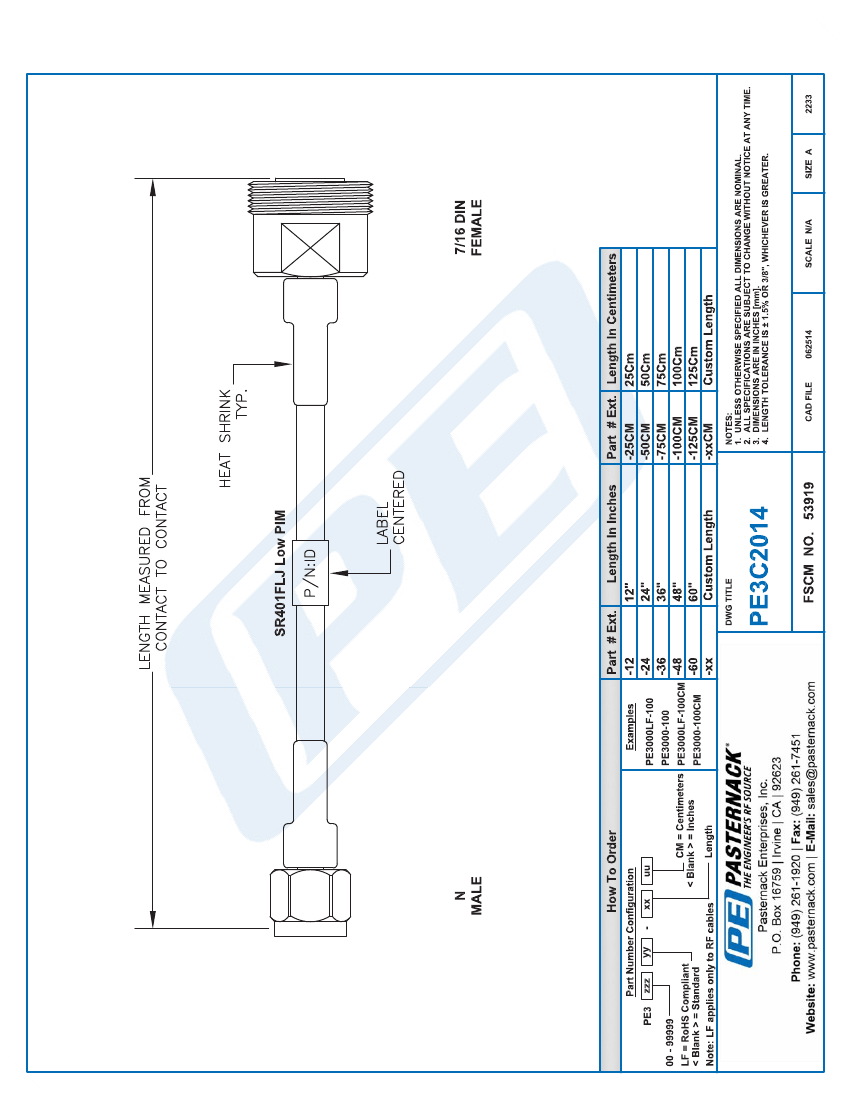

N Male to 7/16 DIN Female LSZH Jacketed Low PIM Cable

100 CM Length Using SR401FLJ Low PIM Coax, RoHS

TECHNICAL DATA SHEET

Configuration

Connector 1

Connector 2

Cable Type

N Male

7/16 DIN Female

PE-SR401FLJ Low PIM

PE3C2014-100CM

Electrical Specifications

Frequency Range

Impedance

Maximum VSWR

RF Shielding

Maximum Input Power

Passive Intermodulation

Typical Performance by Frequency

Frequency 1

Frequency

Insertion Loss,

Power Handling, KWatts

Frequency 2

Frequency

Insertion Loss

Power Handling

Frequency 3

Frequency

Insertion Loss

Power Handling

500 MHz

0.2 dB

DC to 3 GHz

50 Ohms

1.15:1

-100 dB

2 KWatts

-160 dBc

1000 MHz

0.26 dB

1.5 KWatts

3 GHz

0.46 dB

950 Watts

Mechanical Specifications

Temperature

Temperature Operating Range

Size

Length

-55 to +125 deg C

39.37 in [100 cm]

5 in [127 mm]

One Time Minimum Bend Radius

Cable

Cable Type

Cable Inner Conductor

Cable Outer Conductor

Dielectric Type

Jacket Material

Jacket Diameter

PE-SR401FLJ Low PIM

Copper, Silver

Copper, Tin

PTFE

PVC LSZH

0.276 in [7.01 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

N Male to 7/16 DIN Female LSZH Jacketed Low PIM Cable 100 CM Length Using SR401FLJ

Low PIM Coax, RoHS PE3C2014-100CM

PE3C2014-100CM REV 1.0
