LQH44PN3R3MJ0K: Description1 ELEMENT, 3.3 uH, POWDER-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size75KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

LQH44PN3R3MJ0K Overview

1 ELEMENT, 3.3 uH, POWDER-CORE, GENERAL PURPOSE INDUCTOR, SMD

LQH44PN3R3MJ0K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	1616
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	1616
structure	Magnetically Shielded
core material	FERRITE
DC Resistance	0.106 Ω
Nominal inductance(L)	3.3 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	1.1 mm
Package length	4 mm
Package form	SMT
Package width	4 mm
method of packing	TR, Embossed , 13 Inch
Maximum rated current	1 A
self resonant frequency	55 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	DCR IS MEASURED AT 20% TOLERANCE
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

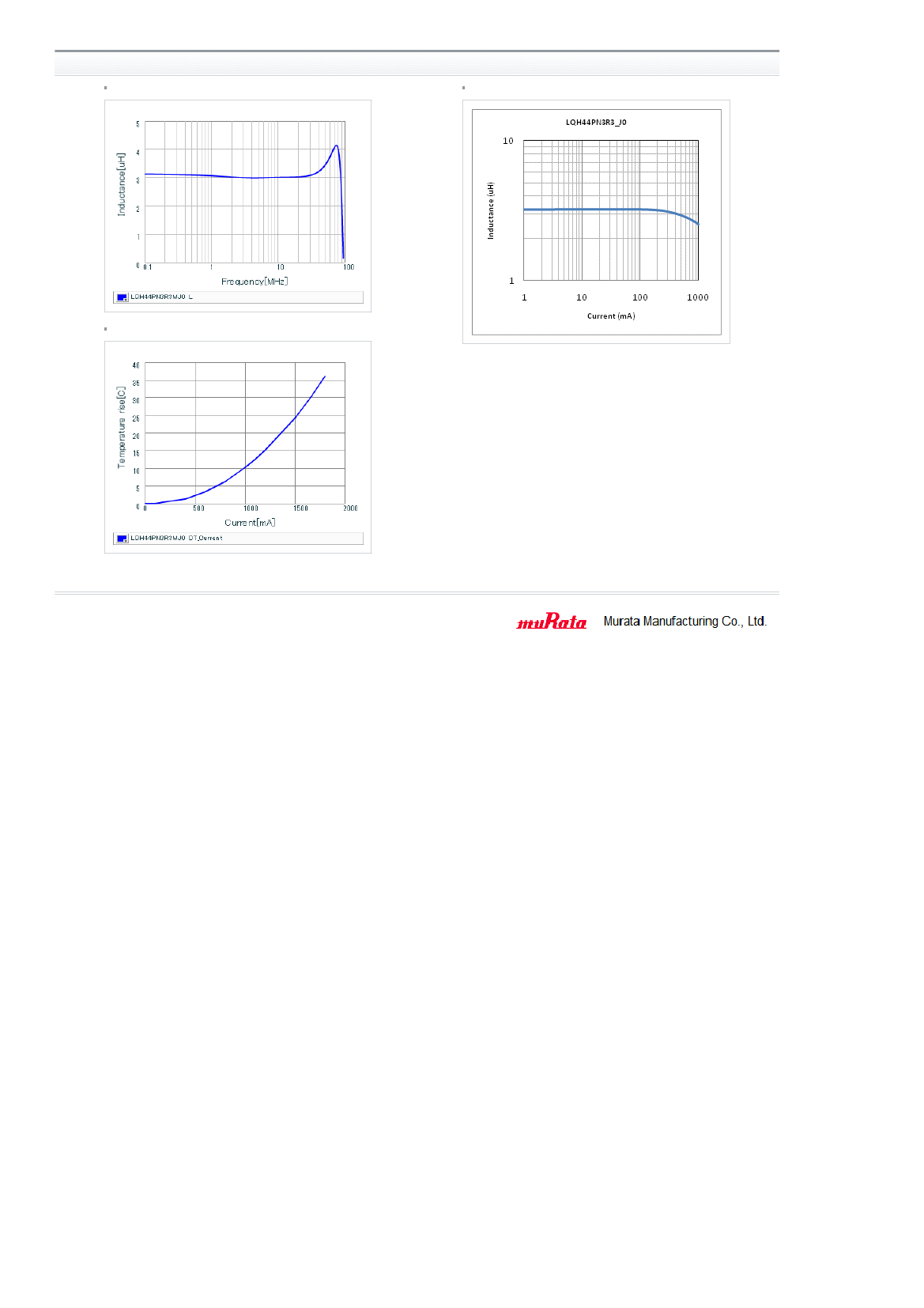

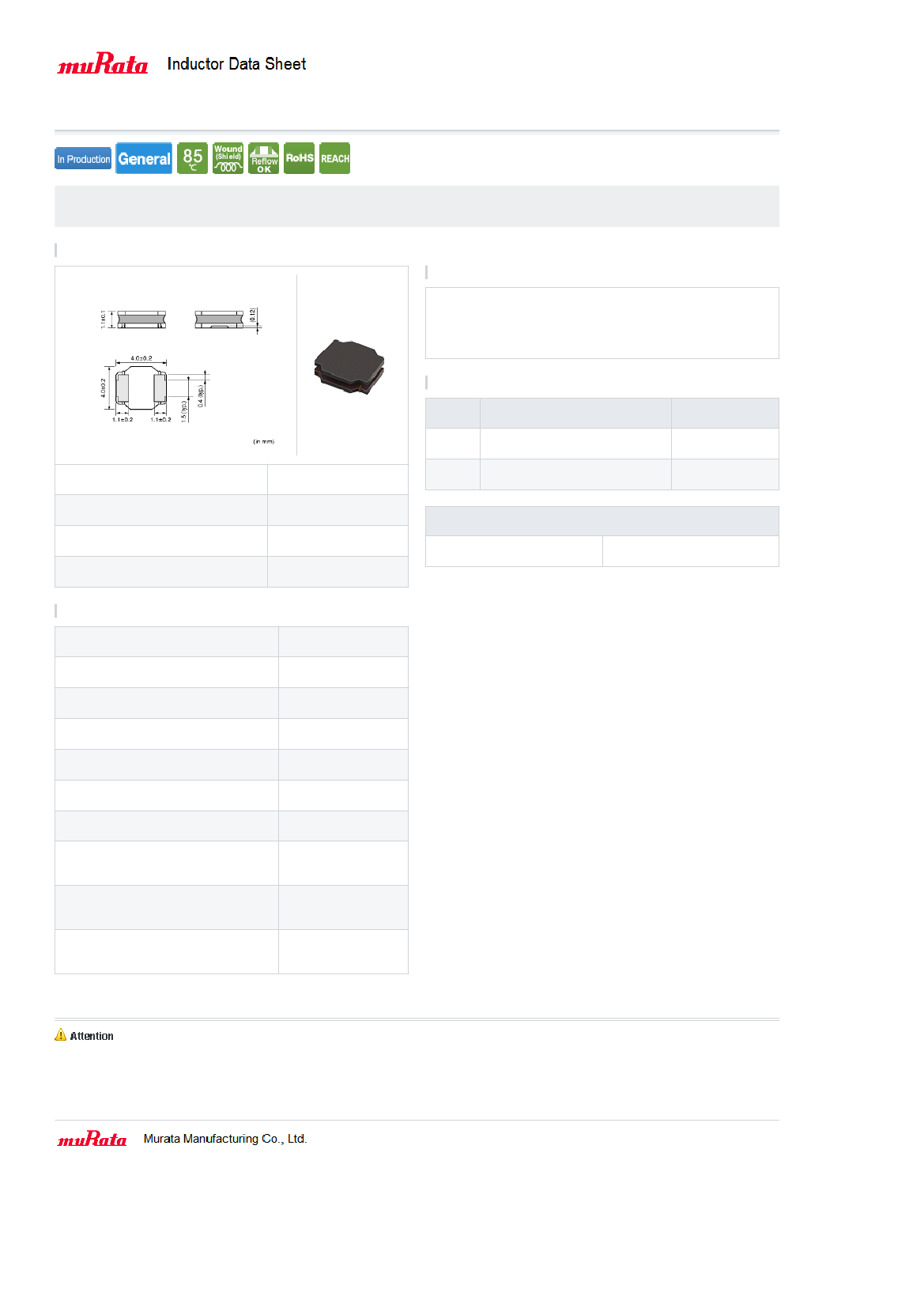

Preview

Download Datasheet

View All

LQH44PN3R3MJ0#

# indicates a package specification code.

< List of part numbers with package codes >

LQH44PN3R3MJ0L , LQH44PN3R3MJ0K

Shape

Notes

When applied Rated current to the Products, Inductance will be within ±30% of

initial Inductance value.

When applied Rated current to the Products , self temperature rise shall be limited

to 40℃ max.

Keep the temperature（ambient temperature plus self-generation o½ heat)

under 125℃

References

Packaging

code

Specifications

φ180mm Embossed taping

φ330mm Embossed taping

Minimum quantity

1000

3500

L size

W size

T size

Size code in inch (mm)

4.0 ±0.2mm

Mass (Typ.)

1.1 ±0.1mm

1 piece

1515 (4040)

0.070g

Specifications

Inductance

Inductance test frequency

Rated current (Isat) (Based on Inductance change)

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Avg. of DC resistance

Self resonance frequency (min.)

Operating temperature range (Self-temperature rise

is included)

Operating temperature range (Self-temperature rise

is not included)

3.3µH ±20%

100kHz

900mA

1000mA

0.106Ω

0.088Ω±20%

55MHz

-40∼125℃

-40∼85℃

Class of magnetic shield

Magnetic shield of magnetic

powder in resin

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2016/04/21
