SMA Male to SMA Male Right Angle Cable
Using PE-086FLEX Coax, RoHS
RF Cable Assemblies - PE3CA1040
Configuration
• Connector 1: SMA Male
• Connector 2: SMA Male Right Angle
• Cable Type: PE-086FLEX
Features
• Design operates to 26 GHz
• Shielding effectivity > 90dB
• One time minimum bend radius: 0.24 inch
Applications
• High Performance RF equipment
interconnect
.
• Flexible in cabinet or in the rack
requirements
• Inside the box RF routing
• General purpose lighter duty lab
use
Description
These new high performance flexible cables are made using our PE-086FLEX coax and our new low profile connectors. The
high performance flexible design is well suited for connecting RF devices in rack-mount systems, inside RF equipment and for
general lab hookup where a more expensive test cable is not required. These cables are similar to the PE30X series which
have retractable coupling nuts and thick wall SMA connectors. The heavier duty PE35X test series cables have similar per-
formance, but include a heavy duty strain relief mechanism and extra booting material as well as a thick wall SMA connector
to increase the ruggedness of the PE35X cables for use in more demanding test environments.
PE-086FLEX is a flexible cable alternate to Semi Rigid coax and has a solid PTFE resulting in a 69.5% phase velocity. The
smooth wall formed by the Braid over Spiral Ribbon design allows for a flexible cable that has similar performance to a solid
wall 086 Semi Rigid (RG405) cable.
Electrical Specifications
Description
Frequency Range
VSWR
Return Loss
Velocity of Propagation
RF Shielding
Group Delay
Capacitance
Operating Voltage (AC)
.
90
1.47 [4.82]
29.4 [96.46]
250
15.56
69.5
Minimum
DC
Typical
Maximum
26
1.4:1
Units
GHz
dB
%
dB
ns/ft [ns/m]
pF/ft [pF/m]
Vrms
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male to SMA Male Right Angle Cable Using PE-086FLEX Coax, RoHS
PE3CA1040
PE3CA1040 REV 1.0
1
SMA Male to SMA Male Right Angle Cable
Using PE-086FLEX Coax, RoHS
RF Cable Assemblies - PE3CA1040
Specifications by Frequency
Description
Frequency
Insertion Loss
VSWR
Power Handling
.
F1
3
0.6
[1.97]
1.08:1
81
F2
6
0.86
[2.82]
1.12:1
50
F3
12
1.22
[4]
1.2:1
40
F4
18
1.52
[4.99]
1.3:1
33
F5
26
1.86
[6.1]
1.4:1
26
Units
GHz
dB/ft
[dB/m]
Watts
Mechanical Specifications
Cable Assembly
.
Connection Type
One Time Minimum Bend Radius
Repeated Minimum Bend Radius
Cable
Cable Type
Impedance
Inner Conductor Type
Inner Conductor Material and Plating
Dielectric Type
Number of Shields
Shield Layer 1
Shield Layer 2
Outer Conductor 1 Material and Plating
Outer Conductor 2 Material and Plating
Jacket Material
Jacket Diameter
In-Series
0.23 in [5.84 mm]
0.78 in [19.81 mm]
PE-086FLEX
50 Ohms
Solid
Copper Clad Steel, Silver
PTFE
2
Silver Plated Copper Tape
Silver Plated Copper Braid
Silver Plated Copper Tape
Silver Plated Copper Braid
FEP
0.104 in [2.64 mm]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male to SMA Male Right Angle Cable Using PE-086FLEX Coax, RoHS
PE3CA1040
PE3CA1040 REV 1.0
2
SMA Male to SMA Male Right Angle Cable
Using PE-086FLEX Coax, RoHS
RF Cable Assemblies - PE3CA1040
Connectors
Description
Type
Impedance
Connection Method
Mating Cycles
Contact Material and Plating
Dielectric Type
Coupling Nut Material and Plating
Hex Size
Body Material and Plating
.
Connector 1
SMA Male
50 Ohms
Standard
500
Brass, Gold
PTFE
Passivated Stainless Steel
5/16 Inch
Stainless Steel, Gold
Connector 2
SMA Male Right Angle
50 Ohms
Standard
500
Brass, Gold
PTFE
Passivated Stainless Steel
5/16 Inch
Stainless Steel, Gold
Environmental Specifications
Temperature
Operating Range
-40 to +150 deg C
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
•
Values at 25°C, sea level.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male to SMA Male Right Angle Cable Using PE-086FLEX Coax, RoHS
PE3CA1040
PE3CA1040 REV 1.0
3
SMA Male to SMA Male Right Angle Cable
Using PE-086FLEX Coax, RoHS
RF Cable Assemblies - PE3CA1040
How to Order
Part Number Configuration:
PE3CA1040
|
|
-
xx
|
|
uu
|
Unit of Measure:
cm = Centimeters
<blank> = Inches
Length
Base Number
|
|
Example:
PE3CA1040-12 = 12 inches long cable
PE3CA1040-100cm = 100 cm long cable
|
|
SMA Male to SMA Male Right Angle Cable Using PE-086FLEX Coax, RoHS from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male to SMA Male Right Angle Cable Using PE-086FLEX Coax, RoHS
PE3CA1040
URL:
http://www.pasternack.com/sma-male-sma-male-pe-086flex-cable-assembly-pe3ca1040-p.aspx
PE3CA1040 REV 1.0
4
SMA Male to SMA Male Right Angle Cable Using PE-086FLEX Coax, RoHS
PE3CA1040

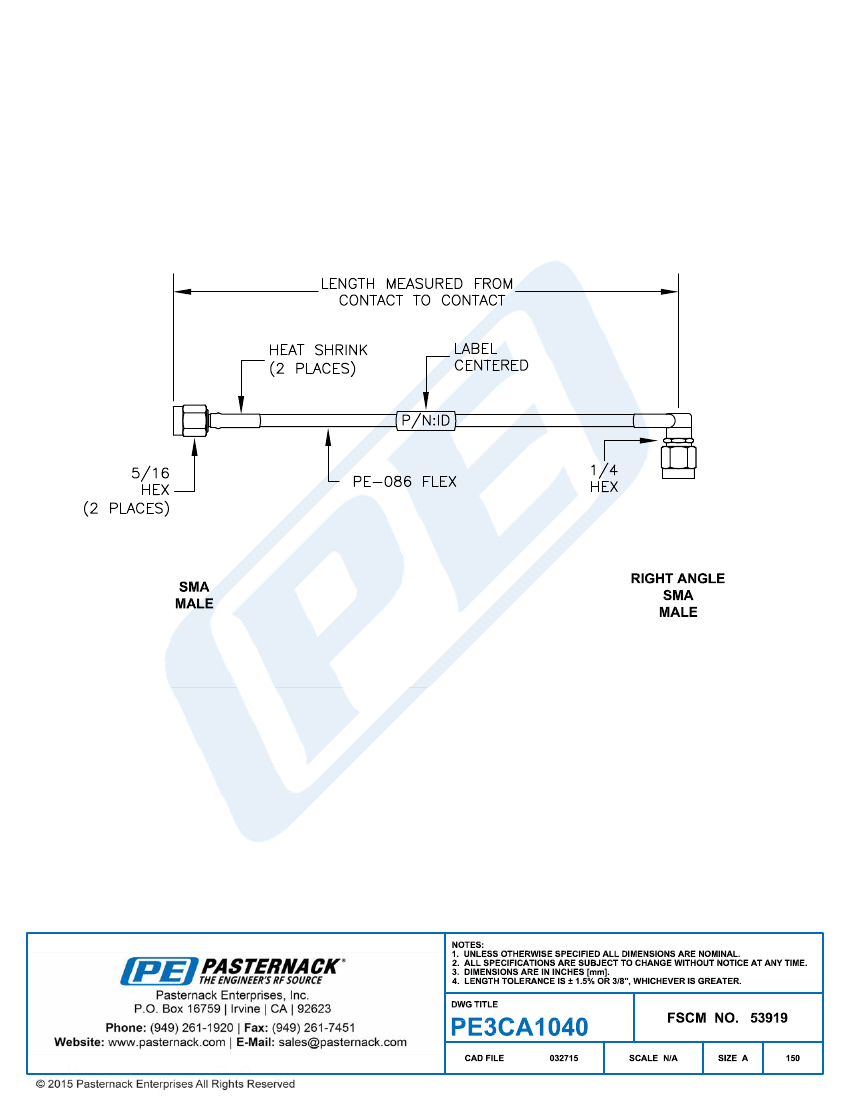

CAD Drawing
PE3CA1040 REV 1.0
5
