BF025-18A-B-0400-0300-0800-N-G datasheet, PDF

Datasheet> All Categories > The connector> The connector> BF025-18A-B-0400-0300-0800-N-G

BF025-18A-B-0400-0300-0800-N-G: DescriptionBoard Stacking Connector, 18 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator,; CategoryThe connector The connector; File Size145KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BF025-18A-B-0400-0300-0800-N-G Overview

Board Stacking Connector, 18 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator,

BF025-18A-B-0400-0300-0800-N-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7122808747
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.079 inch
subject depth	0.315 inch
body length	1.417 inch
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	100 Cycles
maximum insertion force	2.0016 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
Plug contact pitch	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	18
Evacuation force-minimum value	.199882 N

Preview

Download Datasheet

View All

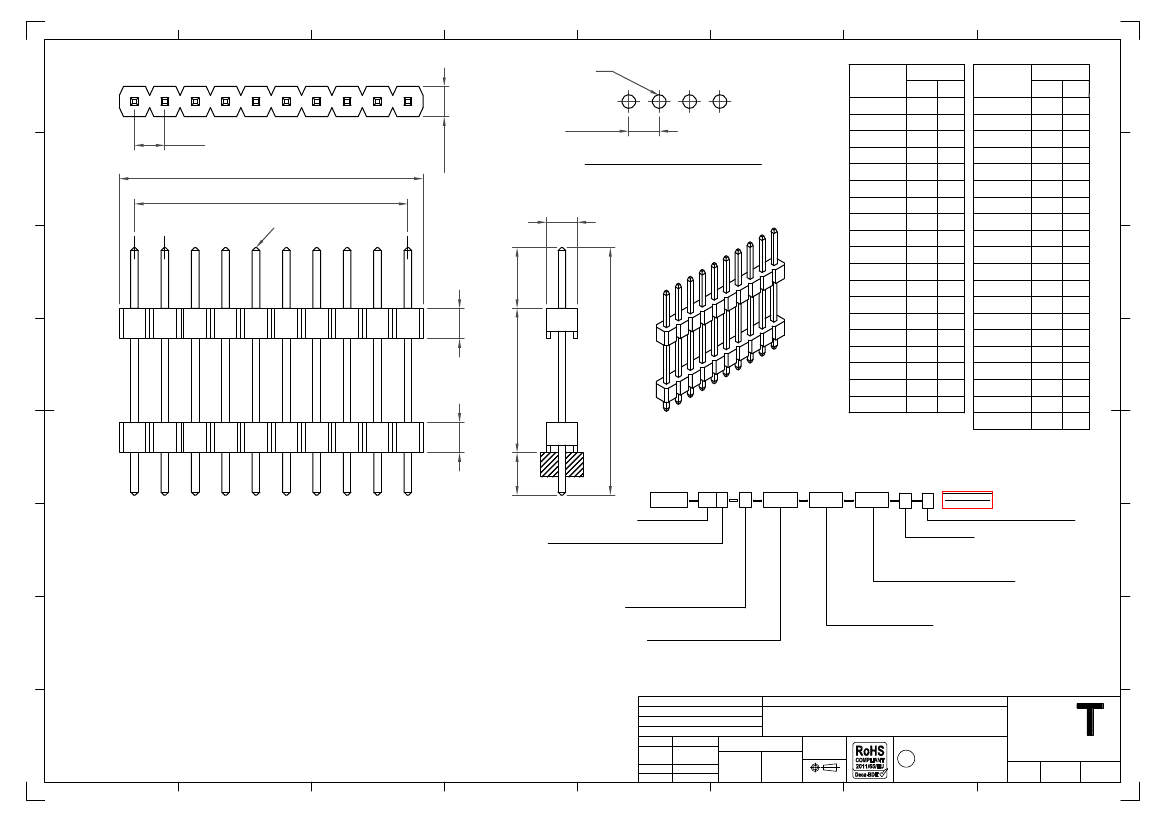

Ø0.9

No. of

Contacts

Dimensions

2.0

4.0

6.0

8.0

10.0

12.0

14.0

16.0

18.0

20.0

22.0

24.0

26.0

28.0

30.0

32.0

34.0

36.0

38.0

4.0

6.0

8.0

10.0

12.0

14.0

16.0

18.0

20.0

22.0

24.0

26.0

28.0

30.0

32.0

34.0

36.0

38.0

40.0

No. of

Contacts

Dimensions

40.0

42.0

44.0

46.0

48.0

50.0

52.0

54.0

56.0

58.0

60.0

62.0

64.0

66.0

68.0

70.0

72.0

74.0

76.0

78.0

42.0

44.0

46.0

48.0

50.0

52.0

54.0

56.0

58.0

60.0

62.0

64.0

66.0

68.0

70.0

72.0

74.0

76.0

78.0

80.0

2.00

B ±0.38

A ±0.25

0.50 Sq pin

Recommended PCB Layout

2.00

C±0.2

E±0.2

5.2 min.

D±0.2

Ordering Grid

BF025

No. of Contacts

02 to 40

XX X

XXXX

Request Samples

and Quotation

Specifications

规格

Material

物料

Insulator material

绝缘½物料

Standard

标准物料

Polyamide

聚醯胺

, Nylon 6T, UL 94V-0

Options

可选物料

Polyester

聚酯

, LCP, UL 94V-0

Polyester

聚酯

, PBT, UL 94V-0

Contact Terminal

接触端子

: Copper Alloy

Plating

电镀

See Ordering Grid

Electrical

电气

Current Rating

电流额定值

: 2 Amp per pin

Contact Resistance

接触电阻值

: 20 m

Ω

max.

Insulation Resistance

绝缘电阻值

: 1000 M

Ω

min.

Dielectric Withstand Voltage

寒耐电压

: 500 V AC

Mechanical & Environmental

机械

环境

Operating Temperature

工½温度

: -40°C to +105°C

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact Area/Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Insulator Height "H"

B = 2.00mm

(Standard)

A = 1.50mm

Dimension C

(1/100mm) (Post Height)

0400 = 4.00mm

(Standard)

Or specify Custom Post Height

eg. 0250 = 2.50mm

Insulator Material

N = Nylon 6T

(Standard)

P = PBT

L = LCP

Packing Options

G = Plastic Box

(Standard)

D = Tube

E = Tube with Cap

Dimension E

(1/100mm) (Stack Height)

0800 = 8.00mm

(Standard)

Or specify Custom Tail Length

eg. 0450 = 4.50mm (Minimum 3.00mm)

Soldering process

可焊性

Nylon 6T (Standard

标准物料

) -

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

:230°C for 5-10 sec.

Manual solder

人工焊接

: 350°C for 3-5 sec

PBT (Option

可选物料

) - Manual solder

人工焊接

: 330°C for 3-5 sec.

(not suitable for hi-temp process

不适合高温处理

)

Dimension D

(1/100mm) (Tail Length)

0300 = 3.00mm

(Standard)

Or specify Custom Tail Length

eg. 0280 = 2.80mm

LCP (Option

可选物料

) -

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

:250°C for 5-10 sec.

Manual solder

人工焊接

: 350°C for 3-5 sec

Mates with

配套之母座

(subject to pin length):

BF070 BF085 BF086 BF087 BF088

Part Number

Product Description

BF025

Drawing Date

25th October 2007

2.00mm Pitch Elevated Pin Header

Single Row, Through Hole, Straight

Tolerances

(Except as Noted)

Length

Angle

BF090

Detail

Revision

Date

AJO

BF025

C PCN

07/03/17

X.° ± 5°

X. ± 0.30

X.X° ± 2°

X.X ± 0.20

X.XX ± 0.15 X.XX° ± 1°

X.XXX ± 0.10 X.XXX° ± 0.5°

Units:

Metric (mm)

3rd Angle Projection

This drawing is confidential and

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

Drawn By

LYH

www.gct.co

Not to

Scale

Sheet No.

1/1
