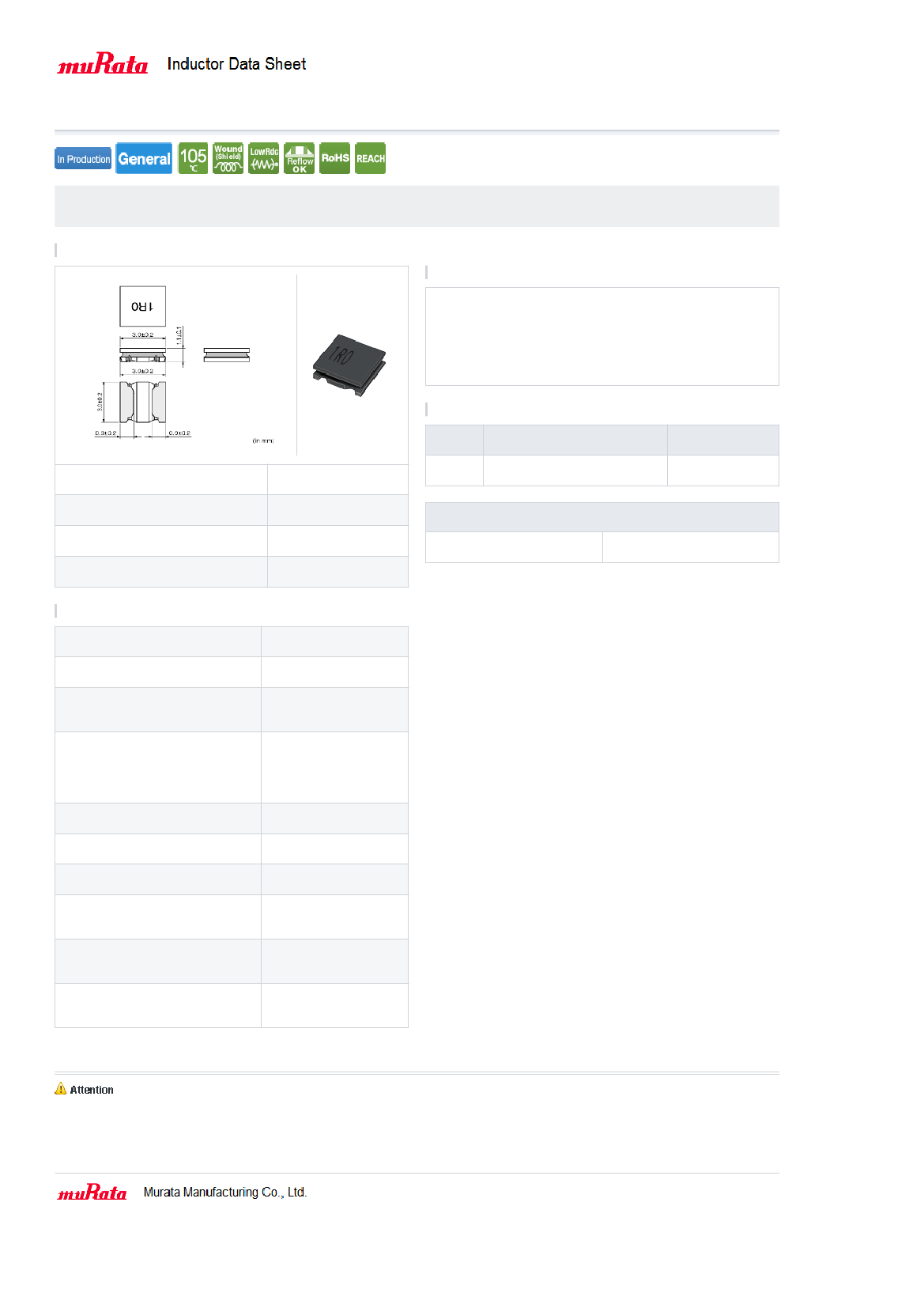

LQH3NPN3R3MJR

Description
GENERAL PURPOSE INDUCTOR
CategoryThe sensor
File Size79KB,2 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Download Datasheet Parametric View All

LQH3NPN3R3MJR Overview

GENERAL PURPOSE INDUCTOR

LQH3NPN3R3MJR Parametric

Parameter NameAttribute value
stateActive
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer SeriesLQH3NPN3R3MJR
LQH3NPN3R3MJR#
# indicates a package specification code.
< List of part numbers with package codes >
LQH3NPN3R3MJRL
Shape
Notes
When applied Rated current to the Products, Inductance will be within ±30% of
initial inductance value range.
Keep the temperature (ambient temperature plus self-generation of heat) under
125℃.
When applied Rated current to the Products, temperature rise caused by
self-generated heat shall be limited to 40℃ max.(Ambient temperature 85℃).
When applied Rated current to the Products, temperature rise caused by
self-generated heat shall be limited to 20℃max.(Ambient temperature 85℃ to
105℃).
References
Packaging
code
Specifications
φ180mm Embossed taping
L size
W size
T size
Size code in inch (mm)
3.0 ±0.2mm
3.0 ±0.2mm
1.1 ±0.1mm
1212 (3030)
Minimum quantity
2000
Mass (Typ.)
1 piece
0.045g
Specifications
Inductance
Inductance test frequency
Rated current (Isat) (Based on Inductance
change)
3.3µH ±20%
1MHz
1350mA
Rated current (Itemp) (Based on Temperature
rise)
1700mA(Ambient temperature
85℃)
750mA(Ambient temperature
105℃)
0.114Ω
0.095Ω±20%
45MHz
Max. of DC resistance
Avg. of DC resistance
Self resonance frequency (min.)
Operating temperature range (Self-temperature
rise is included)
Operating temperature range (Self-temperature
rise is not included)
-40∼125℃
-40∼105℃
Class of magnetic shield
Magnetic shield of magnetic
powder in resin
1 of 2

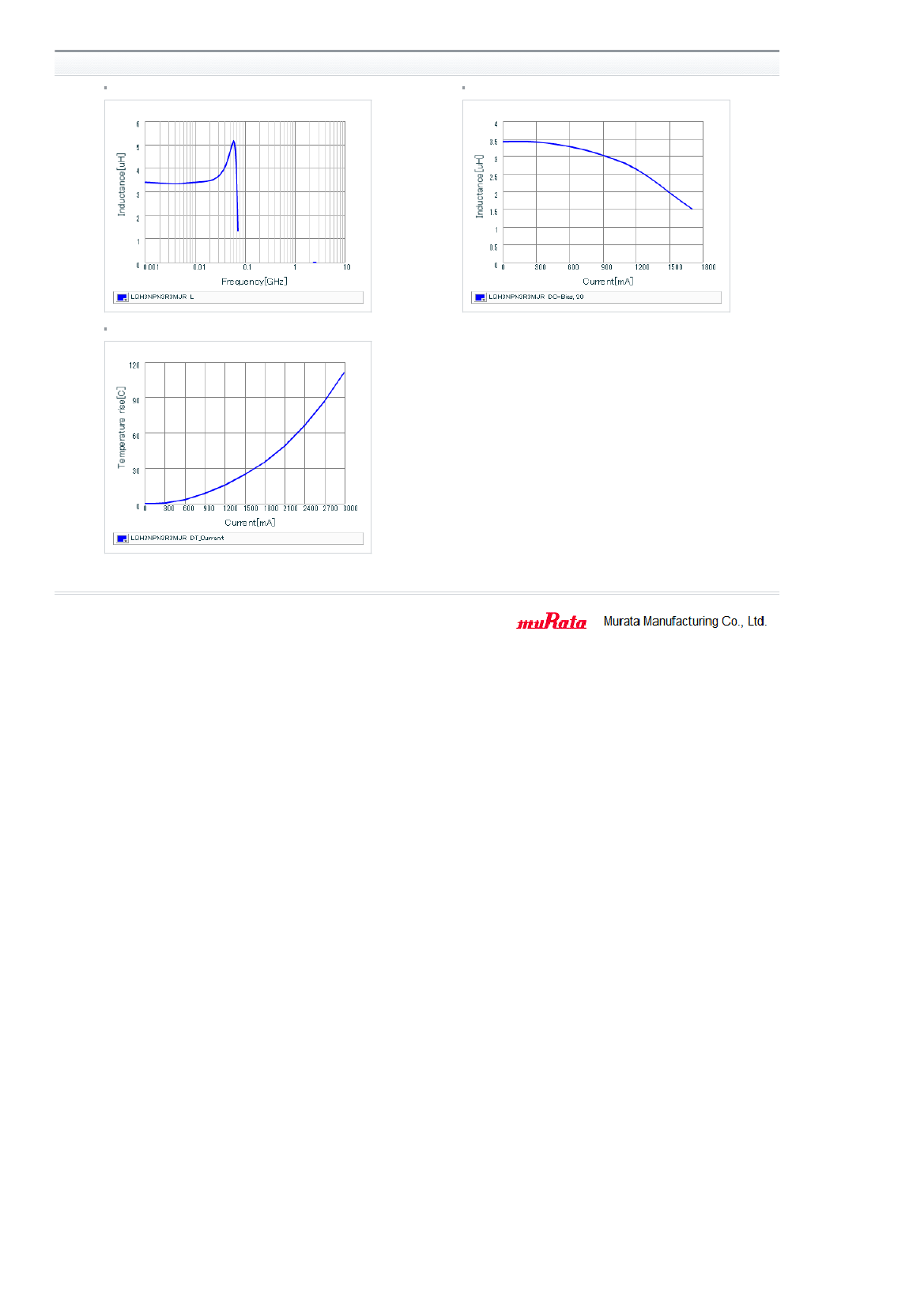

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : http://www.murata.com/
Last updated: 2016/04/21
