BG303-04-A-0300-L-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> BG303-04-A-0300-L-D

BG303-04-A-0300-L-D: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Natural Insulator, ROHS COMPLIANT; CategoryThe connector The connector; File Size157KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG303-04-A-0300-L-D Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Natural Insulator, ROHS COMPLIANT

BG303-04-A-0300-L-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1233215591
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.098 inch
subject depth	0.127 inch
body length	0.4 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	BG303
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

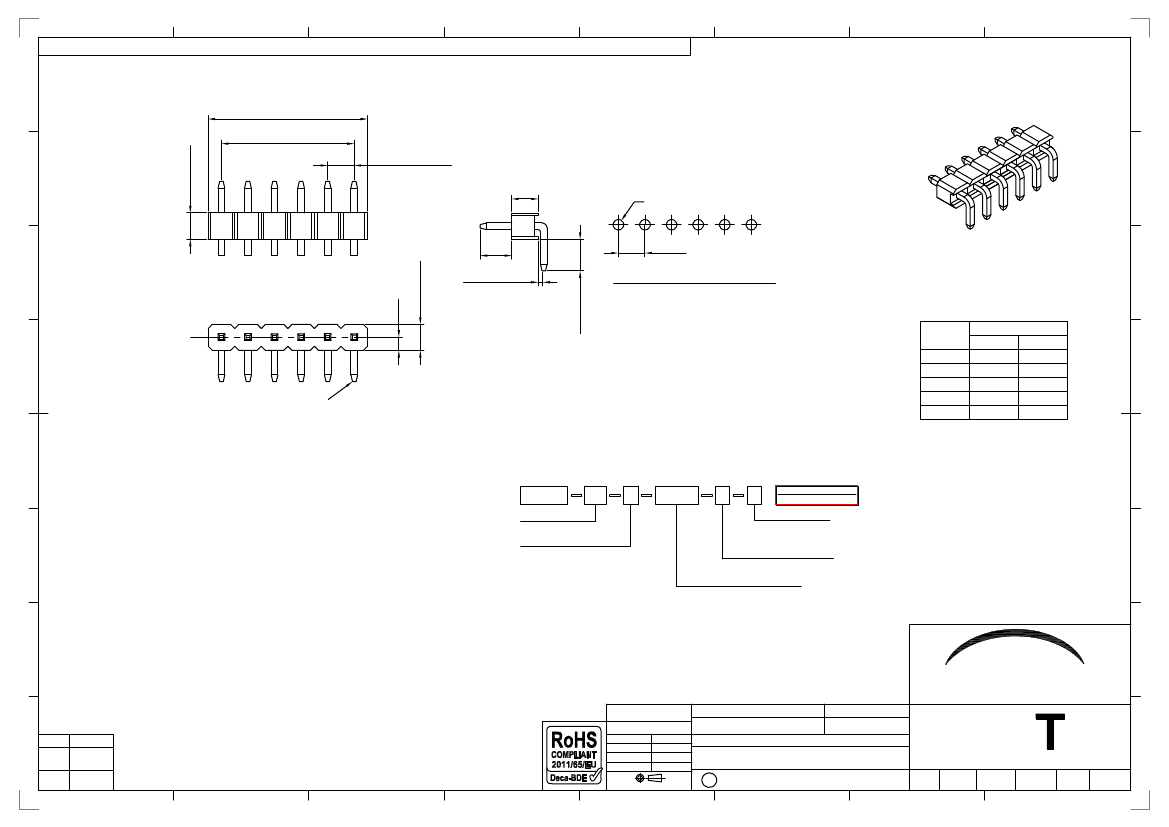

Global Connector Technology Ltd. - BG303: 2.54mm PITCH PIN HEADER, SINGLE ROW, THROUGH-HOLE, HORIZONTAL, NATURAL LCP

A ±0.50

B ±0.20

2.50±0.10

2.54 (Typ.)±0.10

2.54

Ø1.02

D±0.2

2.50±0.10

2.54

(Non-Accum)

0.68±0.25

3.00±0.20

RECOMMENDED PCB LAYOUT

General Tolerance: ±0.05

DIMENSIONS

5.08

7.62

10.16

12.70

15.24

2.54

5.08

7.62

10.16

12.70

1.25

CONTACTS

PIN 0.64 SQ(Typ.)

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 3 amp

INSULATION RESISTANCE

绝缘电阻值

: 1000 MΩ min.

DIELECTRIC WITHSTANDING

耐电压

: 500V AC/MINUTE

CONTACT RESISTANCE

接触电阻值

: 20 mΩ max.

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: COPPER ALLOY

PLATING

电镀

: CONTACT AREA

接触面积

: 30µ”-50µ” NICKEL UNDERPLATE, FOR PLATING

SEE ORDERING GRID.

INSULATOR MATERIAL

绝缘½物料

: POLYESTER

聚酯

, LCP, NATURAL, UL94V-0

SOLDERING PROCESS

可焊性

WAVE

波峰焊

: 250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

USE BG302 FOR PERFECT HORIZONTAL MATING. (Standard mating pin length 3.00mm)

配套卧式母座为

BG300 (

标准插入针长

3.00mm)

NOTES

备注

STANDARD BLACK VERSION OF BG303 IS BG075

BG303

的标准黑色塑胶版本为料号为

BG075

Ordering Grid

BG303

No. of Contacts

02 to 06

0300

REQUEST SAMPLES

AND QUOTATION

Contact Plating

A = Gold Flash All Over

(Other plating options available on request)

Packing Options

G = Plastic Box

(Standard)

D = Tube

Insulator Material

L = LCP (Natural)

Dimension D (Post Length)

0300 = 3.00mm

(Standard)

Or Specify Dimension D

eg 0250 = 2.50mm

Tolerances

(Except as noted)

White Lite

Part Number:-

Date:-

Dimensions in mm

BG303

Description:-

07 DEC 11

DETAIL

REV

DATE

DRAWING

RELEASE

07/12/11

X.X ± 0.30

X.XX ± 0.20

2.54mm PITCH PIN HEADER, SINGLE ROW,

THROUGH-HOLE, HORIZONTAL, NATURAL LCP

Scale

NTS

Sheet No.

E & OE

1/1

www.gct.co

Drawn by

Third Angle Projection

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Material

See Note
