Part Number:
Status:
Overview:
Description:
0850039050
Active
din_41612
2.54mm (.100") Pitch DIN 41612 C Style Male Header, Right Angle, Through Hole, 63
Circuits, No Mounting Clips, No Flux Proof, Void Pin A22, Lead free
Documents:
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Comments
Component Type
Overview
Product Name
Style
Backplane Connectors
85003
Backplane
No Mounting Clips. No Flux Proof
PCB Header
din_41612
IEC 603-2/DIN 41612
C
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
63
96
First-Mate-Last-Break Contacts at: A:a1-a15,a18-
a21,a23-a32; C:c1- c15,c18-c32-. First-Mate-Last-Break
Contacts at:Z:a16-a17;X:c16-c17 . Void Pin at A:a22
Gray
400
Yes
No
Yes
Brass
Gold
Tin
Polyester
16
Open Pin Field
3
Right Angle
0.118 In
3.00 mm
No
Yes
0.062 In
1.60 mm
Tray
0.100 In
2.54 mm
0.100 In
2.54 mm
32
0.80
98
2.5
Yes
No
-55°C to +125°C
Search Parts in this Series
85003Series
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Through Hole
Electrical
Current - Maximum per Contact
Data Rate
Voltage - Maximum
2.5A
622.0 Mbps
250V AC (RMS)
Material Info
Reference - Drawing Numbers
Packaging Specification

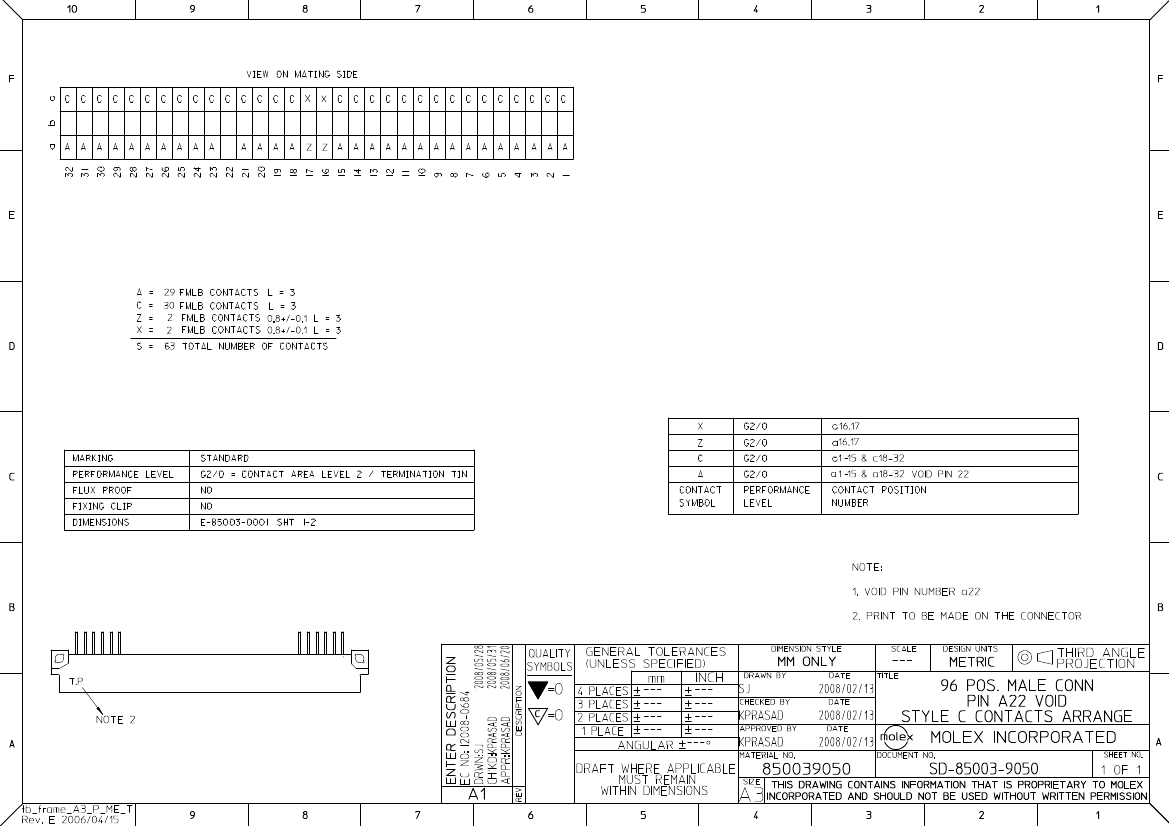

Sales Drawing
PK-85003-001
SD-85003-9050
