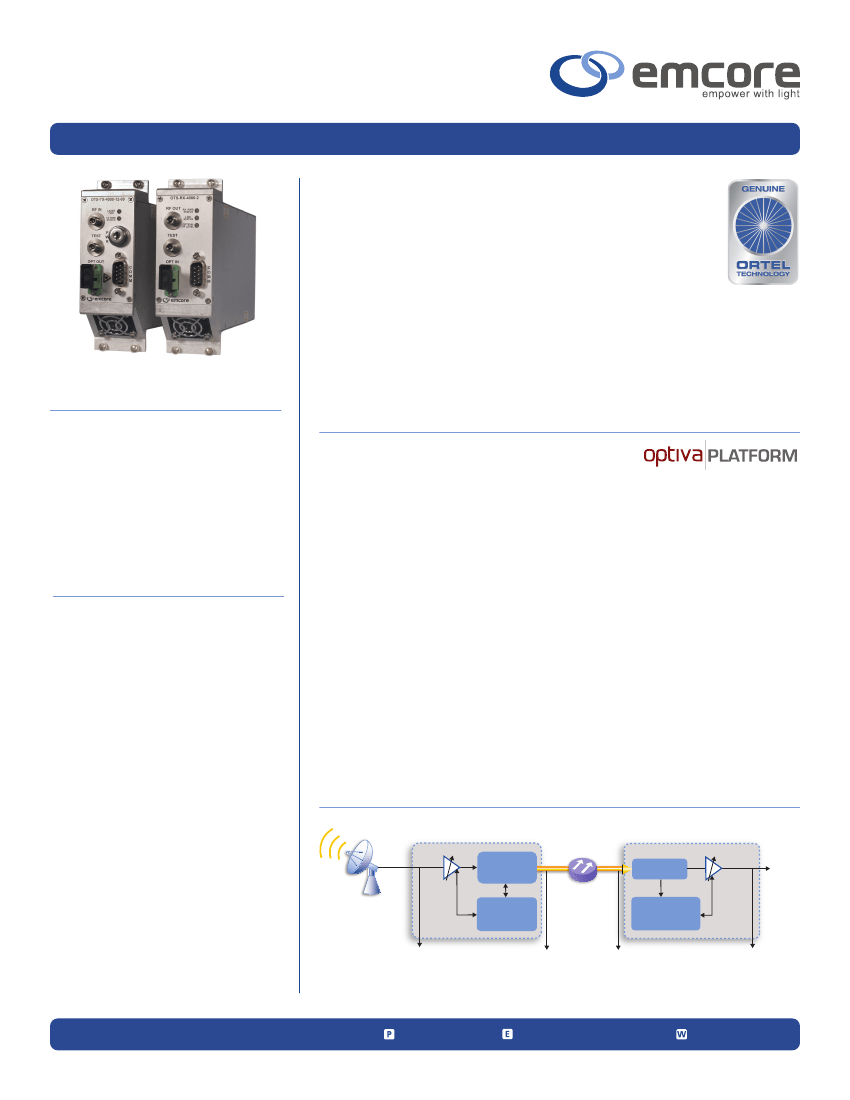

Optiva OTS-2 C-Band
RF Fiber Optic Links
DATASHEET | OCTOBER 2013
SATCOM
Performance Highlights
Parameter
Frequency Range
RF Input Power
Min
3.400
5.850
-
Typical
-
-
-
Max
4.200
6.725
5
*
-15
^
Wavelength
Optical Output Power
Operating Temperature Range
*Tx: RF amp 15 dB gain, attenuation range 0 to 15 dB
^Tx: RF amp 35 dB gain, attenuation range 0 to 15 dB
-
9
-10
1550
10
-
-
11
50
nm
dBmo
°
C
Units
GHz
GHz
dBm

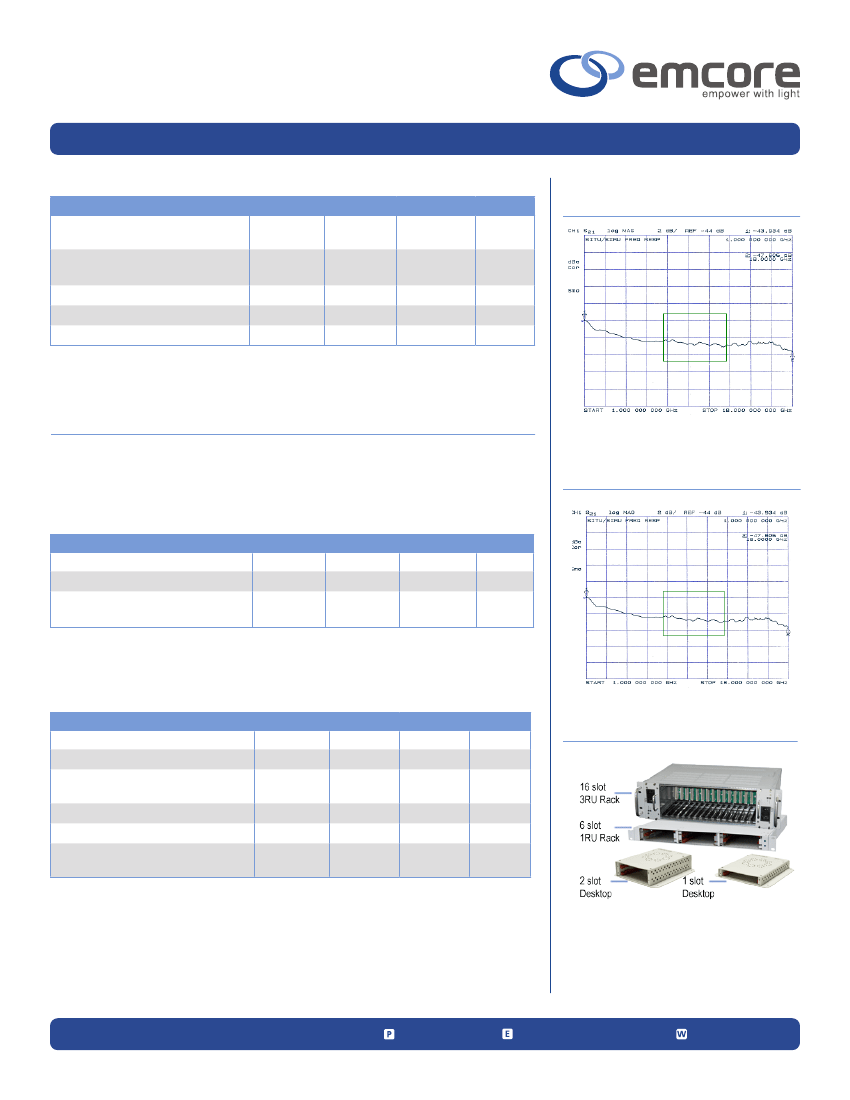

Typical C-Band Downlink S21
Frequency Response
Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings can cause permanent damage
to the device. These are absolute stress ratings only. Functional operation of the
device is not implied at these or any other conditions in excess of those given in
the operational sections of the datasheet. Exposure to absolute maximum ratings
for extended periods can adversely affect device reliability.
Information contained herein is deemed to be reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specifications at any time without notice.
Optiva OTS-2 C-Band
RF Fiber Optic Links
DATASHEET | OCTOBER 2013
SATCOM
Transmitter & Receiver Optical Characteristics
Parameter
Wavelength
Optical Output Power
Connector Return Loss
Optical Connector Type
Receiver Optical Input Power
Receiver Responsivity
Symbol
l
P
L
-
-
Condition
-
Min
1530
9
40
-
-
0.7
Typical
1550
10
-
-
-
-
Max
1562
11
-
-
+10
-
Units
nm
dBmo
dB
-
dBmo
A/W
-
-
SC/APC
-
-
P
in
-
Note: In order to prevent reflection-induced distortion degradation, the laser should be connected to an optical cable having a return loss of at least 55 dB for discrete reflections
and 30 dB for distributed reflections.
C-Band Transmitter & Receiver RF Characteristics
Parameter
Operational Bandwidth
RF Input Impedance
RF Return Loss
RF Connectors
RF Test Point Reference Value, Relative to RF input or RF output
*
-
Condition
-
Min
3.400
5.850
-
-
Typical
-
-
50
-
SMA Female
Max
4.200
6.725
-
-15
Units
GHz
GHz
Ω
dB
-
-
-18
-20
-22
dB
*Test point performance beyond the stated frequency range is provided; only the test point reference value tolerance may increase beyond the above stated +/- 1 dB
DC Power Consumption - Max
Module Type
Transmitter
Receiver
Input Voltage (VDC)
+12
+12
Max Current (@+70°C)
1A
750 mA
Network Management
All modules are compliant with SNMP v.1 supported through the Optiva NMS card (OPV-CTLR-IC)
Information contained herein is deemed to be reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specifications at any time without notice.
Optiva OTS-2 C-Band
RF Fiber Optic Links
DATASHEET | OCTOBER 2013
SATCOM
Link Performance - C-Band Downlink
Parameter
RF Bandwidth
Link Gain (+0 dBmo Rx optical input)
*^
Symbol
-
Condition
-
Min
3.400
0
0
20
20
12
12
7
7
-
-
101
105
-
-
Typical
-
4
4
24
24
-
-
-
-
-6
-5
-
-
-
-
Max
4.200
-
-
-
-
-
-
-
-
-
-
-
-
0.5
1.5
Units
GHz
dB
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
dB-Hz
2/3
dB-Hz
2/3
dB
dB
G
G
@ 3.400 GHz
@ 4.200 GHz
@ 3.400 GHz
@ 4.200 GHz
@ 3.400 GHz
@ 4.200 GHz
@ 3.400 GHz
@ 4.200 GHz
@ 3.400 GHz
@ 4.200 GHz
@ 0 dBmo Rx Optical Input
@ +10 dBmo Rx Optical Input
Any 36 MHz
Any 500 MHz
Link Gain (+10 dBmo Rx optical input)
*^
Noise Figure (+0 dBmo Rx optical input)
^
Noise Figure (+10 dBmo Rx optical input)
^
Input IP3
^
Spurious Free Dynamic Range
^
Gain Variation
G
G
NF
NF
NF
NF
IIP3
IIP3
SFDR
SFDR
-
-
*Receiver RF output will change 2 dB for each 1 dB of Rx optical input power level change
^Performance based on OTS-2T/S5 with RF Amp gain of 35 dB, OTS-2R/S5 with RF Amp gain of 15 dB
Link Performance - C-Band Uplink
Parameter
RF Bandwidth
Link Gain (+0 dBmo Rx optical input)
*^
Symbol
-
Condition
-
Min
5.850
-2
-2
18
18
12
12
7
7
-
-
101
105
-
-
Typical
-
2
2
22
22
-
-
-
-
-6
-5
-
-
-
-
Max
6.725
-
-
-
-
-
-
-
-
-
-
--
--
0.5
1.5
Units
GHz
dB
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
dB-Hz
2/3
dB-Hz
2/3
dB P-P
dB P-P
G
G
@ 5.850 GHz
@ 6.725 GHz
@ 5.850 GHz
@ 6.725 GHz
@ 5.850 GHz
@ 6.725 GHz
@ 5.850 GHz
@ 6.725 GHz
@ 5.850 GHz
@ 6.725 GHz
@ 0 dBmo Rx Optical Input
@ +10 dBmo Rx Optical Input
Any 36 MHz
Any 500 MHz
Link Gain (+10 dBmo Rx optical input)
*^
Noise Figure (+0 dBmo Rx optical input)
^
Noise Figure (+10 dBmo Rx optical input)
^
Input IP3
^
Spurious Free Dynamic Range
^
Gain Variation
G
G
NF
NF
NF
NF
IIP3
IIP3
SFDR
SFDR
-
-
*Receiver RF output will change 2 dB for each 1 dB of RX optical input power level change
^Performance based on OTS-2T/S5 with RF Amp gain of 35 dB, OTS-2R/S5 with RF Amp gain of 15 dB
Information contained herein is deemed to be reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specifications at any time without notice.
Optiva OTS-2 C-Band
RF Fiber Optic Links
DATASHEET | OCTOBER 2013
SATCOM
Ordering Information: Transmitter
Transmitter
OTS-2T / S5-VVVV-WW-10-XX-12-YY-Z
When ordering replace “VVVV” with one of the C-Band Frequency Options
When ordering replace “WW” with one of the ITU Channel Options
When ordering replace “XX” with one of the Optical Connector Options
When ordering replace “YY” with one of the Variable Gain RF Amplifier Options
When ordering replace “Z” with one of the Enclosure Options
