510-6AS3BA: DescriptionCircular DIN Connector, 6+6 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size362KB，1 Pages; ManufacturerAMCO Tec International Inc

Download Datasheet Parametric View All

510-6AS3BA Overview

Circular DIN Connector, 6+6 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle

510-6AS3BA Parametric

Parameter Name	Attribute value
Objectid	304403306
Reach Compliance Code	unknown
ECCN code	EAR99
body width	1.118 inch
subject depth	0.783 inch
body length	0.551 inch
Body/casing type	RECEPTACLE
Connector type	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact style	RND PIN-SKT
DIN compliance	YES
Insulator color	BLACK
Manufacturer's serial number	510
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	2
Plating thickness	5u inch
polarization key	POLAR PIN POSITION
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN/LEAD OVER COPPER
Shell material	BRASS
Termination type	SOLDER
Total number of contacts	12

Preview

Download Datasheet

View All

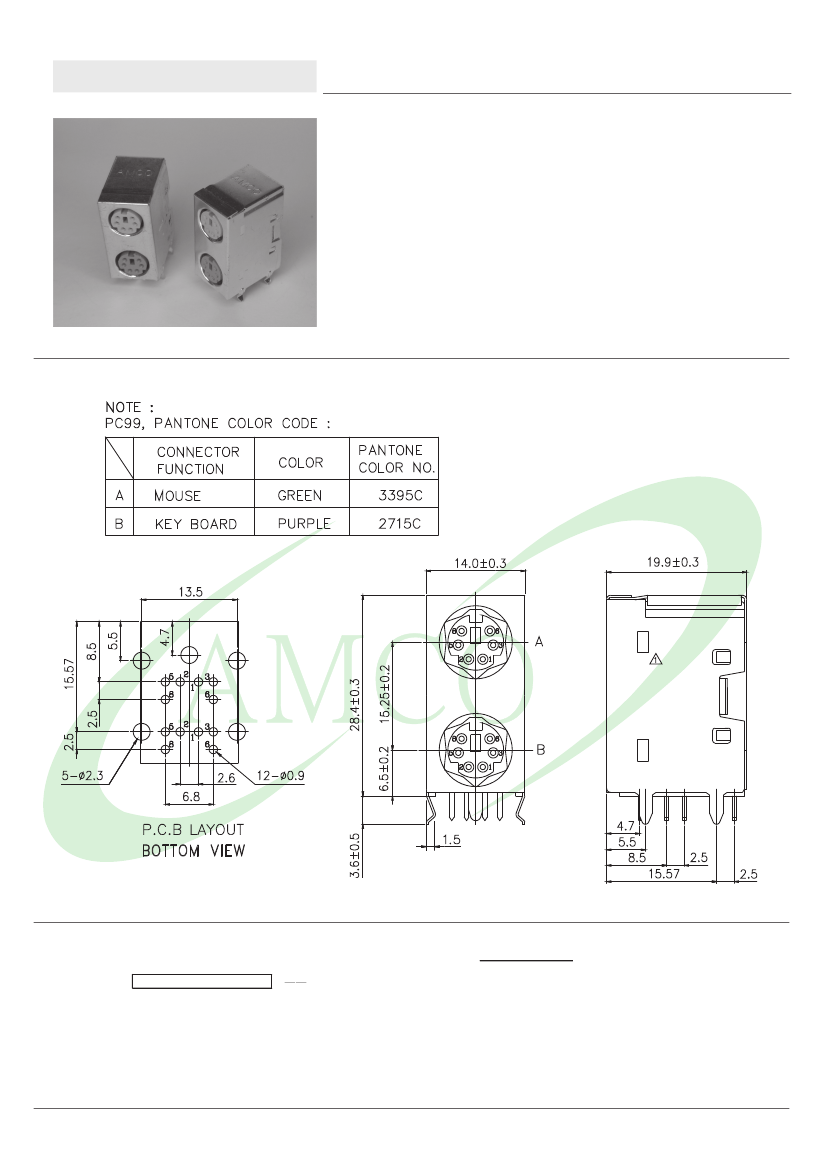

510/Mini Din

MATERIAL :

1. HOUSING : THERMOPLASTIC PBT UL 94V-0.

2. CONTACT : PHOSPHOR BRONZE.

3. SHIELD : BRASS.

FINISH :

1. CONTACT : UNDER PLATED 50u" MIN. NICKEL

ALL OVER 100u" MIN. TIN/LEAD IN

SOLDERING AREA SELECTIVE GOLD

PLATED IN CONTACT AREA.

2. SHIELD : 100u" Sn/Pb(90/10) WITH 50u"

COPPER ALLOY UNDERPLATE.

510. MINI DIN

Series No.

DUAL TYPE

FULL SHIELD

TWO-PIECE SHIELD

No. of

Contacts

Mounting Type

(Center Ground / Shield Ground)

A TYPE: With a / With d

B TYPE: With a / With c

C TYPE: With b / With c

D TYPE: With b / With d

(a: Harpoon Boardlock)

(b: Keying Post)

(c: Integral Kink Boardlock)

(d: Integral Keying Boardlock)

Contact Plated

T1: TIN

G1: Gold Flash

S1: Gold Flash

Plastic

Color

B:Black

P:PC99

Branding

A:Amco Mark

N:No Mark

G2: 3u" Gold S2: 3u" Gold

G3: 5u" Gold S3: 5u" Gold

G4: 10u" Gold S4: 10u" Gold

G5: 15u" Gold S5: 15u" Gold

G6: 30u" Gold S6: 30u" Gold

(G:Full Gold)(S:Selective Gold)

AMCO TEC INTERNATIONAL INC.
